Treatment of a patient with total urinary calculi: a case report

Introduction

Urinary tract stones are a general term for stone disease in various parts of the urinary system and are common diseases of the urinary system (1). According to the location of the stone, it is divided into kidney stones, ureteral stones, bladder stones, urethra stones. The formation of this disease is closely related to environmental factors, systemic diseases and urinary system diseases (2). Typical clinical manifestations include lumbar and abdominal cramps, hematuria, or symptoms of urinary tract obstruction and infection with frequent urination, urgency, and dysuria. Total urinary calculi occur less frequently, usually accompanied by severe clinical symptoms and difficult to treat. In such cases, a surgical approach is usually used as curative treatment (3). We reported a case of total urinary calculi that passed through a series of progressive treatments and rehabilitation in our hospital. We present the following case in accordance with the CARE guideline (4).

Case presentation

A 76-year-old Chinese man with recurrent bladder stones for 7 years, recurrent dysuria with frequent urination and dysuria for 2 months as the chief complaint was admitted to our hospital. For many years, patients have been suffering from this disease, and have been hospitalized many times to relieve symptoms. The patient was unable to endure the same symptoms 7 years ago and went to the hospital for “cystolithotomy”. The above symptoms reappeared 4 years ago. He was again treated with “cystolithotomy”. One year ago, because the symptoms continued to worsen and did not relieve and emergency hospitalization, the diagnosis was “bladder stones and vesical fistula”, and he underwent “cystolithotomy + transurethral prostatectomy + bilateral double-J tube (D-J tube) implantation” treatment, it is worth mentioning that the patient has not replaced the D-J tube. In addition, the patient has a complicated past history and has been hospitalized for multiple diseases. These operations are mainly: inguinal hernia surgery, urethral rupture repair, intracranial aneurysm clipping. His family history is not remarkable.

The patient underwent abdominal computed tomography (CT) after admission (Figure 1). The results showed that: (I) bilateral kidney stones; (II) ureter D-J tube stones attachment; (III) bladder stones. Routine urianlysis shows: white blood cell (WBC) count 4,578/μL; blood biochemistry: creatinine (Cr) 140 mmol/L. The main positive sign of the patient’s admission physical examination was pain in the left kidney area. According to the results of the series of examinations and past history, the patient is currently considering the total urinary calculi with severe infection, accompanied by renal dysfunction. In addition, depending on the patient’s condition, the patient should rule out the possibility of the tumor, and we initially ruled out this possibility. Then how to treat patients in the next step is a question worth considering.

Figure 1 Abdominal computed tomographic scan of the patient.

We first carried out some basic and temporary measures to improve the patient’s symptoms. Our first treatment was to give catheterization and bilateral nephrostomy, which both led to grayish pyuria. At the same time, piperacillin tazobactam was actively used for anti-inflammatory treatment. After 1 week, the urine routine was reviewed: WBC 311.00/μL, red blood cell (RBC) count 628.00/μL, WBC 56/high power field (HPF), RBC 113/HPF, WBC+++, blood (BLD)+++.

After 3 days, the urine routine was reviewed again: WBC 534.50/μL, RBC 682.30/μL, WBC 96/HPF, RBC 123/HPF, WBC+++, BLD+++. Review of serum Cr: 112 mmol/L. In addition, bilateral nephrolithotomy drainage of about 3,600 mL of urine. As of our treatment, the patient’s condition does not seem to improve significantly.

Faced with such a complicated condition, how to treat the patient in the next step becomes a problem that plagues us. Our trouble is whether to continue anti-infective treatment or surgical treatment. If surgery is selected, is it a staged operation or a one-stage operation, what is the order of stone treatment? Consider the patient’s advanced age and general poor physical condition, the staging operation requires multiple operations with a long-time span, and patients may not be able to withstand multiple anesthesia and surgical blows. After our unanimous discussion, we fully decided to perform a surgical treatment after fully explaining our treatment plan to the patient’s family and obtaining the consent of the patient’s family. The patient underwent adequate preoperative preparation.

Bladder stones were first treated with cystoscope lithotripsy (Figure 2), and then ureteral D-J tube stones were treated with bilateral ureteroscope holmium laser lithotripsy (Figure 3). Finally, regarding the treatment of kidney stones, we considered that the kidney stones on the right side were small, so we used the right ureteroscopic holmium laser lithotripsy to treat the right side of the stone (Figure 4). Considering that the kidney stones on the left side were large, we decided to adopt the left percutaneous nephrolithotomy (PCNL) (Figure 5). The entire procedure lasted approximately 5 h and the patient returned to the ward smoothly.

Figure 2 The cystoscope lithotripsy for bladder stones.

Figure 3 Bilateral ureteroscope holmium laser lithotripsy for ureteral D-J tube stones. D-J tube, double-J tube.

Figure 4 Treatment of right kidney stone with holmium laser lithotripsy with flexible ureteroscope.

Figure 5 Percutaneous nephrolithotomy for left kidney stones.

The patient’s postoperative temperature was normal, the kidney function improved, and the symptoms disappeared. The plain film of kidney-ureter-bladder (KUB) on the 1st day after surgery showed no obvious stone residue, and the position of the bilateral D-J tube was acceptable (Figure 6). Moreover, we required the patient to go to the ground and resume normal eating on the 2nd day after the operation. The patient recovered well, and the renal drainage tube was removed on the 7th day after the operation and discharged successfully. In addition, it is worth mentioning that the composition of postoperative stones was magnum ammonium phosphate (Figure 7). The 12-month follow-up included ultrasonography examinations at 1, 2, 3, 6, 9 and 12 months postoperatively and showed that no stones formed, and no recurrence of previous symptoms.

Figure 6 The postoperative KUB. KUB, kidney-ureter-bladder.

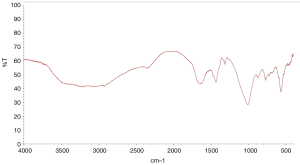

Figure 7 Stone composition analysis.

Discussion

Patients with urinary calculi in the whole course are rare, and long stay in D-J tube and chronic lower urinary tract obstruction are the two main causes of stone formation (5-7). The patient-described in this article is a typical case. D-J tubes are widely used in urology. Long-term retention in the body can form a large number of stones with the D-J tube as the core. The cause of the formation of D-J tube attached stones is not clear, and may be related to the D-J tube material itself and its surface characteristics, urine characteristics, in vivo retention time and urinary tract infection (8-10). el-Faqih et al. analyzed the D-J tube taken from a large number of patients and found that the formation rate of adherent stones was 9.2% in the indwelling time less than 6 weeks, 47.5% in the 6–12 weeks, and 76.3% in the 12 weeks (11). Urinary calculi caused by D-J tube retention are more common in both ends of the D-J tube and in the lumen. This kind of stone treatment is complicated, so it is necessary to prevent complicated whole-course urinary stones caused by D-J tube retention. Most scholars believe that the D-J tube indwelling course should be 2–6 weeks; there are also clinical studies to confirm that the D-J tube indwelling less than 14 days after the URL can not only reduce the uncomfortable reaction, but also reduce the amount of antibiotics used (12); Drink more water, acidify urine, and timely anti-infective treatment (13). Therefore, it is especially important to inform patients to change the D-J tube regularly and drink more water.

In addition, the adequate drainage of various ostomy tubes before surgery and the application of preoperative antibiotics have effectively improved the patient’s infection, which is an important condition for the success of the first operation (14,15). Another important condition for successful surgery is the control of intraoperative low pressure (16). The main mechanism is that intraoperative low pressure can prevent excessive renal perfusion pressure, avoiding the perfusion solution containing bacteria and endotoxin absorbed by the renal regurgitation, causing postoperative fever and sepsis (17). Therefore, continuous and effective maintenance of intraoperative low pressure can reduce the occurrence of renal regurgitation and improve the safety of minimally invasive surgery for kidney stones.

Urinary tract stones caused by chronic lower urinary tract obstruction are more common, the most common is benign prostate hyperplasia (BPH) with bladder stones, but the urinary calculi in the kidney, ureter, and bladder are rare. The treatment of such patients, considering the patient’s surgical tolerance, long-term surgery and long-term pump lavage may bring serious complications, clinically generally choose staged surgery. However, the treatment of this group of patients also confirmed that a single operation of total urinary calculi is feasible. However, it should be noted here that when faced with a patient with a urinary calculi, our treatment is not a guideline, but is used as a case for reference. Because the patient’s age, physical condition, operative time and patient’s tolerance should be taken into account during the treatment, the specific treatment plan should also be based on this.

Conclusions

Complicated whole-course urolithiasis is relatively rare. With the maturity of minimally invasive treatment methods such as extracorporeal shock wave lithotripsy (ESWL), ultrasonic lithotripsy (URL) (holmium laser, shock wave, ultrasound, etc.) and PCNL, minimally invasive treatment of complex whole-course urolithiasis has become an ideal choice and has broad application prospects.

Acknowledgments

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Written informed consent was obtained from the patient for publication of this case report and any accompanying images.
