A new method to quantify penile erection hardness: real-time ultrasonic shear wave elastography

Introduction

Erectile dysfunction (ED) is one of the most common male sexual dysfunctions (1,2), with the Massachusetts Male Aging Study reporting an overall prevalence of 52% in non-institutionalized men aged 40–70 years (3). A global survey of 29 countries found that the incidence rate was about 13–28% (4). It has become a major problem worldwide, with approximately 150 million men afflicted with various degrees of ED, and the number of patients is predicted to double by 2025 (5). The cause of ED may be organic (neurogenic, hormonal, vasculogenic, or drug induced), psychogenic (anxiety, depression, relationship distress), or mixed. It is recognized that ED treatment should be approached in a multidisciplinary fashion including urology, andrology, endocrinology, and internal medicine.

Erection hardness (EH) is an important indicator of ED and is typically assessed using a tactile tool (6). The close and direct relationship between erection hardness and successful sexual intercourse supports the broader use of the erectile hardness score (EHS) in clinical practice. EHS (7-9) is a simple, validated, semi-quantitative, self-reported tool that scores EH on a 4-point scale: 0, penis does not enlarge; 1, penis is larger but not hard; 2, penis is hard but not hard enough for penetration; 3, penis is hard enough for penetration but not completely hard; 4: penis is completely hard and fully rigid. The EHS depends on the patient’s subjective feelings, but because EH increases continuously during the course of an erection, it is statistically a continuous variable, whereas the EHS is a grade variable. Thus, a quantitative measurement of EH would be more objective and accurate. In the clinic practice, there was no other method to measure the EH except EHS.

Real-time shear wave elastography (SWE) is a type of ultrasonography (US) elastography that uses shear waves to assess tissue elasticity and display it in a quantitative manner. Unlike acoustic compressive waves, which spread in the same direction as the particle compression, the propagation of shear waves proceeds orthogonal to the stimulated displacement. Shear waves can result from an acoustic radiation force, mechanical punch, or external sources. The SWE probe is able to transmit and capture shear waves, which are used to calculate Young’s modulus (YM), with a higher YM value indicating greater stiffness. Tissue stiffness is displayed in real-time with color-coding technology (10-13). SWE has been used effectively in the diagnosis and differential diagnosis of prostatic (10), hepatic (11), thyroid (12), and breast disease (13). Its application for ED is limited to only a few studies that have not taken into account the quantitative aspects of EH (14,15). We know that EH increases during an erection, and that SWE examination could be used to measure the stiffness, but we do not know whether SWE can be used to quantitatively measure EH. In this study, we explored using this method to quantitatively evaluate penile EH in ED patients and normal controls.

We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/tau-20-1096).

Methods

Patient selection

This study was approved by the Ethics Committee of the First Affiliated Hospital of Xi’an Jiao University (XJTU1AF-CRF-2016-015). The clinical trial was registered online (registration no. ChiCTR2000029370). Prior to study enrollment, all subjects agreed to and signed an informed consent form. All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). The study group comprised 40 ED patients (age range 23–58 years, mean 35.1±10.8 years) and 20 healthy age-matched normal controls (age range 25–58 years, mean 34.9±11.2 years). All subjects were married or had regular sex partners. ED was diagnosed using the International Index of Erectile Function Questionnaire (IIEF-5) (16), utilizing nocturnal penile tumescence (NPT) testing (17). Patients had an average 12.5-month history of ED. We excluded any subjects with a history of pelvic or penile trauma or surgery, penile curvature, Peyronie’s disease, congenital penile malformation or other structural abnormality. the other ED patients were taken into our study. This was confirmed by an in-depth medical history, body examination, or two-dimensional US.

Instruments and technique

An Aixplorer US system (Aixplorer, Supersonic Imagine, Aix-en-Provence, France) with a Superlinear SL15-4 probe [frequency 7.5–15 MHz, Mechanical Index (MI): 1.5, Thermal Index of Soft Tissue (TIS): 1.2] was utilized. We performed examinations in a quiet, comfortable room with only the patient and examiner present. The patient was lay supine on the examination bed until he was relaxed and breathing evenly. Alprostadil El (prostaglandin E1, Taide Pharmaceutical Co., Ltd, Beijing, China) 5 µg was injected into the corpus cavernosum to induce penile erection. An index finger was placed on the glans penis to gently draw the dorsal penis to the abdominal wall, applying as little pressure as possible. The examiner gently placed the probe on the ventral penis and used the two-dimensional US mode to scan the entire penis, freezing the image with the corpus cavernosum’s organizational structure clearly shown (14). Gel was reapplied between the probe and the ventral penis and the pressure from the probe’s weight and the examiner’s hand on the penis was minimized. The imaging equipment was switched to SWE mode, with kiloPascals (kPa) as the measurement unit. The image was optimized and adjusted to a standard setting (e.g., frequency range of 7.5–15 MHz, MI: 1.5 TIS: 1.2). The corpus cavernosum and tunica albuginea were displayed in longitudinal section, and three images were obtained for the bilateral corpus cavernosa and tunica albuginea tissues in real time. Another intracavernosal injection (ICI) (18) of 5 µg of Alprostadil El was given to induce penile erection and two-dimensional US and SWE images of the different grades of EH were obtained. In order to keep the high repeatability, all operators have more than 10 years ultrasonography experience.

SWE measurement

The appropriate region of interest (ROI) was selected for sampling frame size based on penile length. As the ROI sampling box reached its filling point with the uniform blue color, tissue stiffness was determined. At this point, a 3–5-mm circle (“Q-box”), which was automatically set by machine was selected to measure the SWE of the corpus cavernosum and tunica albuginea on the left side. The average of three points was taken and then the right side was measured under the same conditions.

Statistical analysis

SAS 9.0 software (SAS, Chicago, IL, USA) was used for statistical analyses. Quantitative data are expressed as mean ± standard deviation (SD). A paired t-test was used to compare the right and left tunica albuginea and corpus cavernosum tissues at different EH. A P value <0.05 was considered statistically significant. Because EH grades 1 and 2 clinically prognosticate failure to complete sexual intercourse, while grades 3 and 4 are sufficient for completing sexual intercourse (7), we drew receiver-operating characteristic (ROC) curves for grades 1 and 2 and grades 3 and 4 EH of the tunica albuginea and corpus cavernosum respectively. The Mann-Whitney test was used to compare the area under curve (AUC) of the ROC, and P<0.05 was considered to be statistically significant. Diagnostic cutoff points between grades 1 and 2 and grades 3 and 4 EH were also determined where indicated.

Results

YM of tunica albuginea and corpus cavernosum in the left and right penis

Among the 40 ED patients enrolled, some were unable to achieve EH grade 2, 3, or 4 after ICI; in some patients, EH increased very slowly, which provided a special opportunity for evaluation because there was sufficient time to take SWE measurements of the stages of EH to obtain more accurate results. Even for an experienced US operator, there was approximately 20–40 s to capture an appropriate SWE image for measurement. In some subjects, particularly the healthy controls, the penis erected very quickly, and in several it took less than 2 minutes for EHS to increase from grade 1 to grade 4 after ICI. Therefore, SWE testing could not be completed for all grades of EH on both sides of the corpus cavernosum and tunica albuginea, resulting in significantly different numbers of cases of hardness for all grades (Table 1).

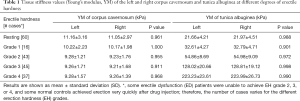

Table 1 Tissue stiffness values (Young’s modulus, YM) of the left and right corpus cavernosum and tunica albuginea at different degrees of erectile hardness
Full table

Thus, to observe the differences in the stiffness values of the corpus cavernosum and albuginea tunica during erection, we compared the YM values of the right and left sides of the penis, the results of which are shown in Table 1. We did not observe any significant differences between the two sides, suggesting that a unilateral penile elasticity test was sufficient to reflect whole penis status during erection.

YM values of the left albuginea tunica and corpus cavernosum according to EHS grade in ED patients and normal controls

YM of the corpus cavernosum decreased slightly after erection, whereas it increased significantly in the tunica albuginea during erection. As shown in Figure 1, in the resting state SWE showed both the corpus cavernosum and tunica albuginea as dark blue. The color of the cavernosum did not changed significantly as EH increased, whereas the color change in the tunica albuginea was significant (0, dark blue; 1, light blue; 2, blue-yellow; 3, red; 4, dark red). Different colors indicated different stiffness; the color change of the tunica albuginea from blue to red indicated increased stiffness.

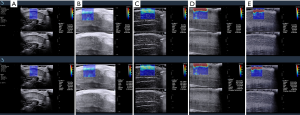

Figure 1 Real-time shear wave elastography of corpus cavernosum and albuginea tissues for different penile erection grades. (A) Up: Cavernosum at Resting state hardness (mean YM =11.3 kPa); Down: Albuginea at Resting state hardness (mean YM =12.1 kPa). (B) Up: Cavernosum at Grade 1 hardness (mean YM =8.8 kPa); Down: Albuginea at Grade 1 hardness (mean YM =27.6 kPa); (C) Up: Cavernosum at Grade 2 hardness (mean YM =6.1 kPa); Down: Albuginea at Grade 2 hardness (mean YM =47.1 kPa); (D) Up: Cavernosum at Grade 3 hardness (mean YM =6.3 kPa); Down: Albuginea at Grade 3 hardness (mean YM =142.2 kPa); (E) Up: Cavernosum at Grade 4 hardness (mean YM =11.3 kPa); Down: Albuginea at Grade 4 hardness (mean YM =235.2 kPa). YM, Young’s modulus.

SWE could quantify the stiffness in the corpus cavernosum during penile erection, and the YM was as follows: resting: 11.16±3.16 kPa; grade 1: 10.22±2.23 kPa; grade 2: 9.28±1.21 kPa; grade 3: 9.26±1.71 kPa; and grade 4: 9.28±1.57 kPa. Although the YM values decreased slightly for the cavernosum tissue between the resting state and EH grades 1–4, there was no significant difference. In addition, there were no significant differences between grades 1, 2, 3, and 4, no significant differences between key grades 2, 3, and 4, and no differences between grades 3 and 4, which suggested that the corpus cavernosum tissue stiffness could not be used to quantitatively reflect penile EH. In the tunica albuginea, the YM increased significantly during penile erection as follows: resting: 21.66±4.21 kPa; grade 1: 32.61±4.27 kPa; grade 2: 54.86±8.69 kPa; grade 3: 128.02±20.66 kPa; and grade 4: 223.23±23.61 kPa. Therefore, our data demonstrated that tunica albuginea stiffness, but not that of the corpus cavernosum, is a reasonable clinical imaging index of penile EH from a quantitative standpoint. Because of the incomplete data sets, an analysis of variance (ANOVA) for repeated observation data at different penile EH grades could not be undertaken, and only paired comparisons were made.

The same results were obtained in both ED patients and normal controls except that the YM of the corpus cavernosum in normal controls was lower than that in ED patients at rest (Table 2).

Table 2 Tissue stiffness values (Young’s modulus, YM) of the left corpus cavernosum and tunica albuginea in patients with erectile dysfunction (ED) and normal controls (NCs) at different degrees of erectile hardness
Full table

ROC curve of YM of penile tunica albuginea and corpus cavernosum on the left side

Figure 2 shows the ROC curve of the YM of the left-sided tunica albuginea and corpus cavernosum. As shown in Table 3, the AUC of the tunica albuginea was significantly higher than that of the corpus cavernosum, which suggested that YM values of penile tunica albuginea could be used to evaluate EH. Because EH grades 1 and 2 clinically predicted failure to complete sexual intercourse, and EH grades 3 and 4 predicted ability to complete sexual intercourse, the optimal cutoff point for the YM of the tunica albuginea to evaluate whether sexual intercourse could be completed was 81.60 kPa.

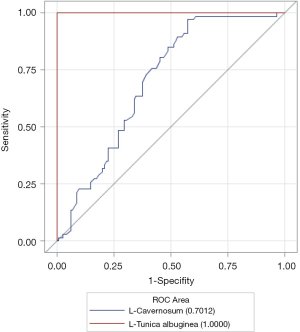

Figure 2 Receiver operating characteristics curve of Young’s modulus of penile albuginea and corpus cavernosum on the left side.

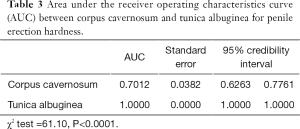

Table 3 Area under the receiver operating characteristics curve (AUC) between corpus cavernosum and tunica albuginea for penile erection hardness.
Full table

Discussion

ED is one of the most common types of male sexual dysfunction (1,2), and currently the EHS is the usual measurement tool for clinical evaluation of penile EH (7,19). However, although the EHS is simple and convenient, it is subjective, and semiquantitative in nature. To the best of our knowledge, an objective quantitative method of evaluating penile EH does not exist to date.

Real-time SWE is a non-invasive US inspection technology. It transmits a safe, acoustic radiation pulse through the probe to the tissue to induce excitation (10-13). YM is a measure of tissue elasticity, and the relation of YM and the shear wave is E = 3 Pc², where E is YM, c is the propagation velocity of the shear wave, and P is the tissue density; a large YM value indicates greater stiffness. US technology can show tissue stiffness through elastography in real time using color coding (20,21). Currently, SWE is used for the diagnosis and differential diagnosis of various diseases, most notably, breast and thyroid nodules (12,13), because the YM for malignant lesions is significantly high as compared with benign lesions (10-13).

Zhang et al. used SWE to evaluate penile cavernosum tissue in 40 healthy volunteers (aged 19–81 years), and found that the YM values of the cavernosum tissues in young males were significantly higher than in older males (P<0.05), which positively correlated with the patient’s testosterone level (14). Inspired by this application of SWE technology, we evaluated whether SWE technology could be used to quantitatively measure penile EH dynamically.

It is widely accepted that EH increase is based on tunica stiffness, not on cavernosum stiffness (22). However, by using SWE, we observed for the first time that the stiffness of both the tunica and cavernosum changed during penile erection. Although the cavernosum stiffness remained almost unchanged (the SWE color-coding remained blue from grade 1 to grade 4), tunica stiffness changed significantly (color change from blue to yellow, to red, and dark red). The color difference was then translated into a numerical unit, known as YM.

Our study findings suggested a method of objectively and accurately evaluate EH changes before and after different treatments for ED. Based on the EHS, if EH increased from grade 1 to grade 2, just one point change of the EHS scale was evaluated. However, based on our SWE data, the YM of the tunica albuginea grew continuously from 32.6 to 54.9 kPa. Even within the same grade of EH, the YM could be significantly different. For example, in grade 4, the YM may change from 198 to 250 kPa. If we evaluated the effect of treatments on EH, the EHS would not change within grade 4, but with SWE measurement, the treatment may have caused a change from 200 to 240 kPa, which would be a significant effect on EH. More interestingly, if penile EH is between grade 3 and grade 4, the EHS cannot describe the EH, whereas SWE measurement, because of its quantitative characteristics, can accurately describe EH at any point of EH between grades 3 and 4. This quantitative assessment will be especially useful for evaluating the effect of drugs and other treatments on EH.

In addition to the corpus cavernosum, the tunica albuginea also plays an important role in the erection process (22). During penile erection, the tunica albuginea is under pressure. With an increase in EH, tunica albuginea tension simultaneously increases, its deformation capacity correspondingly decreases, and EH increases. Our data support the view that, with an increase in penile EH, the YM values of the tunica albuginea significantly increase, which occurred in both ED patients and healthy controls.

The comparison of the AUC of the ROC curves for the YM of the tunica and cavernosum tissues also showed that the AUC for the tunica albuginea ROC curve was significantly better for describing EH than that of the corpus cavernosum (χ²=61.10, P<0.0001). Clinically, penile EH that reaches grade 3 means that the penis can be inserted into the vagina during intercourse (7,19). Therefore, we classified EH grades 1 and 2 as one group and EH grades 3 and 4 as another group to draw the ROC curves and obtain the optimal diagnostic cutoff point. This grouping showed that when the YM for the tunica albuginea was >81.60 kPa, EH reached ≥ grade 3, permitting successful sexual intercourse. This cutoff point provided an important quantifiable indicator for the clinical diagnosis and treatment of ED.

Study limitations

First, SWE measurements require specialized US equipment and a quiet examination room; it is less convenient than the EHS, and at this point, it can be used only for research purposes. In addition, erection induced by an ICI does not represent a normal physiological erection, which may have introduced a bias in the cutoff value for the study. Finally, we could not obtain stiffness values of EH for all four grades in all subjects; thus, our data collection was limited. Therefore, ANOVA for repeated observation data could not be used, which affects the scientific value of the results. In a subsequent study, we plan to expand the sample size to make up for this shortcoming. The area of the measured ROI was circular with a minimum diameter of 3 mm, so measurement of tunica albuginea stiffness included some penile skin. It did not affect the clinical application of this method.

Conclusions

We determined that a quantitative evaluation of penile EH could be made by measuring the stiffness of the penile tunica albuginea instead of the corpus cavernosum while incorporating the YM with SWE. SWE is a new, noninvasive, quantitative method that can be used to evaluate penile EH. Because of its objectivity and quantitative characteristics, YM will be helpful for better evaluating the effect of various treatments for ED.
