Renal Ewing’s sarcoma/primitive neuroectodermal tumor (PNET): a case series of 7 patients and literature review

Introduction

As a member of the Ewing’s sarcoma family of tumors (ESFTs), primitive neuroectodermal tumors (PNETs) are a rare kind of sarcoma, especially those found as primary tumors in the kidney, and fewer than 200 cases have been reported thus far. Renal PNET is more common in young adults and older children (median age: 29 years old, 4–61 years old), and the male-to-female incidence ratio is 2:1–3:1. Renal PNET has a very poor prognosis; the 2-year survival rate of patients after radical nephrectomy was 80% and that of patients without radical nephrectomy was 30% (1). Forty percent of patients had complications with tumor thrombosis and distant metastasis at diagnosis, with a median disease-free survival (DFS) time of 5 months and a median survival time of 24 months (2,3). The clinical manifestations and imaging findings of renal PNET are often nonspecific compared with those of other renal cell carcinomas. Renal PNET also has no specificity in imaging examinations; it often manifests as a single, large mass without obvious boundaries in CT, MRI or ultrasonography (4). The diagnosis of PNET is still based on the histological and immunohistochemical staining of biopsy or surgical specimens; 90% of patients with PNET had a specific translocation gene, t (11:22) (q24; q12), and the fusion gene EWS-Fli-1, which could be found by fluorescence in situ hybridization (FISH) and reverse transcription polymerase chain reaction (RT-PCR), which can help in diagnosis (5). However, there is still no consensus on the best treatment for such a rare disease. Surgery is currently the main treatment strategy, especially radical nephrectomy. Adjuvant radiotherapy is also required for patients with positive margins or late-stage disease, and neoadjuvant and adjuvant chemotherapy may prolong survival in patients with metastases (1,3,6).

Here, we review and summarize the clinical data of patients with renal PNET diagnosed pathologically in our center from January 1, 2007, to January 1, 2018, and follow up the patients for survival status. We present the following article in accordance with the AME Case Series reporting checklist (available at: http://dx.doi.org/10.21037/tau-20-1122).

Methods

Clinical data collection and follow-up

We retrospectively analyzed the clinical data of patients with renal PNET diagnosed pathologically through aspiration biopsy or surgery at Peking University First Hospital from January 1, 2007, to January 1, 2018. The patients’ specimens were fixed by formalin and embedded in paraffin for HE staining and immunohistochemical analysis. All pathological slices were read by two pathologists, and the results were reviewed by a senior pathologist.

Two researchers collected clinical data, including patient age, sex, symptoms, imaging data (including whether there was tumor thrombosis or distant metastasis) and immunohistochemical results. After two copies of the data were collected, the third researcher reviewed and collated the data.

All patients were followed up by telephone. In June 2020, the follow-up treatment (chemotherapy or not) and overall survival (OS) were recorded. All the follow-up visits were completed by the same researcher, and telephone follow-up of each patient's family members was conducted. All follow-up visits were conducted for a second time 1 week later. For patients with inconsistent results from the two follow-up visits, we conducted a third telephone follow-up after a period of time. In addition, our telephone follow-up strictly followed a set sequence and question content.

All procedures performed in this study were in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Research Ethics Committee of Peking University First Hospital, Peking University (approval number 2020-725). All patients’ family members were informed, and all agreed to the use of the patients’ clinical data in this retrospective study.

Statistical analysis

OS is expressed as the average and range. Other results including patient age, sex, symptoms, imaging data whether there was tumor thrombosis or distant metastasis) and immunohistochemical results are expressed as numbers and percentages. The statistical analysis was conducted by Microsoft Excel 2013.

Results

Through a retrospective analysis of the medical records of the Peking University First Hospital from January 1, 2007, to January 1, 2018, we found 7 patients with renal PNET diagnosed pathologically. Their clinical data are summarized in Table 1.

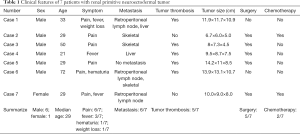

Table 1 Clinical features of 7 patients with renal primitive neuroectodermal tumor
Full table

Among them, 6 patients were male, and 1 patient was female. The median age was 29 years (21–72 years). The preoperative imaging examinations of patients were different, but all of them showed a large renal mass, protruding outwards from the renal contour, some of which were accompanied by internal necrosis and hemorrhage (Figure 1). The CT scan of case 3 showed a renal mass protruding outwards from the renal contour, with internal necrosis and hemorrhage. Four patients were diagnosed with distant metastasis (including lung, bone or liver metastases), and two patients had retroperitoneal lymph node metastasis.

Figure 1 CT of case 3, shows a renal mass, protruding outwards the renal contour, with internal necrosis and hemorrhage.

In terms of symptoms, the main clinical manifestation of most patients was pain (5/7). The second most common symptom was fever (3/7). Among the 3 patients with fever, case 1 showed a persistent high fever (39 °C), and cases 4 and 7 showed persistent low fever (below 38 °C).

Case 1 did not receive surgical treatment due to persistent high fever and a deterioration of the general condition after needle biopsy of the kidney; this patient died very quickly. Case 6 refused further surgical treatment after the biopsy diagnosis of PNET.

Two patients (case 2 and case 7) received postoperative chemotherapy, but case 2 completed only three rounds of chemotherapy due to bone marrow suppression after chemotherapy, and case 7 did not complete the chemotherapy because of an inability to tolerate the side effects.

In the HE staining, a dense mass of small round tumor cells was observed (Figure 2). HE staining of the sample from case 5 showed a dense mass of small round tumor cells, and typical Homer-Wright rosettes were observed in 2 specimens: 7/7 were CD99 positive and LCA negative, 6 patients were VIM positive, and 4/7 patients were NSE positive. Five patients were tested for CgA, but only 1 case was positive, and 3 cases were tested for WT1, and all of them were negative. The results of other immunohistochemical markers are shown in Table 2 and Figure 3.

Figure 2 HE stain of case 5’s sample, shows a dens mass of small round tumor cells (arrow). Magnification: 200×.

Table 2 Immunohistochemistry markers of 7 patients with renal primitive neuroectodermal tumor
Full table

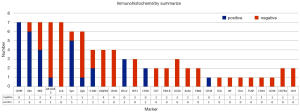

Figure 3 Summary of the immunohistochemistry markers.

All patients were followed up by telephone, and all patients had died, with a median survival time of 11.47 months. Their survival status is summarized in Table 3. The only patient without distant metastasis at diagnosis had the longest OS (26.77 months). The average OS of the two patients receiving chemotherapy was 8.43 months, which was lower than that of the patients who did not receive chemotherapy (13.55 months). Due to the small number of patients in our cohort, we could not make a statistical comparison.

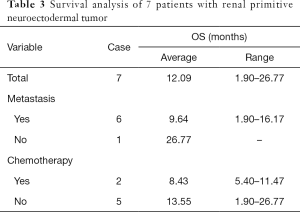

Table 3 Survival analysis of 7 patients with renal primitive neuroectodermal tumor
Full table

Discussion

We retrospectively summarized the medical records of 7 patients with renal PNET diagnosed in our center. The median age was 29 years (21–72 years). Four out of 7 patients were diagnosed with distant metastasis (including lung, bone or liver metastases), and 2 out of 7 patients had retroperitoneal lymph node metastasis. The main clinical manifestations were pain and fever. The median survival time was 11.47 months. The average OS of the two patients receiving chemotherapy was 8.43 months, which was lower than that of the patients who did not receive chemotherapy (13.55 months).

PNET is a kind of malignant small round cell tumor originating from the neural crest that belongs to the Ewing’s sarcoma family of tumors (ESFTs). PNET is common in the central nervous system, rib and paravertebral region, including the skin, soft tissue and lung. Renal PNET is extremely rare, and fewer than 200 cases have been reported worldwide. In the reported cases, renal PNET was more common in young adults and older children (median: 29 years old, 4–61 years old), and the male-to-female incidence ratio was 2:1–3:1 (7-9).

The clinical features of renal PNET are not specific compared with those of other types of renal tumors. The typical “renal cancer triad syndrome” (low back pain, hematuria and abdominal mass) can be observed in renal PNET. In addition, irregular fever and weight loss can be clinical manifestations (1). Renal PNET also has no specificity in imaging examinations; it often manifests as a single, large mass without obvious boundaries in CT, MRI or ultrasonography. However, compared with renal cell carcinoma, the boundary of renal PNET on contrast-enhanced CT is more fuzzy; internal necrosis and separation are more common and more likely to invade the renal vein and inferior vena cava; and the enhancement degree of PNET in the cortical and parenchymal phases is relatively small (4,10). In MRI, PNET was described as isointense or low signal on T1WI and inhomogeneous medium to high signal on T2WI (10,11).

The diagnosis of renal PNET should be made by histological and immunohistochemical staining. The product of the MIC-2 gene, CD99, is usually strongly positive, and neuron-specific enolase (NSE) and synaptophysin (Syn) may also be positive in PNET (12). The differential diagnosis of renal PNET includes neuroblastoma, adult Wilms' tumor, malignant lymphoma, rhabdomyosarcoma, small-cell carcinoma and synovial sarcoma (monophasic, poorly differentiated, round cell variant). Immunohistochemical markers for differential diagnosis are cytokeratin (CK; for Wilms’ tumor, small-cell carcinoma and synovial sarcoma), leukocyte common antigen (LCA; for lymphoma), NSE/chromogranin A (NSE/CgA; for neuroblastoma) and CD-99 (for PNET). Although tumor cells can show NSE positivity in some PNET cases, as seen in neuroblastoma, CD99 is usually negative in neuroblastoma (13). In addition, the typical histological features of PNET, Homer-Wright rosettes, are rare in other extraosseous Ewing's sarcomas, which is helpful for the diagnosis of PNET. Further, 90% of PNET patients had a specific translocation gene, t (11:22) (q24; q12), and the fusion gene EWS-Fli-1, which could be found by fluorescence in situ hybridization (FISH) and reverse transcription polymerase chain reaction (RT-PCR) (5,13-19). In our 7 patients, all patients’ samples were positive for CD99, which is a typical immunohistochemical feature of ES/PNET. In addition, all patients’ samples were negative for LCA, which well differentiates PNET from lymphoma. To identify other epithelial tumors, all our specimens had negative CK8/18, CK7 or AE1/AE3 results. Some patients’ specimens were NSE positive (4/7) and CgA positive (1/5). Unfortunately, our center was unable to perform FISH or RT-PCR to confirm the presence of the EWS-FLI1 fusion gene in these patients.

The 5-year survival rate of PNET is only 45–55%, and the median recurrence-free survival (RFS) is only 2 years for advanced PNET (1,20). Similar to other PNETs, renal PNETs are high-grade malignant. Approximately 40% of patients have distant metastasis when diagnosed. The common metastasis locations include the regional lymph nodes, liver and lung. Risi et al. summarized the clinical data of 116 reported renal PNET patients in 2012. For patients with distant metastasis, the median DFS was only 5 months, and the 18-month survival rate was only 60%, which was significantly lower than that of patients without metastasis (85%) (1).

Patients usually need a combination of multiple treatment strategies, including radical nephrectomy and chemotherapy (VAC (cyclophosphamide + adriamycin + vincristine) and IE (ifosfamide + etoposide) are most common), and adjuvant radiotherapy is also required for patients with positive margins or advanced stage, but in existing studies, there was no statistically significant survival benefit for patients receiving adjuvant therapy before or after surgery compared to patients receiving surgery alone (12-month OS was 93% compared to 75%, P=0.092) (1,21). In addition, with further research on the Ewing sarcoma family and the EWS-FLI1 fusion gene, some drugs aimed at the signal transduction pathways involved in this gene, such as integrin, Wnt, IGF, EGF and PDGF, are also emerging gradually. However, whether these drugs can eventually enter clinical practice and improve the prognosis of patients is still unknown (9,22). In our results, the survival of patients was worse than that reported in the literature. The average OS time was only approximately 1 year. This may be related to the fact that most of our patients had distant metastasis (6/7) at diagnosis, and most patients did not receive chemotherapy (5/7). In addition, the only 2 patients who received chemotherapy did not complete the chemotherapy due to the side effects caused by the drugs. Furthermore, unfortunately, because of the time that had passed between chemotherapy and our telephone follow-up, the patients’ families were unable to provide details on the chemotherapy regimen, so we were unable to conduct further analysis about this question. And due to the existence of literature bias, clinicians are often more willing to report successful treatment of their patients, with more successful operations and longer survival times. Therefore, some patients who are also diagnosed with this disease but have poor prognosis may not be reported. These factors create a possible bias in the literature. All of these factors led to the OS time of our patients being lower than that reported in the previous literature.

There are several limitations in our study: (I) this is a retrospective study, and the number of cases is low. This creates a potential bias, although for such a rare type of renal tumor, a prospective study is very difficult, and prospective clinical trials are undoubtedly of greater significance for diagnosis and treatment. (II) Because our patients come from all over the country and the disease is very rare, there is usually only one patient with the disease in a certain region. It is very difficult for us to follow up with patients and their families with paper-based follow-up forms. Therefore, we chose telephone follow-up, which creates a potential risk of bias. (III) Since postoperative treatment was not conducted in our hospital, and it had been some time since the death of the patients when the patients’ family members were contacted, the family members of the only two patients who received postoperative chemotherapy could not recall the chemotherapy plan and cycle administered to the patients.

Since the first report of renal PNET in 1975, people’s understanding of this disease has gradually deepened (23). According to the current reports, renal PNET is still a malignant tumor with extremely poor prognosis, and although chemotherapy is currently considered a potentially effective treatment, the side effects of chemotherapy are still extremely painful for patients, and better standardized treatment regimens are still needed to prolong survival.

Conclusions

Renal PNET, as a rare high-grade malignant tumor, has a poor prognosis. Most patients have distant metastasis and venous tumor thrombosis. Although the existing research shows that surgery combined with chemotherapy may be beneficial to the OS of patients, the poor general condition of patients with distant metastasis often makes them unable to tolerate the side effects of chemotherapy. Whether these advanced patients with poor general condition can benefit from chemotherapy needs more research.
