Endoplasmic reticulum oxidoreductase 1 alpha modulates prostate cancer hallmarks

Introduction

Tumor progression is sustained by aberrant signaling circuits that are largely dependent on redox-dependent pathways. Signals originating from the endoplasmic reticulum (ER) and downstream exocytic organelles have particular relevance in prostate cancer (PCa) and other secretory tumors (1,2). The biosynthesis of secretory proteins often requires disulfide bond formation (2). The processes of ‘oxidative folding’ set in motion electron transport chains that ultimately generate H₂O₂ (3). ER oxidoreductin 1 alpha (Ero 1α) flavoproteins are rate-limiting steps in oxidative folding. They oxidize protein disulphide-isomerase (PDI), which in turn donates disulphide bonds to nascent proteins (4,5). Ero 1α is upregulated under conditions of hypoxia (6) and ER stress (7), thus generating H₂O₂ that can be either transported to the cytosol or utilized lumenally by peroxiredoxin 4 (PRDX4) (8) or glutathione peroxidases (GPX) 7 and 8 (9). As a consequence, the relative amount of these molecules determine redox homeostasis in the ER and H₂O₂ fluxes. H₂O₂ can amplify oncogenic signals, inhibiting protein tyrosine phosphatases. Conversely, if redundant, H₂O₂ can induce lethal oxidative stress (10). Ero 1α can also modulate cell life-death decisions activating inositol 1,4,5- triphosphate receptors (11).

Tumorigenesis and cancer progression are very complex processes during which cells acquire different peculiar characteristics (12,13). In particular, hypoxia is a frequent condition during tumorigenesis and a key feature of the tumor microenvironment (14). Ero 1α has been proposed as a marker of hypoxia in various kinds of cancers as it is induced by low-oxygenic environments via the hypoxia-inducible factor 1 (HIF-1) (15). It also controls mRNA levels and folding of vascular endothelial growth factor A (VEGF-A), a molecule essential for neoangiogenesis (16).Furthermore, Ero 1α promotes neoangiogenesis and metastasis by targeting the S1PR1/STAT3/VEGF-A pathway in hepatocellular carcinoma (17).

With an increased rate of protein assembly and folding within the ER (to ensure efficient protein supply), cancer cells are often exposed to a higher risk for misfolded protein accumulation with consequent -stress and induction of Unfolded Protein Response (UPR) (6); this has profound impact on tumor progression, neo-angiogenesis, tumor invasion and metastasis (18). While Ero 1α is predominantly induced under hypoxia, the isoform Ero 1β is mainly induced under UPR (6).

Ero 1α plays also a key role in the regulation of immune response to cancer. It has been reported to control MHC class I folding and expression in colorectal cancer cells, by altering the susceptibility of tumorigenic cells by CD8⁺ T cells (19). Furthermore, a link between Ero 1α mediated oxidative folding and programmed death-ligand 1 (PD-L1) expression levels has been observed in breast cancer cells. PD-L1, by binding to programmed death-1 (PD-1) expressed on immune cells, plays a crucial role in tumor immunology. Importantly, Ero 1α levels have been found correlated to PD-L1 expression in vitro and in vivo, suggesting Ero 1α as a potential target in cancer immunotherapy (20).

Consistently with these evidences, Ero 1α has been found correlated with bad prognosis in different types of cancers, such as breast, pancreatic, cervical and gastric cancers (21-24).

The deregulation/activation of the described pathways and mechanisms is common to many malignancies including PCa. Based on these evidences, we hypothesize that Ero 1α may play a relevant role in PCa progression too.

We investigated (I) Ero 1α expression in human tumoral and not tumoral prostate cell lines and prostate samples; and, (II) Ero 1α role in modulating PCa cell proliferative signaling, migration ability, and invasive potential.

We present the following article in accordance with the MDAR reporting checklist (available at http://dx.doi.org/10.21037/tau-20-1025).

Methods

Reagents and prostate cell lines

All reagents and chemicals were from Thermo Fisher Scientific Inc. (Waltham, Massachusetts, USA), unless otherwise stated. The human epithelial prostate cell line RWPE-1 (RRID: CVCL_3792) was purchased from ATCC and maintained in Keratinocyte Serum Free Medium supplemented with 0.05 mg/mL bovine pituitary extract and 5 ng/mL human epidermal growth factor. The human cell lines LNCaP, LAPC4, DU145 and PC3 (respectively, RRID: CVCL_0395, CVCL_4744, CVCL_0105, CVCL_0035) were kindly donated by Prof. Zoran Culig (Innsbruck Medical University, Innsbruck, Austria). LNCaP and PC3 cells were cultured in Roswell Park Memorial Institute 1640 medium supplemented with 10% fetal calf serum (EuroClone S.p.A., Pero, Milan, Italy). LAPC4 were cultured in Iscove`s Modified Dulbecco`s Medium (IMDM) containing 10% fetal bovine serum and 100 nM dihydrotestosterone. All culture media contained 100 u/mL penicillin and 100 µg/mL streptomycin. Docetaxel resistance was obtained by exposing PC3 cells to 5 ng/mL docetaxel for 1 day followed by gradual removal of the drug. Treatment was repeated every 21 days for 3 times.

Primary patient samples

Patient samples were collected from patients undergoing either holmium laser enucleation of the prostate (HoLEP) for symptomatic benign prostatic hyperplasia (BPH) or radical prostatectomy (RP) for PCa at a single tertiary-referral academic institute. Median age was 63 years (range, 53–73 years). Data collection followed the principles outlined in the Declaration of Helsinki; all patients had signed an informed consent agreeing to deliver their own anonymous information for future studies. The study was approved by our local ethical committee.

siRNA transfection

Sequences of small interfering RNA (siRNA) inhibiting Ero 1α gene expression (Ambion^®, Waltham, Massachusetts, USA) were previously published (25,26). Transfection was carried out using Invitrogen™ Lipofectamine™ RNAiMAX according to the manufacturer’s instructions. Transient protein expression knockdown was confirmed by Western blotting analysis with specific antibodies at 72 hours after silencing.

Protein extraction and western blotting analysis

Cells were detached from culture flasks or culture plates using 0.25% Trypsin-EDTA, washed in PBS 10 mM N-ethylmaleimide (NEM) to block disulphide interchange (4). Cells were lysed in RIPA lysis buffer (150 mM NaCl, 1% NP-40, 0.1% SDS, 50 mM Tris-HCl pH 8.0 supplemented with 10 mM NEM, and protease inhibitor cocktail) for 20 minuteson ice. Clearance was achieved by centrifugation with 17,000 ×g at 4 °C for 20 minutes. Post-nuclear supernatants were used immediately or stored at −20 °C. Human tissue samples, after lysis, were subjected to 30’’ sonication (1 pulse/second; 50% power/Sonopuls Ultrasonic Homogenizer, Bandelin Electronic GmbH & Co. Berlin, Germany) followed by centrifugation at 13,000 rpm/15’/4 °C. Proteins were quantified by bicinchoninic acid (BCA) assay (Sigma, St Louis, MO, USA).

Proteins were analyzed by Western blotting (reducing SDS-PAGE on gradient 4-12% Bis- Tris polyacrylamide precasted gels) (Invitrogen™, Thermo Fisher Scientific). After electro-transfer to Nitrocellulose paper, nitrocellulose was saturated with 5% milk in PBS 0.1% Tween. Nitrocellulose papers were incubated with primary antibodies: mouse monoclonal anti-Ero 1α [2G4, 1:1,000 (27)],anti-β1 Integrin (mouse monoclonal clone E4/C9 kind gift of Dr. Maria Raffaella Zocchi (28), rabbit anti-anti PDI 1:1,000 (kind gift from Prof. I. Braakman, Utrecht, The Netherlands); Rabbit anti-GRP94 1:500 (ADI-SPA-851, lot #08021036, RRID AB_10615790, ENZO Life Sciences, Farmingdale, New York, USA); Rabbit anti-Peroxiredoxin 4 1:1,000 (10703-1-AP, RRID AB_2168493, Invitrogen Proteintech™, Thermo Fisher Scientific); mouse anti-GAPDH (6C5) 1:2,000 (sc32233, lot #I0319, RRID AB_627679, Santa Cruz, Dallas, Texas, USA) and mouse monoclonal anti-β actin 1:2,000 (A5441, lot #127M4866v, RRID AB_476744, Sigma, St Louis, MO, USA). Subsequently nitrocellulose membranes were incubated with anti-Mouse IgG or anti-Rabbit Ig secondary antibodies Alexa Fluor conjugated (700, 647 or 488) (Invitrogen™, Thermo Fisher Scientific) 1:2,000 in PBS 0.1% Tween (Alexa Fluor^TM 488 Goat anti-Mouse IgG (H+L) A11029, lot #2066710, RRID AB_138404; Alexa Fluor^TM 647 Goat anti-Mouse IgG (H+L) A21236, lot #2170302, RRID AB_2535805; Alexa Fluor^TM 700 Goat anti-Mouse IgG (H+L) A21036, lot #1906489, RRID AB_1500658; Alexa Fluor^TM 488 Goat anti-Rabbit IgG (H+L) A11034, lot #1851447, RRID AB_2576217; Alexa Fluor^TM 647 Goat anti-Rabbit IgG (H+L) A21245, lot #2098544, RRID AB_2535813; Alexa Fluor^TM 700 Goat anti-Rabbit IgG (H+L) A21038, lot #1875540, RRID AB_1500674). Signals were detected by infrared technology by FujiFilm (FLA 9000) (FujiFilm Life Science, Tokyo, Japan) and densitometric analysis of the images was performed with ImageJ.

Proliferation assay

A total of 200,000 cells per well were plated on 6-well-plates and treated with siRNA targeting Ero 1α using Lipofectamine^TM RNAiMAX or scrambled siRNA as a control. Forty-eight hours after silencing, cells were plated in 100 µL of standard cell-culture medium on a 96-well ImageLock ^TM plate (Essen Bioscience, Ann Arbor, Michigan, USA) to reach a confluence of 10–20% and placed in the IncuCyte S3 Life Cell Analysis System (Essen Bioscience). Images were taken every 2 hours for a total duration of 48 hours.

Migration assay

In order to analyze the effects of Ero 1α silencing on cell migration, 48 hours after Ero 1α siRNA transfection, cells were transferred into a Culture-Insert 2 Well μ-dish (Ibidi, Planegg, Germany) (70,000 cells for chamber). Cells were incubated overnight to allow complete adhesion. The silicon inlay was removed and life-cell microscopy was carried out for up to 24 hours, in RPMI culture medium supplemented with 2% FCS, with GFP-Imaging (Widefield Imaging Setup) Zeiss Axiovert S100 with Hamamatsu OrcaII-ER. The gap size was measured with Fiji image processing software.

Scratch wound cell invasion assay

In order to analyze the effect of a downregulation of Ero 1α on PCa cell invasion, we investigated the ability of Ero 1α-silenced PC3 cells to invade into a Matrigel Matrix in vitro. Matrigel (Corning) was diluted to final concentration of 100 μg/mL in RPMI culture medium supplemented with 2% FCS. Wells of a 96-well ImageLock plate were coated with 50 μL of diluted Matrigel to create a thin layer and incubated at 37 °C over-night. Forty-eight hours after silencing of Ero 1α, PC3 cells were seeded at 50,000 cells/well. Scratch wounds were created using the IncuCyte WoundMaker. A Matrigel top layer was created with 50 μL Matrigel solution per well (2.6 mg/mL in RPMI 2% FCS). After 30 min of incubation at 37 °C, 100 μL of RPMI culture medium containing 2% FCS was added to each well and the assay plate was placed into the IncuCyte S3 Life Cell Analysis System. Images were taken every 2 hours for a total of 90 hours.

Bioinformatic analysis

The Pearson correlation coefficient, along with its significance (P value), between Ero 1α mRNA expression and the Gleason score, was calculated in three PCa datasets (29) by using the R software (https://www.r-project.org/). As for Taylor and TCGA datasets, normalized expression data and clinical data were taken, respectively, from the cBioPortal (http://www.cbioportal.org/study/clinicalData?id=prad_mskcc) and the Genomic Data Commons Data Portal (https://portal.gdc.cancer.gov/). As for Ross-Adams dataset, normalized expression data and clinical data were obtained from the Gene Expression Omnibus (GEO, GSE70768).

Statistical analysis

All data are expressed as mean ± standard deviation (SD). Welch’s t-test, Mann-Whitney test and T-test with significance defined as P<0.05 were used for analysis. Graphs were fitted by non-linear regression. To test normality Shapiro-Wilk Test was addressed. Statistical analysis was carried out with Prism GraphPad Version 7.0 for Mac, GraphPad Software, La Jolla California USA, www.graphpad.com”.

Ethical statement

The study was conducted in accordance with the Declaration of Helsinki (as revised 2013). This study was approved by the institutional research committee CE-IRCCS San Raffaele (Registration-ID: URBAN) and informed consent was taken from all the patients.

Results

Ero 1α expression correlates with PCa malignancy

Dataset analysis of three different, public patient cohorts allowed us to uncover a consistent and significant, positive correlation between Ero 1α mRNA levels and the Gleason patterns of either biopsies and surgical specimens from RP (Table 1). In one cohort a marginal difference in Ero 1α mRNA expression was observed also between primary tumors and metastases (data not shown). Finally, also Ero 1α protein expression, measured by western blot on human prostate samples, revealed a trend to higher levels in PCa samples compared to non-tumoral prostate tissues and BPH samples (Figure 1A,B).

Table 1 Correlation of Ero1α mRNA expression to Gleason score in three different patient cohorts (19-21)
Full table

Figure 1 Ero 1α levels are increased in primary patient samples and PCa cell lines. (A) Representative Western blot images of Ero 1α in non-PCa (nPCa) and PCa primary patient samples. nPCa include the non tumoral area from PCa as well as BPH surgical resections. 40 µg of total proteins extracts per lane were loaded on SDS-PAGE under reducing conditions. Nitrocellulose was decorated with anti-Ero 1α and anti-GAPDH antibodies, as indicated. (B) Densitometric quantification of Ero 1α western blots shown in (A) (P=0.1371) (6 and 12 biological replicates for nPCa and PCa samples, respectively). (C) Representative Western blot images of Ero 1α, Endoplasmin-94 kDa glucose-regulated protein (GRP94) and peroxiredoxin 4 (PRDX4) in prostate cell lines. 40 µg of proteins/lane were loaded on SDS-PAGE under reducing conditions. Nitrocellulose was decorated with anti-Ero 1α, anti-GRP94 and anti-PRDX4 antibodies, as indicated. Despite the difference in Ero 1α levels, the protein level of the ER chaperone GRP94 is almost constant, hinting against a general enlargement of the ER. PRX4 is overexpressed in LNCaP and PC3, as described in literature (30). (D) Densitometric quantification of the signal. Mean ± standard deviation (SD); n=4 (biological replicates). Ero 1α protein level is significantly increased in the highly malignant and metastatic PC3 cells line compared to the non-tumorigenic RWPE1 cell line (P=0.0273). (E) Representative Western blot images of Ero 1α, Protein Disulphide Isomerase (PDI), PRDX4 and actin in PC3 cells. The expression of Ero 1α is significantly increased in PC3 cells resistant to docetaxel with respect to control PC3 cells (i.e., PC3 cells sensitive to docetaxel) (P=0.0192), while PDI (as marker of the ER) remains constant, indicating that Ero 1α increase is not a consequence of a general ER enlargement. Lysates of three control PC3 cell samples and four Docetaxel-resistant PC3 cell samples were loaded under reducing conditions on SDS-PAGE and decorated with anti- Ero 1α, PDI, PRDX4 and actin antibodies, as indicated. Densitometric analysis of the gel is shown in panel (F). Ero 1α levels were normalized to actin. Mean ± SD is shown (3 and 4 biological replicates for control and Docetaxel resistant cells respectively). *, level of significance. Ero 1α, endoplasmic reticulum oxidoreductin 1 alpha; PCa, prostate cancer.

The same dataset also showed that the more malignant PCa cell line has higher levels of Ero 1α mRNA compared to the less malignant LNCaP cell line (Table 2). Consistently with these findings, we found differences also at the protein level between PCa cell lines (i.e., LNCaP, LAPC4, Du145 and PC3 cells) and the non-tumorigenic RWPE-1 cell line, which was adopted as a control (Figure 1C,D).Again, the highest levels were observed in the more aggressive, androgen-independent, Du145 and PC3. Ero 1α levels further increased in PC3 after achievement of docetaxel resistance (Figure 1E,F). Interestingly, Ero 1α/PRDX4 ratio was higher in the androgen independent cells (i.e., DU145 and PC3) and further increased after achievement of docetaxel resistance (data not shown). Taken together, current findings suggested that Ero 1α levels (both mRNA and protein) correlate both with PCa onset and progression.

Table 2 Quantification of Ero1α mRNA expression in prostate cancer cell lines from Taylor et al. [2010]
Full table

Ero 1α knockdown inhibits PCa cell proliferative, migratory and invasive abilities

We asked whether increased Ero 1α levels are needed to sustain PCa progression. In this context, we examined the effects of Ero 1α downregulation on the proliferation of PC3 and RWPE-1 (Figure 2A,B, respectively). As expected, Ero 1α silencing inhibited the proliferation of PC3 (P=0.0081). A much lower inhibitory effect was observed in the non-tumorigenic RWPE-1 cells (P=0.2523). The extent of Ero 1α silencing was demonstrated by western blot analysis (Figure 2C).

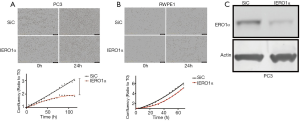

Figure 2 Ero 1α downregulation impairs PCa cell proliferation. (A,B) Representative Fields of View (FOVs) of PC3 and RWPE-1 at time point T0 (0 hours) and T1 (48 hours) during cell proliferation assay. Comparison between cells treated with siRNA Control (siC) or siRNA Ero 1α (iEro 1α) shows that cell proliferation rate is significantly inhibited under transient Ero 1α knockdown in the PC3 cells (P=0.0081) (A) but not in the non-tumorigenic RWPE-1 cells (P=0.2532) (B). Mean ± SD; n=4 (biological replicates) (C) Western Blot confirming transient protein expression knockdown in PC3 cells. Protein extracts from 100,000 cells/lane were loaded under reducing conditions on SDS-Page and decorated with anti-Ero 1α and anti-actin antibodies. Ero 1α, endoplasmic reticulum oxidoreductin 1 alpha; PCa, prostate cancer.

Next, we analyzed the effect of Ero 1α silencing on the migratory properties of PC3 cells. Clearly, cells with lower Ero 1α levels needed significantly longer time to occupy an empty space as compared with untreated cells (Figure 3A,B). Single cell tracking assays revealed that silenced cells moved with a significantly slower velocity than controls (Figure 3C,D). This observation confirmed that the slower migration shown in panels A and B was not the mere consequence of a lower proliferation of Ero 1α silenced cells.

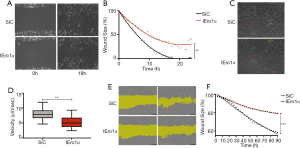

Figure 3 Ero 1α downregulation impairs PCa cell migration and matrix invasion (Migration Assay and Matrigel^® Invasion Assay; Incucyte^®). Migration: (A) representative FOVs of migrating PC3 cells at 0 h and 18 hours after transient transfection with siC or iEro 1α. (B) Cell migration is significantly impaired under transient Ero 1α transcription knockdown (siRNA) (P=0.0085). Mean ± SD; n=3 (biological replicates). Magnification ×100. Average migration velocity (µm/s): (C) representative FOVs of migrating PC3 cells, silenced (iEro 1α) or not (siC) for the expression of Ero 1α, manually tracked using Fiji^® image processing software. Magnification ×100. (D) Cell migration velocity is significantly lower under transient Ero 1α (1.002±0.169) transcription knockdown compared to control (siC) (1.985±0.294) (P=0.0061). Mean of 10 cells/field from 2 independent experiments (biological replicates). Invasion: (E) invasion was evaluated with the Incucyte^® Live-Cell analysis system which provides a real-time quantitative live-cell imaging and analysis. Representative FOVs of PC3 cells invading Matrigel^® matrix. Pictures captured after 0 and 90 hours. (F) Cell invasion ability is significantly inhibited by Ero 1α siRNA (P=0.0007). After 90 hours, wound size is 58.4% for siC and 79.2% for iEro 1α respect to the initial wound size. Mean ± SD; n=4 (biological replicates). **, ***: level of significance. Ero 1α, endoplasmic reticulum oxidoreductin 1 alpha; PCa, prostate cancer.

Next step was to investigate whether Ero 1α downregulation affected only cell migration or may also impact on the cellular ability to invade a matrix. Thereof, we compared the ability of PC3 cells to migrate into a dense Matrigel^® matrix after Ero 1α or Control siRNA transfection (Figure 3E). To this end, cells grown in a semisolid medium are asked to invade a denser matrix for 90 hours. Clearly, Ero 1α knockdown significantly impaired the migratory capacity of PC3 cells (Figure 3F, P=0.0007).

Ero 1α affects integrin β1 levels in PC3 cells

In line with the above data, the vast majority of PC3 control cells displayed the stellate appearance typical of invading cells. In contrast, Ero 1α silenced cells tended to maintain a roundish shape, thus suggesting difficulties in creating the extrusions necessary for cell mobility and invasion (Figure 4A). A possible reason underlying the impairment of migratory-invasive properties of silenced cells is a defective processing of adhesion molecules. Integrins are adhesion molecules rich in disulfide bonds. Therefore, a decrease of Ero 1α levels could eventually impact their folding and transport. To verify this possibility, we quantified the expression of the adhesion surface molecule, integrin β1, in PC3 cells and PC3 cells silenced for Ero 1α expression. Clearly, downregulation of Ero 1α cells caused a statistically significant decrease of the total amount of integrin 1 (Figure 4B,C).

Figure 4 Decreased intracellular levels of Ero 1α affect the morphology of PC3 cells and the expression of Integrin β1. (A) Brightfield microscopy. Transient protein expression knockdown of Ero 1α by siRNA (iEro 1α) seems to impair formation of cell extensions. Left panel: typical satellite shape of PC3 cells transiently transfected with control siRNA (siC) invading the Matrigel^® matrix. Right panel: roundish shape of PC3 cells under transient Ero 1α knockdown (iEro 1α). Magnification ×100. (B) Representative western blot images of integrin β1 and GAPDH in PC3 cells. Densitometric quantification of the gel is shown in panel (C). Levels are normalized to the GAPDH. The expression of Integrin β1 is significantly lower after transient knockdown of Ero 1α (iα) compared to the expression of integrin β1 in control cells (siC) (P=0.0024). Mean ± SD; n=12 (biological replicates). **, level of significance. Ero 1α, endoplasmic reticulum oxidoreductin 1 alpha.

Discussion

Tumor progression is a multifactorial process, where mutations and aberrant signals concur to increasing cancer cell ‘fitness’ in a given microenvironment. In this scenario, reactive oxygen species (ROS) play key hormetic roles particularly in secretory tumors (31). Several fundamental and intertwined aspects link ER redoxstasis to tumor progression: (I) efficient oxidative folding is crucial in terms of production control of angiogenic or adhesion molecules acting inter-cellularly; (II) H₂O₂ generated in the ER could potentiate tyrosine receptor signaling; and, (III) the secreted oxidase QSOX favors redox interchange in matrix proteins, and in turn metastasis (32-34).

Due to its essential activity in ensuring efficient oxidative folding (whilst by-producing H₂O₂) and due to the secretory nature of prostate epithelial cells, we investigated whether and how Ero 1α may affect PCa progression. An analysis of public datasets highlighted a positive correlation between Ero 1α expression and Gleason scores. Although weak, this correlation is consistently maintained in three different patients cohorts (35), both in terms of clinical and pathological scores. Since the Gleason grading system is directly related to a number of histopathological endpoints [including lymph-node vascular space invasion and risk of extra-prostatic extension and metastasis (36)], the observed positive correlation with Ero 1α acquires clinical relevance and can suggest a role over disease progression, as already recently suggested for pancreatic cancer (37) and other secretory malignancies (38).

Consistently, we observed increased Ero 1α protein expression in human surgical PCa specimens compared to control (i.e., the non-tumoral and BPH specimens). The limited number of samples analyzed so far likely accounts for the lack of a significant difference among groups. Further prospective sample collections are needed to clarify this issue. Additionally, among a panel of PCa cell lines, we found higher Ero 1α mRNA levels in the more malignant, androgen-independent cell lines (i.e., PC3 and Du145) compared to the less malignant, androgen-dependent LNCaP cells. Protein levels matched mRNA quantifications, with PC3 cells having the greatest Ero 1α protein contents. Interestingly, Ero 1α levels further increased in PC3 cells after establishment of docetaxel resistance. To this regard, it must be noted the link existing between the ER and the androgen/androgen receptor (AR) signaling during PCa progression. Moreover, various cytoprotective ER chaperons are known to be upregulated by AR stimulation; finally, the expression levels of AR and ER stress genes have been found co-regulated in PCa samples (39). These data encourage investigations on the role of Ero 1α as a pathogenic component and prognostic marker in PCa too.

Cancer’s common traits are increased proliferation, migration and invasion, unleashed from the normal control checkpoints (12); our findings revealed a role of Ero 1α in every above mentioned hallmark. Of relevance, Ero 1α suppression had a stronger effect on the highly metastatic PC3 compared to the non-tumorigenic RWPE-1 cells. Consistently, Ero 1α overexpression is reported to promote cell growth (23,37,40,41) and subsequent cell migration and invasion. These properties could be associated to the role of Ero 1α in oxidative protein folding. Moreover, an impaired Ero 1α activity might decrease the production of proteins necessary for efficient migration, invasion, and neoangiogenesis, as the case of the decreased cell-surface integrin-β1 expression, consequent to Ero 1α KO observed in colon cancer cells (40,42). Integrin-β1 activation mediates adhesion to the extracellular matrix, thus eventually impacting toward cancer cell migratory and metastatic capacity. This is consistent with our results showing impaired migratory-invasive properties of Ero 1α -silenced PC3 cells accompanied by decreased expression of integrin-β1. Accordingly, Ero 1α overexpression has been found linked to integrin-β1 activation (43).

Overall, with the dramatic results obtained upon silencing, our data provide a rationale for studying/considering Ero 1αas a novel target in advanced PCa therapies. This is also supported by some evidences recently reported in literature. In particular, Ero 1α has been found able to control PD-L1 expression (20) and block the PD1/PD-L1 pathway, thus being potentially effective in PCa treatment (44). Since anti-PD-1/PDL-1 therapies are explored in PCa too, targeting Ero 1α might allow to refine PCa immunotherapies (45,46).

Again, in hepatocellular carcinoma, Ero 1α stimulates the STAT3 pathway (17), which has a crucial role in PCa metastatic progression too (47). The hypothesis of considering Ero 1α as a therapeutic target in PCa is further supported by the robust correlations between Ero 1α and relapse or metastatic phenotypes in other malignancies (23,37). Interestingly, a specific targeting of Ero 1α is already under investigation in multiple myeloma (41): the viability of the Ero 1α knockout mice (40) indicate in fact that this has the potential to be a druggable molecule.

However, to clarify the basic question of sensitivity, specificity and prognostic validity, investigations of a large cohorts of healthy patients as well as PCa patients should follow.

Conclusions

Our novel findings clearly showed that Ero 1α levels are correlated with PCa progression. Of translational importance, selective Ero 1α downregulation inhibited PCa cell proliferation, migration and invasive capacity. As a whole, these observations make Ero 1α a potential prognostic marker and a target for therapeutic strategies and should be further explored.

Acknowledgments

The authors thank all members of Sitia’s laboratory and of URI-Urological Research Institute at IRCCS San Raffaele Hospital, Milan (IT) for their help and stimulating discussions; likewise, ALEMBIC Staff for precious help with the IncuCyte data analysis.

Funding: This work was supported by grants from Telethon (GGP15059), Associazione Italiana per la Ricerca sul Cancro (AIRC, IG 14559) and Fondazione Cariplo (2015–0591) to RS. JC and EP were generously supported by fellowships from the Department of Urology, Luzerner Kantonsspital, Lucerne (CH) and URI, respectively. Additionally, JC was kindly supported by the European Urological Scholarship Programme (EUSP) of the European Association of Urology (EAU).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at http://dx.doi.org/10.21037/tau-20-1025

Data Sharing Statement: available at http://dx.doi.org/10.21037/tau-20-1025

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tau-20-1025). Dr. RS reports grants from Telethon (GGP15059), grants from Associazione Italiana per la Ricerca sul Cancro (AIRC, IG 14559) and grants from Fondazione Cariplo (2015–0591), during the conduct of the study. The other authors have no conflict of interests to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised 2013). This study was approved by the institutional research committee CE-IRCCS San Raffaele (Registration-ID: URBAN) and informed consent was taken from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
