Stone removing efficiency and safety comparison between single use ureteroscope and reusable ureteroscope: a systematic review and meta-analysis

Introduction

As a minimally invasive surgical intervention, ureteroscopy has been widely used in the diagnosis and treatment of urolithiasis, urothelial tumor, and many other diseases (1). The use of ureteroscopies to treat related diseases has greatly increased; however, urologists and manufacturers of this device have expressed increasing concern about the cost-related issues associated with the use of this device. The flexible ureteroscope is a relatively expensive instrument in urology departments, and many cost-related studies have been published to help users of reusable ureteroscopes reduce costs (2-4). To address issues related to the costs associated with reusable flexible ureteroscopes (rfURSs), many types of single-use flexible ureteroscopes (sufURSs) have been introduced. Some studies have noted that the use of sufURSs in small-capacity medical centers has economic advantages (5-9). However, there is a lack of high-level evidence comparing the safety and efficacy between the sufURS and rfURS. In this study, published data were collected for a meta-analysis to examine the efficacy and safety of the 2 types of scopes. This systematic review was registered on PROSPERO (no. CRD42020181808). We present the following article in accordance with the PRISMA reporting checklist (10) (available at http://dx.doi.org/10.21037/tau-20-1399).

Methods

Original study search

The PubMed, Embase, Web of Science, and Cochrane Library databases were searched to identify relevant studies. The keywords used in the searches included “single-use ureteroscope,” and “disposable ureteroscope.” The reference list of every identified publication was manually screened by the authors to identify any studies that had not been captured in the database search procedure.

In accordance with the patient/population, intervention, comparison and outcomes (PICOS) principles, studies had to meet the following inclusion criteria to be included in the meta-analysis: (I) the patients had urinary stones that could be treated with an ureteroscopic lithotripsy or an upper urinary tract disease that could be diagnosed by an ureteroscopy; (II) the only intervention used was that of a ureteroscopic treatment; (III) the studies compared the sufURS and the rfURS; (IV) the results included basic outcome information (e.g., success rates and postoperative complications); and (V) either a randomized control trial (RCT) or a prospective study design was used. Studies were excluded from the meta-analysis if they met the following exclusion criteria: (I) the study examined previously published reviews; and/or (II) the study undertook a meta-analysis. Letters, comments, and conference abstracts were also excluded from the meta-analysis.

Research quality evaluation

In relation to the RCTs included in the meta-analysis, quality evaluations were conducted based on Jadad scores. All included nonrandomized studies were evaluated using the Newcastle-Ottawa Scale (NOS). The evaluation procedure was independently performed by 2 authors (YCM and ZYJ); in the event of a disagreement, KJW re-evaluated the authors’ decisions.

Data extraction and synthesis

This study compared the efficacy and safety of 2 types of ureteroscopes. The main disease examined in the included studies was urinary calculi. Thus, in terms of comparing efficacy, the main comparator was the stone-removal performance of the 2 types of scope. However, in terms of comparing safety, as the studies included did not provide any detailed information about complications, only the overall complication rate could be compared. Data on the number of stone-free patients, the number of patients with postoperative complications, and the total number of patients were extracted from the included studies. The data collection procedures were carried out and double checked independently by 2 authors (YCM and ZYJ). The data synthesis procedures were executed in a Stata 15.0 environment (Stata Corpor, College Station, TX, USA) with the help of RevMan 5.3 software (Cochrane). In the absence of special instructions, the results were defined as statistically significant if P<0.05. The 95% confidential intervals (95% CI) for the main outcomes were also provided. Relative risk (RR) was synthesized as the main estimate. Heterogeneity was mainly evaluated by I² tests. When I²>50%, heterogeneity was considered significant, and a random effects model was applied. To identify any potential factors that might contribute to heterogeneity, a subgroup analysis was performed to gather more information. A sensitivity analysis was used to test the stability of the meta-analysis results. Forest plots were produced to display the main results. In addition to funnel plots, Egger's and Begg’s tests were used to detect any publication bias. Any detected publication bias was reanalyzed using the trim-and-fill method to evaluate the effect of the publication bias on the meta-analysis results.

Results

Study selection

In total, 791 studies were identified from the database searches. After the screening procedures and quality evaluations had been applied, the original data, which were extracted from 6 studies, were included in the quantitative analysis (5,11-15). Figure 1 shows the screening flow chart. In all, 6 studies (comprising 887 patients) compared the stone-removal efficacy of the sufURS and the rfURS; 5 studies (comprising 952 patients) compared the overall safety of the sufURS and rfURS. Of the 6 studies, 2 studies were RCTs and 4 studies were prospectively designed. Table 1 provides detailed information about the included studies. Tables S1 and S2 display the Jadad and NOS scale results.

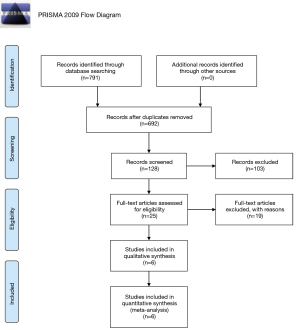

Figure 1 Study selection flowchart.

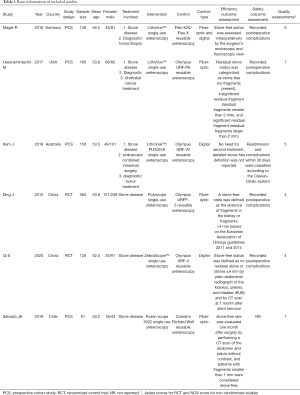

Table 1 Basic information of included studies
Full table

Stone-removal efficacy comparison

Data on the urinary stone treatment from the 6 studies (comprising 887 patients) were included in the efficacy comparison of the sufURS and rfURS. According to the overall synthesis results, no significant difference was found between the stone-removal efficacy of the sufURS and the rfURS [Mantel-Haenszel statistic (M-H), RR: 1.01, 95% CI: 0.96–1.07, P=0.658], and no significant heterogeneity was found (I²=35%, P=0.174). These results were consistent with the subgroup analysis of different rfURS types [sufURS vs. fiber-optic rfURS (M-H, RR: 0.99, 95% CI: 0.92–1.07, P=0.800) and sufURS vs. digital rfURS (M-H, RR: 1.05, 95% CI: 0.94–1.18, P=0.410)] (see Figure 2). According to the Egger’s (t=5.87, P=0.004) and Begg’s (z=2.25, P=0.024) test results, publication bias was suspected. The funnel plot was asymmetric (see Figure 3). As no significant heterogeneity was found, a further trim-and-fill analysis was conducted. The trim-and-fill results indicated that there might be three possible missing studies; however, both the original results and filled result were consistently nonsignificant (original RR: 1.01, 95% CI: 0.97–1.16, P=0.658; filled RR: 0.964, 95% CI: 0.917–1.011, P=0.151) (see Figure 4). Thus, the original results were stable. A sensitivity analysis was also performed, and no unstable omission was found (see Table S2). A further subgroup analysis was also conducted, and no significant association was found (see Table 2).

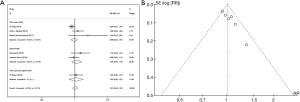

Figure 2 Forest plot of efficiency data synthesis and visualized publication bias analysis based on funnel plots, the overall analysis and subgroup analysis based on different rfURS results indicated that no significant efficiency difference was detected. (A) Forest plot of efficiency comparison between single use flexible ureteroscope and reusable flexible ureteroscope. (B) Funnel plot of efficiency comparison.

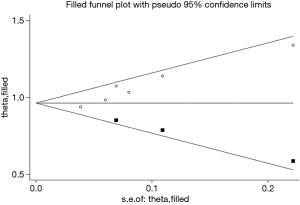

Figure 3 Trim-and-fill funnel plot. Small black cubes mean possible missing studies.

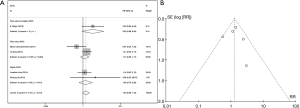

Figure 4 Forest plot of safety data synthesis and visualized publication bias analysis based on funnel plots, the overall analysis and subgroup analysis based on different rfURS results indicated that no significant safety difference was detected. (A) Forest plot of safety comparison between single use flexible ureteroscope and reusable flexible ureteroscope. (B) Funnel plot of safety comparison.

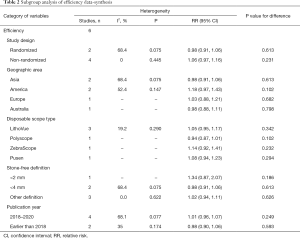

Table 2 Subgroup analysis of efficiency data-synthesis
Full table

Safety comparison

Data from 5 studies (comprising 952 patients) were included in the efficacy comparison of the sufURS and the rfURS. In relation to safety, no significant difference between the sufURS and the rfURS (M-H, RR: 1.30, 95% CI: 0.96–1.75, P=0.093) was found without significant heterogeneity (I²=31.3%, P=0.213). These results were consistent with the subgroup analysis (sufURS vs. fiber-optic rfURS: M-H, RR: 1.17, 95% CI: 0.80–1.71, P=0.409; sufURS vs. digital rfURS: M-H, RR: 1.26, 95% CI: 0.70–2.28, P=0.443] (see Figure 2B). The results of the Egger’s (t=0.72, P=0.524) and the Begg’s tests (z=0.24, P=0.806) showed no publication bias. The funnel plot was symmetrical (see Figure 3B). The sensitivity analysis showed that if the study by Usawachintachit [2017] was omitted, the pooled results would indicate that the rfURS was significantly safer than the sufURS (see Table S3). However, no significant association was found in the potential factor subgroup analysis (see Table 3).

Table 3 Subgroup analysis of safety data-synthesis
Full table

Discussion

Since the original flexible ureteroscope was invented in the 1960s, a series of technological innovations have led to the introduction many flexible ureteroscope types, such as the fibric scope and digital scope (1). Due to the expansion of its applications, the maintenance costs and other issues associated with rfURSs have gradually increased (16), and the sufURS was developed to address the issues related to maintenance.

This meta-analysis showed that there was no significant difference in the efficacy and safety of the sufURS and the rfURS. In the efficacy comparison, the Begg’s and Egger’s tests results showed a significant publication bias. In the subsequent trim-and-fill analysis, the results showed that 3 studies appeared to be missing. After the missing data was filled, the trim-and-fill results still showed that there were no significant differences between the sufURS and the rfURS (original RR: 1.01, 95% CI: 0.97–1.16; filled RR: 0.964, 95% CI: 0.917–1.011) (17). In relation to the safety comparison, the results of the sensitivity test were unstable. Thus, more clinical trials need to be conducted so that a more stable safety evaluation can be made.

In addition to the various direct and indirect costs associated with rfURS use that are incurred in the processes of sterilization, storage, and reprocessing, the high repairs cost that arise if a rfURS is damaged significantly increase its total maintenance costs (18). In some reports, the overall maintenance cost has been reported to be €384 per treatment case (9). Such costs might be unacceptable for small capacity institutions. According to previous research, the use of a sufURS may represent a good solution for small-scale medical institutions with less than 61 flexible ureteroscope cases per year, especially for those without a plasma standardization system (5). Additionally, in terms of cost-effectiveness, some published studies have noted that disposable ureteroscopes are more cost-effective than reusable ureteroscopes after a small number of procedures (7).

However, as a consumable, the primary material of the sufURS is plastic and many elaborate designs have been simplified. These design changes have reduced the weight of the main body, but they have also reduced its operability. This study also compared operation times and found that the operation time of the sufURS was significantly more than that of the rfURS [weighted mean difference (WMD): 7.943, 95% CI: 5.108–10.779, P<0.001] (see Figure S1). The comparison of the operation times was relatively heterogeneous; however, the results still suggest that the operability of sufURSs could be improved. In addition to increasing operation time, the reduced operability of sufURSs may also increase total complication rates and decrease overall efficacy. Given that the sufURS does not require repeated disinfection, we expected that it would have a higher level of performance in terms of the control of postoperative infections. However, according to the results of the safety data synthesis, there was no significant difference between the sufURS and the rfURS (M-H, RR: 1.30, 95% CI: 0.96–1.75, P=0.093). This may be because most hospitals that carry out clinical research adequately disinfect the rfURS. Many factors can affect the occurrence of postoperative infections; however, due to its nonreusable characteristics, the sufURS can predictably avoid contamination in the area of instrument disinfection. The sufURS appears to be comparable to the rfURS; however, the sufURS has many advantages. A proper disinfection and sterilization process has been developed, but the reuse of medical equipment can still lead to cross contamination. Additionally, being cleaned and disinfected too many times can also affect the service life of extremely vulnerable equipment, such as the rfURS. The use of disposable equipment completely eradicates this problem.

This study had a number of limitations. First, different reusable ureteroscopes were considered in this study, and while the subgroup analyses examined different reusable ureteroscope types, each subgroup’s study number was small. Second, only 2 RCTs were included in the meta-analysis, which could have led to the introduction of bias. Third, while 3 kinds of sufURSs were included in the quantitative analysis, these were all digital and were produced by different manufacturers, which also might have produced bias. Fourth, because of the included studies’ limited data, this meta-analysis only compared stone-removal efficacy. Thus, the efficacy of the sufURS in the treatment of other diseases, such as tumors, requires further investigation. Finally, only 6 studies were included in this meta-analysis. RCTs with larger sample sizes need to be conducted to enable more sound conclusions to be drawn.

Conclusions

The meta-analysis of the current evidence showed that the sufURSs and the rfURS are comparable in terms stone removal. Further, no compromising complications were found. The sufURS could represent a good choice for medical centers that have little ureteroscope maintenance experience and relatively few ureteroscope cases. However, the results of this study should be treated with some caution due to the limitations mentioned above.
