Robot-assisted laparoscopic retroperitoneal leiomyosarcoma resection with inferior vena cava graft replacement: a case report

Introduction

Leiomyosarcomas (LMS) represent 5–10% of soft tissue sarcomas and are more frequent in women, which could be influenced by pregnancy and estrogenic stimulation (1). Originating from the vascular bed, LMS are more commonly in the great vessels such as the inferior vena cava (IVC) and renal veins (2). Adjuvant chemotherapy, adjuvant radiotherapy and surgeries are all possible choices for leiomyosarcomas of IVC, but surgeries are the only potentially curative therapies and now the mainstay of treatments (3). Surgically negative margins are associated with improved survival rates, but no consensus exists about the necessity for great vessel reconstruction (4). Traditional laparoscopic operation of tumors near great vessels is challenging due to limitation of two-dimensional vision and range of motion. Robotic surgical systems (da Vinci Si^HD) have been adopted universally recent years, due to the three-dimensional vision, enhanced ergonomics and minimally invasive surgery (5). The retroperitoneal tumor near great vessels usually makes more demand for wide exposure and retraction of peritoneal organs. Therefore, robot-assisted laparoscopic surgeries facilitate the minimally invasive resection of tumors and seem to be the solution for these problems.

Up till now, a series of cases have been reported about robot-assisted laparoscopic resection of LMS from venous systems, but no vascular reconstruction has been performed (6-9). In this case, we present the first described report of robotic resection of retroperitoneal LMS with IVC reconstruction. The study received institutional review board approval and written informed consent was obtained from the patient. We also presented the following case in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/tau-20-1523).

Case presentation

In January 2020, a 45-year-old woman (165 cm, 55 kg) sought local medical advices for right abdominal pain and was referred to our tertiary care center in April. Vital signs were normal and no other symptoms appeared. The patient had no cardiac diseases history and blood pressure was monitored daily to be under control.

In January 2020, an enhanced computed tomography (CT) scan in the local hospital identified a 46 mm × 45 mm retroperitoneal mass near right adrenal gland, right renal vein and IVC (Figure 1A). Magnetic resonance imaging (MRI) further indicated that IVC was obviously occluded and the left renal vein was locally compressed (Figure 1B). The serum level of potassium, epinephrine, norepinephrine, cortisol, adrenocorticotropic hormone and renin angiotensin aldosterone system were all in normal ranges (data not shown). The glomerular filtration rate (GFR) was also normal (115.9 mL/min) preoperatively. In April 2020, an enhanced MRI and ultrasound in our care center were performed respectively again to assess the features of the mass including local tumor invasion, tumor size and IVC wall infiltration (Figure 1C,D). It was reported that the porta hepatis and pancreas were slightly pressed upward by the mass and the right renal artery was pushed downward. IVC and the distal part of left renal vein were invaded by the tumor and compression was obviously seen from MRI imaging. Three-dimensional reconstruction was also conducted to explicitly reveal tumor position and vessel shifts from the posterior direction (Figure 1E).

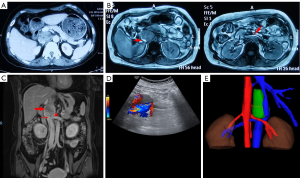

Figure 1 The tumor was assessed by imaging study. (A) CT scan indicated the tumor was near right adrenal gland and IVC. (B) MRI showed occlusion of inferior vena cava (left arrow) and local compression of left renal vein (right arrow). (C) An enhanced MRI was performed again to assess the tumor size (broad arrow) and tumor invasion of IVC (slim arrow) and left renal vein (short arrow). (D) Ultrasound indicated tumor invasion of IVC and local left renal vein. (E) Three-dimensional reconstruction of MRI image explicitly revealed tumor position (green) between veins (blue) and arteries (red) from the posterior direction. CT, computed tomography; MRI, magnetic resonance imaging; IVC, inferior vena cava.

During the operation, the patient was placed in the left lateral decubitus position (with the right side elevated ~70˚) under general anesthesia and monitored by continuous central venous and arterial pressure monitoring. A six-port approach was used to insert the trocars (Figure 2). After pneumoperitoneum establishment, a robotic camera was inserted to examine adhesion of bowels and whether there were obvious indications against performing the surgery. The mass was dissected carefully from adhesive adipose tissues and the tumor was then exposed to our sight (Figure 3A). The fascia was circumferentially dissected from the tumor and vessels were then exposed. 8Fr red-rubber catheters were wrapped twice around the cephalic IVC, left renal vein (LRV), caudal IVC and right renal vein (RRV) sequentially and clamped by Hem-o-lok clips (Figure 3B). The tumor was completely resected and adherent part of IVC (approximately 5 cm) was dissected (Figure 3C). Considering severe impairment of IVC, we decided to replace excised caval segment with a synthetic graft in an end-to-end fashion. Interposition graft is accepted when there exists en bloc IVC resection and extended polytetrafluoroethylene (ePTFE) graft is the preferred material as it has a high reported patency rate. After heparinization, the graft was placed between the cephalic IVC and caudal IVC in an end-to-end fashion. The RRV was also be included in the reconstruction by jointing its free end to the interposition graft (Figure 3D). Due to the continuity of the graft, the remaining LRV was clamped by Hem-o-lok clips and isolated with ligation (Figure 3E). An omental pedicle was fashioned to cover the synthetic graft and prevent graft to contact with bowels (Figure 3F). The tumor was placed in a specimen bag and the specimen subsequently underwent pathological examination.

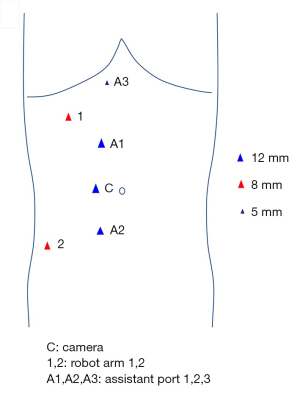

Figure 2 Trocar placement for the surgery. A six-trocar technique was applied for the surgery. One 12 mm trocar near the umbilicus was the designated camera port (point C). Camera port, robot arm port 1 (near the liver margin) and 2 (above the anterior superior iliac spine) formed approximate 120 angular degree. Assistant port A1and A2 were 8cm from the camera port. A 5 mm trocar under the liver margin near the midclavicular line was used as the assistant port for liver retraction (point A3).

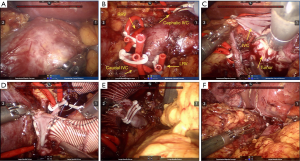

Figure 3 Surgical procedures of the operation. (A) Dissection of adipose tissues and exposure of the mass. (B) Ligation of cephalic IVC, caudal IVC, RRV and LRV. (C) Dissection of tumor from IVC. (D) Jointing of RRV free end to the interposition graft. (E) Isolation of LRV by Hem-o-lok clips. (F) Prevention of the synthetic graft from bowels. IVC, inferior vena cava; RRV, right renal vein; LRV, left renal vein.

The operative time was 9 hours 45 minutes and the IVC clamp proportion was 6 hours 50 minutes. The estimated blood loss was about 2,000 mL and the patient was transfused blood plasma with 600 mL intraoperatively. Anticoagulants (low molecular weight heparin, LMWH) were routinely subcutaneously injected with 4,000 units twice a day after operation. Lower extremity edema transiently occurred and it disappeared one week after the surgery. During hospitalization, the patient was asked to make an ultrasound and enhanced MRI examination one week postoperatively. The ultrasound indicated that there was a 45-mm filling defection in the upper synthetic graft, which was in accordance with D-dimer 2.97 mg/L (Figure 4A). The blood flow velocity of renal artery was 78 (left) and 81.9 cm/s (right) respectively (Figure 4B). Three-dimensional reconstruction of MRI revealed that the graft was partially occluded by thrombus and we thought that venous return may flow through lumbar vein to hemiazygos vein system (Figure 4C). The continuity of right renal artery imaging was interrupted and signaling of the right kidney was weaker than the left one, which implied stricture of right renal artery (Figure 4D). Considering the existence of thrombus, the anticoagulant was changed to rivaroxaban by oral administration for three months. The pathological examination finally confirmed that the tumor was retroperitoneal leiomyosarcoma (53 mm × 50 mm × 38 mm size) with grossly negative margins R0 (which means no residual tumor) (Figure 4E). The patient was discharged 11 days postoperatively and came back in three months for reexamination. Abdominal pain was resolved and vital signs were normal. No lower-extremity edema was found. Ultrasound indicated that blood flow signals were weak in the ePTFE interposition graft. Dynamic renography revealed that GFR of the left kidney was normal with 63.7 mL/min. However, GFR of the right kidney was significantly decreased to 27.4 mL/min, which indicated right renal insufficiency. Enhanced MRI was also performed to assess the status of embolus in the graft, which seemed that the filling defection was smaller than before (Figure 4F). Due to the financial stress, the patient returned to the local hospital for further treatments.

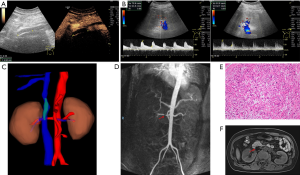

Figure 4 Outcomes of postoperative examination. (A) The ultrasound indicated a 45 mm filling defection in the upper synthetic graft. (B) The blood flow velocity of renal artery was 78 cm/s (left) and 81.9 cm/s (right) respectively 6 days postoperatively. (C) Three-dimensional reconstruction of MRI revealed that the graft was partially be occluded by thrombus one week postoperatively. (D) The continuity of right renal artery imaging was interrupted (arrow) one week postoperatively. (E) The pathological examination confirmed that the tumor was retroperitoneal leiomyosarcoma with negative margins R0 (under 100× magnification). (F) Embolus (arrow) in the graft seemed to be smaller 3 months after operation. MRI: magnetic resonance imaging.

Patients and methods

The patient who underwent the surgery was included from the Wuhan Union Hospital urological center. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

Hematoxylin and eosin (HE) assay: The tumor sample was fixed with 4% paraformaldehyde for 12 h. The sections were treatment for deparaffinage in xylene, rehydrated in ethanol, rinsed in distilled water. After fixation with formaldehyde, sections were stained with hematoxylin and eosin followed by dehydration in graded alcohol. The sections were mounted on glass slides previously treated with poly-L-Lysine and examined under a morphometric microscope.

Discussion

Leiomyosarcomas (LMS) of vascular origins are a rare group of tumors and occur more frequently in women. They are originated from the endothelial smooth muscle and prone to invade adjacent structure by both intra and extraluminal spread (3). Symptoms are determined by the degree of collateral blood flow of the affected segment, the location and the growth rate of tumor (1). Most LMS of vena cava develop on the upper third or the supra-hepatic region and those of mid-portion involves the renal and liver veins (10). Local recurrence is reported in 40% of the cases and metastasis commonly occurs in in liver, kidney, lung and bone (11). Enhanced CT, MRI and cavography are useful to define characteristics of the tumors, invasion status and collateral circulation (12,13).

Adjuvant radiation has been shown to decrease local recurrence and facilitate negative margins, but not to benefit survival for leiomyosarcoma of the IVC (14). Some surgeons prefer preoperative radiation therapy based on the conceptions that IVC is arterialized and handle of this kind of thickened wall is greatly improved (4). Chemotherapy are reserved for patients with postoperative distant metastasis, but the efficacy of chemotherapy, whether preoperative or postoperative, is poorly defined and very limited (15).

Till now, no consensus has been made on the optimal management of the IVC, which include ligation, patch angioplasty, or graft replacement (3). Some authors have advocated for primary or patch repair to minimize lower extremity edema whenever feasible and chosen ligation of the IVC as an alternative choice (16). It has been reported that lower extremity edema occurs in more than 50% of cases when no IVC reconstruction is undertaken (4). The reason for this is that resection of large retroperitoneal tumors may disrupt venous collaterals, which predisposes patients to developing edema when the IVC is ligated. In our study, the patient, who had transient lower extremity edema symptom and recovered, may benefit from IVC reconstruction. In some cases, patients were undertaken ligation without reconstruction despite complete occlusion of the IVC. This strategy was supported by the facts, which included reduced operative time, prevention of lower extremity deep venous thrombosis, potential lifelong anticoagulation and heart failure from creation of arteriovenous fistulas (4). Although lower extremity edema still existed, but the surgeons believed that this was transitory and well-tolerated phenomenon. Some authors favored graft replacement which demonstrated excellent patency rates with minimal complications. One series of patients undergoing ePTFE graft reconstruction demonstrated 75% late patency rates and no patients were associated with edema (17). Another series of 47 patients with en bloc resection of IVC reported 92% patency rates with 2% graft-related complication rate at 5 years (18). In our study, the reason for graft replacement was that the patient may benefit from this due to the young age. Simple ligation without reconstruction will cause venous reflux syndromes in the long term. Even if the thrombosis occurred, it could be rescued by anticoagulation or filter/stent implantation. Based on our experience, we changed anticoagulants from LMWH to rivaroxaban and asked the patient to follow the prescription for three months. With the improvement of vascular surgery technology, we advocate patch angioplasty or reconstruction whenever possible, as it restores IVC continuity.

As for better exposure of IVC, traditional open approaches prefer a right thoracoabdominal incision, a thoraco-phreno-laparotomy, a combination of median laparotomy and sternotomy and a midline laparotomy incision with a subcostal extension or an extended Kocher maneuver (19). Assistant with auxiliary ports and excellent ergonomics, the robotic laparoscopic system achieves both minimal invasion and better exposure. Till now, one case has been reported about resection of IVC leiomyosarcoma using robot-assisted laparoscopy in a thoracoabdominal approach without vascular management (20). However, in our study, we conducted the operation entirely under robotic surgical systems and performed IVC reconstruction due to the large segment of impairment.

Last but not the least, surgical managements of this study were concluded and may be valuable for surgeons. Before the surgery, the patient was not undertaken biopsy based on the concern that the mass was tightly adhered to the great vessels. Addition to the LMS, the tumor was also suspected to be pheochromocytoma, ganglioneuroma or lymphoma. Though the serum level of epinephrine, norepinephrine, cortisol, adrenocorticotropic hormone and renin angiotensin aldosterone system were all normal, the patient was preventively treated with α-blocker and fluid resuscitation one week before surgery. It was revealed from the imaging preoperatively that the porta hepatis was slightly pressed upward with no invasion. Therefore, we chose to retract the liver to expose hepatic pedicle rather than blockade during operation and the liver function exhibited normal levels postoperatively. Owing to the unexposed sight of right renal artery, the accidental injury occurred intraoperatively and thus the patient suffered from right renal insufficiency with lower GFR rate. However, the serum creatinine and total GFR reversed to the normal level just 2 days postoperatively and dynamic renography revealed that GRF of the left kidney was 63.7 mL/min three months postoperatively. These results indicated that long time ligation of the left renal vein during surgical procedures was safe and acceptable options for surgeons.

Leiomyosarcomas of IVC present a technical challenge to surgeons. Comprehensive preparation should be made preoperatively to facilitate tumor resection and vascular management. To our knowledge, this is the first case report of a robot-assisted laparoscopic approach for en bloc removal of a large LMS and IVC reconstruction with ePTFE graft. We believe that in specific cases, robotic resection of leiomyosarcoma is acceptable with experienced surgeons and if possible, vascular repairment is favored to restore its continuity.
