Urothelial carcinoma of the renal pelvis with renal vein and inferior vena cava tumor thrombus: case series and literature review

Introduction

Urothelial carcinoma (UC) of the renal pelvis accounts for 5% of all UC (1). Renal vein and inferior vena cava (IVC) tumor thrombus (TT) usually develop in renal cell carcinoma (RCC), and the incidence of venous TT varies from 4% to 10% in RCC (2). However, the incidence of venous TT is extremely low in renal pelvic UC. It is reported that the incidence of IVC TT was 48 times higher in RCC than that in renal pelvis UC (3). Literatures reporting renal pelvis UC with venous TT were limited and there were only several case reports (4-24). There were eight patients with renal pelvis UC and venous TT undergoing surgery in our center. In this study, we reported our experience in the management of eight patients with renal pelvis UC and venous TT, and reviewed the pertinent literatures (25-29). We present the following article in accordance with the AME Case Series reporting checklist (available at https://dx.doi.org/10.21037/tau-21-253).

Methods

Patients

From March 2016 to January 2019, 247 patients were pathologically diagnosed with upper tract UC and underwent surgery at our institution. And there were only eight patients pathologically confirmed renal pelvis UC with venous TT during the study period at our institution. All the renal pelvis UC patients with venous TT underwent radical nephroureterectomy and thrombectomy. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The present study was approved by the Institutional Ethics Committee of our hospital (No. S2019229) and individual consent for this retrospective analysis was waived.

Clinical characteristics including age, gender, laterality, body mass index (BMI), symptoms, preoperative diagnosis, preoperative and postoperative serum creatinine (SCr), tumor node metastasis (TNM) stage, operative approach, pathological outcomes, adjuvant therapy, and prognosis data were collected and reviewed. Preoperative enhanced computed tomography (CT) (Figure 1) or magnetic resonance imaging (MRI) (Figure 2) were performed in all patients. The venous TT was classified according to Mayo Clinic classification (30). Perioperative complications were graded according to Clavien-Dindo system (31). All surgeries were performed for curative purpose. The surgical steps of radical nephrectomy and thrombectomy in our center were described in the previous publication (32), but we performed radical nephroureterectomy and thrombectomy when preoperative diagnosis was UC. For level-0 TT, renal vein was clamped before the entrance to IVC. For IVC TT, when TT did not invade the IVC wall, thrombectomy was performed and the incision of the IVC wall was sutured continuously (Figure 3). When TT invaded the IVC wall, the invaded IVC wall was resected. If the remaining IVC wall was more than half of the original diameter, the reconstruction was performed to prevent IVC stenosis. If it was less than half, there was no need for reconstruction. When TT circumferentially invaded the IVC wall, complete transection of the IVC was needed. There was no need of renal vein reconstruction for the left kidney because of abundant collateralization, but renal vein reconstruction is necessary for the right kidney in order to achieve sufficient blood reflux. Patients were advised to receive chemotherapy or immunotherapy after surgery according to their physical conditions and pathological outcomes. Patients were followed up every 3 months postoperatively. The median follow-up time of the patients was 11.5 months.

Figure 1 CT image showing the right renal pelvis urothelial carcinoma and venous tumor thrombus.

Figure 2 MRI image showing the right renal pelvis urothelial carcinoma and venous tumor thrombus.

Figure 3 The intraoperative photographs of dealing with inferior vena cava tumor thrombus. (A) The inferior vena cava was clamped using a Satinsky clamp; (B) the inferior vena cava was incised, and the tumor thrombus was exposed; (C) the incision on the inferior vena cava then was sutured continuously.

Statistical analysis

All analyses were performed with SPSS^® Statistics, version 24.0 (IBM Corporation, Somers, NY, USA).

Results

The clinicopathological parameters, surgical variables and oncological outcomes of the eight patients were shown in Table 1. There were five males and three females. The mean age of the patients was 66.6 years (ranging from 52 to 84 years). Their main symptoms are flank pain (n=4) and gross hematuria (n=4). The preoperative diagnosis of 7 patients was renal pelvis UC and 1 patient was RCC. The mean tumor size was 6.7 cm. Mayo Clinic classification demonstrated that there were 4 level-0 (1 left side and 3 right side), 2 level-I (right side), and 2 level-II (right side) venous TT. Half the patients underwent retroperitoneal laparoscopic radical nephroureterectomy with thrombectomy, and the other half underwent open procedures. Two of the patients underwent IVC transection, because of the circumferential invasion of the IVC wall. Besides, all the patients underwent lymph node dissection (LND). The perioperative mortality rate was 0%. The mean operative time was 298.9 [197–494] minutes. The mean estimated blood loss was 493.8 [100–1,700] mL, and three patients received blood transfusion. There was no significantly difference between the preoperative mean SCr (98 µmol/L) and the postoperative mean SCr (99.5 µmol/L) (P>0.05). One patient developed renal insufficiency and hyperkalemia, one cerebral infarction, and one chest distress after surgery. They gradually recovered after conservative therapy. The other patients had no procedure-related complications. The drainage tube was removed 3–13 days after surgery, the mean time of removing drainage tube was 6.5 days. Postoperative pathology revealed renal pelvic high-grade UC (Figure 4). Six patients had lymph node metastasis.

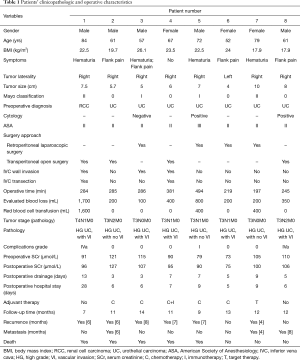

Table 1 Patients’ clinicopathologic and operative characteristics
Full table

Figure 4 The macroscopic image and photomicrographs of the resected specimen. (A) The macroscopic image of specimen; (B) the pathological specimen shows urothelial carcinoma in the renal tumor (H&E; original magnification, ×100); (C) the pathological specimen shows urothelial carcinoma in tumor thrombus (H&E; original magnification, ×50).

Four patients underwent chemotherapy and one chemotherapy combined with immunotherapy after surgery. Two patients did not receive adjuvant therapy. Patient 2 received chemotherapy with gemcitabine and cis-platinum in another hospital. Patient 3 received chemotherapy with gemcitabine (1.6 g) and nedaplatin (60 mg), and received radiotherapy for recurrence. Patient 4 had chemotherapy and immunotherapy in other hospital, but there was no detail recorded. Patient 5 had chemotherapy with gemcitabine and cis-platinum in another hospital. Patient 6 had chemotherapy with gemcitabine and cis-platinum in another hospital. Patient 7 was considered as RCC in another hospital and received targeted therapy before surgery. Then, she underwent surgery in our center, and pathological result showed UC. She did not receive adjuvant therapy after surgery.

All the patients were followed up. The mean follow-up time was 11.1 months, five patients died of UC after surgery. The survival time was 7, 9, 11, 11, 14 months, respectively. The disease-specific survival rate is 62.5%. Three patients were alive, and two of them developed recurrence and lung metastasis. One patient had no metastasis or recurrence.

Discussion

Compared to RCC, renal pelvis UC with venous TT was extremely rare. We reviewed pertinent literatures, and found that there were only 49 patients reported and most literatures were case reports (Table 2). Our study reported 8 cases of renal pelvis UC with venous TT and it was the largest sample size report with detailed information at present.

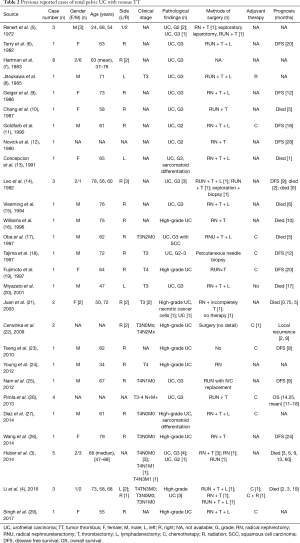

Table 2 Previous reported cases of renal pelvic UC with venous TT
Full table

In our study, the main symptoms of renal pelvic UC with venous TT were flank pain and gross hematuria, which were not specific. The diagnosis mainly relied on enhanced CT or MRI. CT, MRI, or angiography could effectively detect venous TT and evaluate the extent of venous TT. However, it is sometimes difficult to distinguish renal pelvis UC from RCC when the tumor is concomitant with TT. Because the imaging manifestations are not so specific. Thus, making correct preoperative diagnosis is not easy. In our study, Patient 1 was misdiagnosed as RCC before surgery. The CT and MRI of Patient 1 are Figure 5. It showed that an irregular low-density mass was in the right renal, and the reniform shape of the kidney was distorted. Given the rare incidence of renal pelvis UC with venous TT, the first patient in our center was considered as RCC.

Figure 5 The imaging pictures of Patient 1. (A) The CT image of Patient 1; (B) the MRI image of Patient 1.

A previous study demonstrated that CT was useful in distinguishing renal pelvis UC from RCC. The main identification points are as follows: (I) the tumor is in the center of the collecting system; (II) the pelvicalyceal system may present a focal filling defect; (III) no obvious changes appears in the reniform shape of the kidney; (IV) the tumor lacks necrotic or cystic change; (V) the tumor exhibits homogeneous enhancement; and (VI) the tumor grows toward the ureteropelvic junction (33). Besides, Tseng et al. proposed that the infiltrating growth pattern and maintaining the reniform shape of kidney are more likely to indicate UC (23). Some researchers suggested that retrograde pyelography, urine cytology, and biopsy should be performed along with CT, and these tests were helpful for the differential diagnosis of renal pelvis tumor (34). It was crucial to make a proper preoperative diagnosis on the type of tumor, which determines the choice of the operative methods.

Open radical nephroureterectomy with thrombectomy was the safe and feasible treatment for renal pelvis UC with venous TT (4,21). With the development of laparoscopic and robot-assisted laparoscopic technique, these minimally invasive methods were also applied to such cases (28). The exact role of surgery in the management of renal pelvis UC patients with venous TT is not defined, because of the limited available literature. In our opinion, for non-metastatic renal pelvis UC patients with venous TT, surgery could reduce tumor loading, and might be helpful to improve the survival. We successfully performed retroperitoneal laparoscopic radical nephroureterectomy with thrombectomy in 4 patients and open procedures in the other four patients. Three patients developed complications after surgery. One patient developed renal insufficiency and hyperkalemia, one cerebral infarction, and one chest distress after surgery. In renal insufficiency case, the TT circumferentially invaded the IVC wall, and the complete transection of the involved IVC was performed. As the involved IVC was above renal vein level, the anastomosis of left renal vein and IVC was performed. We speculated that solitary kidney ischemia reperfusion injury and incomplete compensation of collateral circulation might cause the renal insufficiency. The renal function of the patient gradually recovered after conservative treatment. The complication rate was 37.5% in our study. Because the number of renal pelvis UC and venous TT reported is limited, the complications reported was also limited. Concepcion RS et al reported a UC patient with TT complicated by restrictive pulmonary insufficiency, resultant renal vein thrombosis and renal failure. And this patient died 31 days after surgery (13). Cerwinka et al. reported two patients complicated by pulmonary embolism (22). There was no complication rate of renal pelvis UC and venous TT reported. However, previous studies showed that radical nephrectomy with thrombectomy was related to major perioperative morbidity (range, 50–78%) and mortality (range, 2.7–8.3%) (35-37). Compared with this, we believe that our complication rate is acceptable.

Patients with renal pelvis UC and venous TT have a poor prognosis. Previous reports showed that 8 patients with renal pelvis UC and venous TT died within 6 months after surgery (20). In our study, five patients died of UC within 14 months after surgery, which is in agreement with the previous findings. Besides, the eight patients in our center had late stage (T3–4) and high-grade, which also might be related to the poor prognosis. As for TT, it has an influence on the prognosis of RCC. For renal pelvis UC, it is difficult to analysis the influence of TT on patient, because of the limited number of patients. On the whole, we believe that both TT and unfavorable pathology had a bad influence on prognosis. For the eight patients, chemotherapy was the primary adjuvant therapy (5/8). At that time, no clear evidence exists either to support or oppose the use of neoadjuvant chemotherapy. And some patients’ performance status was poor and some patients in our study refused to receive neoadjuvant chemotherapy. Thus, these patients were not offered neoadjuvant cisplatin-based chemotherapy in our study. Compared with adjuvant chemotherapy, the neoadjuvant therapy may reach a better outcome, because some patients might not be tolerance to chemotherapy after nephrectomy. However, if neoadjuvant chemotherapy is considered, the diagnosis should be assured by pathological examination. Besides, the patient’s preference and performance status should be taken into consideration when choosing neoadjuvant therapy.

We admit that the current study has some limitations. First, its retrospective nature is a shortcoming, and may cause some bias. Second, the sample size of this study is small, due to the low incidence of renal pelvis UC with venous TT. Thus, a multi-center study with large sample size is needed. Third, the follow-up time was short. Fourth, all the patients in this study did not have neoadjuvant cisplatin-bases chemotherapy. Thus, we cannot evaluate the therapeutic effect of neoadjuvant chemotherapy.

Conclusions

Renal pelvis UC with renal vein and IVC TT is rare. A correct preoperative diagnosis is greatly important to determine surgical strategy. Radical nephroureterectomy with thrombectomy was a safe and feasible operative method in such cases. Chemotherapy was the main adjuvant therapy option. However, the prognosis of renal pelvis UC and venous TT is very poor. More cases are needed for further research.

Acknowledgments

We are grateful to the entire staff in Department of Urology, Peking University Third Hospital.

Funding: This work was supported by Key Clinical Projects of Peking University Third Hospital (BYSYZD2019032) and the Fundamental Research Funds for the Central Universities: Special Projects for Strengthening Basic Research of Peking University (BMU2019JC001).

Footnote

Reporting Checklist: The authors have completed the AME Case Series reporting checklist. Available at https://dx.doi.org/10.21037/tau-21-253

Data Sharing Statement: Available at https://dx.doi.org/10.21037/tau-21-253

Peer Review File: Available at https://dx.doi.org/10.21037/tau-21-253

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/tau-21-253). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The present study was approved by the Institutional Ethics Committee of our hospital (No. S2019229) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
