The accuracy of prostate cancer diagnosis in biopsy-naive patients using combined magnetic resonance imaging and transrectal ultrasound fusion-targeted prostate biopsy
Introduction
Prostate cancer (PCa) is the fourth most common cancer diagnosed and the sixth most common cause of cancer death in Japanese males (1). To date, screening for PCa using prostate-specific antigen (PSA), digital rectal examination (DRE), and transrectal ultrasound (TRUS), based on several guidelines, remains controversial (2). Although the PSA test is widely used and seems to increase the detection of PCa of any stage (3), it has a poor specificity for clinically significant PCa (csPCa); hence, approximately 60–70% of patients with increased PSA levels who underwent initial biopsies have negative PCa results (4). Additionally, up to 45% of patients diagnosed with PCa are at low-risk according to the D’Amico risk stratification (2,5). The use of DRE as a screening modality is not recommended because there is a lack of evidence regarding its benefits. Therefore, DRE was not included in the major screening trials (6). Furthermore, the presence of hypoechoic lesions on TRUS is not always specific to PCa; therefore, the accuracy of TRUS in diagnosing PCa relies on the operator’s knowledge and experience (7-9).
TRUS-guided systemic biopsy (TRUS-GB) through the transperineal route is one of the standard techniques for detecting PCa and avoiding PB-related infectious complications. The technique can help collect 10–14 template cores of the prostate (10-12). However, TRUS-GB is known for its low sensitivity and specificity in detecting PCa, with an overall cancer detection rate of 27–40.3% (2,13). Furthermore, 750,000 men diagnosed with suspicious PCa using the aforementioned screening modalities underwent unnecessary biopsies, with the accompanying pain, inconvenience, financial burden, and risk of infection (14). Therefore, it is necessary to identify and improve alternate methods of diagnosis in patients with positive predictive values so as to avoid unnecessary biopsies (15).
Multiparametric magnetic resonance imaging (mpMRI), including T2-weighted imaging (T2WI), diffusion-weighted imaging, and dynamic contrast material enhancement, is a powerful tool for identifying csPCa (12,16,17). Additionally, in 2012, the European Society of Urogenital Radiology recommended using the Prostate Imaging Reporting and Data System (PI-RADS) to determine whether lesions detected by mpMRI reflect PCa risk (18). In 2015, PI-RADS version 2 (PI-RADS v2) simplified the rules for reporting modified imaging sequences for identifying csPCa (19). Men who had positive results on the mpMRI underwent MRI-targeted biopsy with the use of real-time ultrasonographic guidance (20). However, it is possible to miss csPCa using MRI-TRUS fusion targeted biopsy (FUS-TB) alone (21).
Thus, this study aimed to estimate whether FUS-TB increases the detection rates of csPCa compared with TUR-GB.
We present the following article in accordance with the STARD reporting checklist (available at https://dx.doi.org/10.21037/tau-21-250).
Methods
Patients
This retrospective study enrolled 580 consecutive patients who had undergone mpMRI before prostate biopsy (PB) from February 2015 to February 2020 at Chuno Kosei Hospital. We reviewed their clinical and pathological records, focusing on PI-RADS v2 scores ≥3 and serum PSA levels in the range 2.5–20 ng/mL (19). According to the 2010 American Joint Committee on Cancer Staging Manual, we excluded patients with lymph node involvement, distant metastases, or clinical stage T4 tumors from the study (22). We also excluded patients with urinary tract infections, those who had undergone PB before 2014, and those with a serum PSA level of >20 ng/mL.
The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study protocol was approved by the Institutional Review Board of Chuno Kosei Hospital (R2-7) and Gifu University (30-031) and informed consent was taken from all the patients.
mpMRI protocol
Prior to PB, mpMRI was performed with Phillips Achieva 1.5 Tesla system (Philips Medical Systems, Best, The Netherlands) using a 5-channel sensitivity Encoding parallel imaging cardiac coil covering the entire prostate. PI-RADS v2 criteria were used to describe the mpMRI findings, and this was done by two radiologists with more than 10 years of clinical experience each.
Prostate biopsy protocol
A cleansing enema and antibiotics were used before biopsy in all patients. An 18-G BARD® MAX-CORE® disposable core biopsy instrument (C.R. Bard Medical, United States) was used to perform TRUS-GB under local anesthesia. Transrectal PB, including TRUS-GB and FUS-TB, was performed by an experienced single urologist (HU) using Urostation® between February 2015 and March 2018 or using TRINITY® between April 2018 and February 2020 (Koelis, Meylan, France) with the three-dimensional (3D)-TRUS-based biopsy mapping technique. MRI images were imported into the Urostation® or TRINITY®. The contour of the prostate was delineated on T2WI, and a target was marked using the resizable circle. Following DRE, the 3D-TRUS probe (end-fire 3D-transrectal transducer) was inserted into the rectum. The entire prostate was scanned by 3D-TRUS, with the probe kept in the same place, and the image created was saved in the workstation. Subsequently, the probe was moved from the apex of the prostate to the base and from side to side until an angle of 60° was covered in all direction. This provided a panoramic view of the entire prostate. Before FUS-TB, the biopsy needle position was checked virtually using 3D mapping (Figure 1A). After confirming the position of the target within the prostate, the biopsy needle was inserted and PB was performed. The position of the biopsy core from which the sample is to be collected was checked again using 3D mapping (Figure 1B,C). If the biopsy core did not penetrate the center of the target, we performed a re-biopsy at a similar position. For suspicious lesions on biparametric MRI (PI-RADS v2 scores ≥3), 2–4 targeted cores were usually selected depending on lesion size. Subsequently, we obtained 10–12 cores—including medial and lateral cores from bilateral sextant prostate regions where no indications of PCa were noted on mpMRI—for TRUS-GB. The complications according to the type of PB were evaluated according to the Clavien–Dindo classification (23).
Pathological analysis
The PB specimens were evaluated by a single pathologist at Chuno Kosei Hospital according to the 2005 International Society of Urological Pathology guidelines (24). The definition of csPCa was having at least one core with a Gleason score (GS) of 3+4 or 6 and a maximum cancer core length (MCCL) ≥5 mm. Insignificant cancer was defined as having a core with a GS ≤6 and an MCCL ≤4 mm (25).
Endpoints
Based on the PI-RADS v2 criteria, the PCa detection rate (PCDR) on mpMRI was defined as the primary endpoint in patients who were suspected of having PCa (i.e., csPCa or clinically insignificant PCa) via the combined FUS-TB and TRUS-GB. Based on the PI-RADS v2 score and GS obtained from the PB samples, the detection rate of csPCa was defined as the secondary endpoint.
Statistical analysis
Data were analyzed using the Statistical Package for the Social Sciences software version 19.0 (International Business Machines Corp., Armonk, NY, USA). We used Student’s t-test or Mann-Whitney U test and the McNemar test to compare continuous variables and categorical variables, respectively. All P values were two-sided, and statistical significance was set at P˂0.05.
Results
Patient demographic
This study enrolled a total of 391 patients, 300 of whom (76.7%) were diagnosed as having PCa after PB. The median age and initial PSA level were 71 years [interquartile range (IQR), 67–77 years] and 6.03 ng/mL (IQR, 4.62–8.96 ng/mL), respectively. Abnormal DRE was observed in 66 (16.9%) patients. According to PI-RADS v2 criteria, 159 (40.7%), 186 (47.6%), and 46 (11.7%) patients were diagnosed with category 3, 4, and 5 PCa, respectively.
All the complications related to PB were ≤ grade 2 according to the Clavien-Dindo classification. None of the patients died or was readmitted due to PB.
Comparison of cancer detection

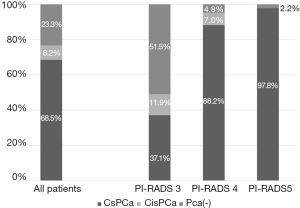

PCDRs according to the PI-RADS v2 criteria are shown in Figure 2. A total of 76.7% of the patients with PI-RADS v2 score ≥3 was diagnosed with PCa. The PCDRs in patients with PI-RADS v2 score of 4 or 5 were significantly higher than those in patients with PI-RADS v2 of 3 (3 vs. 4, P<0.001; 3 vs. 5, P<0.001; 4 vs. 5, P=0.073). Of these, 113 patients (37.7%) were diagnosed with PCa using FUS-TB alone, while 43 patients (14.3%) who tested negative in FUS-TB were left undiagnosed. The PCDR of csPCa was 46% for those who underwent combined FUS-TB and TRUS-GB.
Table 1 shows the comparison between FUS-TB and TRUS-GB for PCDR. The detection rates of PCa and csPCa following FUS-TB were significantly higher than that those following TRUS-GB.
Full table
The association between Gleason score and the method of prostate biopsy regarding clinically significant PCa
Details of the patients diagnosed with csPCa using PB samples are shown in Table 2. Following PB, the concordance rate of both csPCa and GS or no evidence of PCa was 48.8%. FUS-TB was associated with a significantly lower rate of diagnosis than the TRUS-GB (30.0% vs. 13.6%, respectively, P<0.001). Additionally, 55 patients (18.3%) diagnosed with negative PCa underwent TRUS-GB alone, although csPCa could not be overlooked in 12 patients (4.7%) undergoing FUS-TB alone.
Full table
Discussion
It is still controversial whether the use of either FUS-TB or TRUS-GB alone has the ability to diagnose PCa in biopsy-naïve patients with suspicious lesions on MRI. Hansen et al. showed that the combined use of FUS-TB and TRUS-GB is significantly superior to either FUS-TB or TRUS-GB alone in detecting PCa in patients with a GS of 7–10 and a PI-RADS v2 score of 4 or 5 (P<0.001) (26). For three lesions based on the PI-RADS score, the detection rate of csPCa was lower with FUS-TB than that with combined FUS-TB and TRUS-GB (P=0.063), with no significant difference (26). Mannaerts et al. showed that the combined FUS-TB and TRUS-GB improved PCDRs from 5% to 15% when compared with TRUS-GB alone (27). A definitive diagnosis of unilateral disease was made via mpMRI in 22% of patients positive for csPCa with combined FUS-TB and TRUS-GB, whereas bilateral csPCa was detected with FUS-TB alone (27). Although TRUS-GB is highly sensitive for characterizing index lesions, it often misses the detection of secondary lesions (27). TRUS-GB did not contribute to considerable changes in the PCDR (P>0.9) or the detection rate of csPCa (P=0.67), although the PCDR and the csPCa detection rate with TRUS-GB were 51% (27 patients) and 82% (22 patients), respectively. Additionally, the detection rates of csPCa and clinically insignificant PCa with FUS-TB were 36% and 15%, respectively (28). The combined use of FUS-TB and TRUS-GB produced a 20% reduction in risk of increased GS based on final histopathology (29). Interestingly, among patients initially diagnosed with low-risk PCa via TRUS-GB, 44.3% were subsequently diagnosed with intermediate-risk PCa via FUS-TB (29). In this study, using mpMRI images as the reference standard, combined FUS-TB and TRUS-GB had a significantly higher diagnostic accuracy for csPCa than TRUS-GB alone. Moreover, higher PCDR was noted for targeted cores than for systemic cores. To date, combined FUS-TB and TRUS-GB is considered necessary for the detection of csPCa.
It is important to evaluate the necessity of PB and use noninvasive imaging to guide biopsy location (30). The prebiopsy mpMRI may have several potential advantages in localizing PCa and noninvasively assessing risk; thus, this imaging modality is now routinely used in several clinical centers (12). Since real-time TRUS also visualizes an MR-suspicious lesion, the accuracy of biopsy targeting improved and the detection rate of csPCa thereby increased (7). It is known that the accurate interpretation of TRUS images relies on the operator’s ability. However, the combined use of TRUS and mpMRI would increase their ability to visualize PCa, thereby enhancing the diagnostic accuracy of PCa. Thus, these two imaging modalities can compensate for lack of the operator’s expertise or operator-dependency (7). Conversely, csPCa lesions that were not observed on MRI may have been underestimated than those that diagnosed csPCa on MRI (13). Consequently, MRI accuracy for PCa identification may differ between different centers and even between radiologists with different experiences and interpretation techniques (13). The Prostate MRI study trial reported a sensitivity of 93% and negative predictive value of 89% when identifying csPCa using mpMRI (31). However, Johnson et al. reported that mpMRI to detect csPCa using prostatectomy specimens as a reference standard had a lower sensitivity of 63% (32). A previous systemic review assessed the diagnostic accuracy of mpMRI for the detection of csPCa and found accuracy, sensitivity, and specificity ranges of 44–87%, 58–96%, and 23–87%, respectively (33). It is therefore important to make every effort to improve the precision of interpreting mpMRI and TRUS results towards developing a clinically significant FUS-TB (7). Additionally, the radiologist and urologist are required to share information regarding the imaging and biopsy results to arrive at a final diagnosis (7).
PI-RADS plays an essential role in detecting csPCa using mpMRI in order to select appropriate candidates for PB (17). Pooled meta-analyses with random-effect models showed that the positive predictive value for csPCa was 8% with PI-RADS 2, 13% with PI-RADS 3, 40% with PI-RADS 4, and 69% with PI-RADS 5 (34). Han et al. reported that the PCDR is 0% in patients with PI-RADS 1 and 4.6% in those with PI-RADS 2 (35). In our series, patients with PI-RADS 1 or 2 underwent TRUS-GB due to high PSA. The PCDR in these patients was 14.3% (data not shown). Additionally, approximately 90% of the patients did not undergo PB because they were diagnosed with PI-RADS 1 or 2 based on mpMRI findings. Indeed, PCa was undiagnosed in 30–48% of patients as it was not visible on MRI (36). However, on the contrary, unnecessary PB was avoided in several patients with PI-RADS 1 or 2 in our series.
Our study has several limitations. First, this was a retrospective study with an inherent bias. Second, this was a nonrandomized study with no control group of patients. Third, as PB was not performed in all patients with PI-RADS v2 scores of 1 or 2, underestimation is possible. Fourth, a relatively high detection rate of csPCa was obtained in this study. Finally, in this study, we did not use prostatectomy specimens, and only focused on the correlation between mpMRI and biopsy pathology.
Conclusions
mpMRI is an emerging modality in the diagnosis, staging, and treatment planning of PCa. If suspicious tumor lesions are detected on mpMRI, the rate of diagnosis of PCa is higher with FUS-TB compared with TRUS-GB. Additionally, FUS-TB may improve risk stratification and reduce the need for repeat biopsy. Further comparative studies to identify the optimal methods for FUS-TB procedure, to evaluate cost-effectiveness, and to identify ways to avoid unnecessary PB are required.
Acknowledgments
Funding: None.
Footnote
Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://dx.doi.org/10.21037/tau-21-250
Data Sharing Statement: Available at https://dx.doi.org/10.21037/tau-21-250
Peer Review File: Available at https://dx.doi.org/10.21037/tau-21-250
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/tau-21-250). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of Chuno Kosei Hospital (R-7) and Gifu University (30-031) and informed consent was taken from all the patients.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
