Heparin modification improves the re-endothelialization and angiogenesis of decellularized kidney scaffolds through antithrombosis and anti-inflammation in vivo

Introduction

Compared with blood purification, kidney transplantation is recognized as a more effective treatment for end-stage renal disease (ESRD) in terms of long-term survival and quality of life. However, the serious imbalance between the supply and demand of donor organs has become the main bottleneck restricting the widespread implementation of kidney transplantation (1). The development of regenerative medicine and tissue engineering has brought about promising new strategies for solving the shortage of kidney transplant donors during the past few decades, one of which is the development of decellularized kidney scaffolds (DKS) (2).

Decellularized scaffolds have been studied in various organs, including the heart, liver, spleen, kidney, and pancreas. Like the decellularized scaffolds of other organs, the most prominent advantage of DKS is that the natural tissue extracellular matrices (ECMs) retain the microstructure and many irreproducible bioactive components while removing multiple antigen components maximally, which can help cell adhesion and regeneration without being rejected by the transplant recipient (2). Researchers have attempted to generate decellularized scaffolds using the kidneys of various mammals, including porcine, rat, monkey and so on (1-3), but regardless of the animal the DKS is derived from, in order to be transplanted into the body, the organ must generate enough unblocked blood vessels through seeding cells. How to achieve re-endothelialization and reduce vascular thrombosis and the inflammatory stress of transplant recipients within a reasonable length of time are common burning issues faced by various decellularized scaffolds towards practical applications. To address these problems, researchers have tried to optimize the decellularized scaffolds though various modification methods, including immobilization of heparin (4,5), sugar (6), GRGDSPC peptides (7), anti-endothelial cell (EC) antibodies (8), and stromal cell-derived factor-1 alpha loaded proteolytically degradable hydrogel (9).

Recently, heparin has received increased attention for modifying decellularized scaffolds. Heparin is widely used clinically because of its anticoagulant, anti-inflammatory, and other pharmacological properties. The study of heparin modification in DKS is in its infancy, and many functional effects are still unclear. Wang et al. (4) verified the anti-platelet adhesion effect of heparin by perfusing whole-blood into DKS and the promoting recellularization effect of heparin via whole-organ culture of cell-seeded DKS in vitro. However, the effect of heparin modification on the reendothelialization of DKS has not been explored in vivo, and the immune environment of DKS transplantation host is also an important factor affecting histocompatibility. In the present study, heparin was immobilized into DKS then activated using 1-ethyl-3-(3-dimethylaminopropyl)-carbodiimide/N-hydroxysuccinimide (EDC/NHS). Then, the DKS was characterized using histochemical and composition analysis methods, and the recellularization, angiogenesis, and immune status were assessed in vitro or in vivo (Figure 1). We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/tau-21-703).

Figure 1 Schematic of the research protocol. DKS, decellularized kidney scaffold; ECM, extracellular matrix; EDC/NHS, 1-ethyl-3-(3-dimethylaminopropyl)-carbodiimide/N-hydroxysuccinimide.

Methods

Animals and cells

Mature male Sprague Dawley (SD) rats and Balb/c nude mice were purchased from the Laboratory Animal Research Center, Tongji University. The animals were kept under specific pathogen-free (SPF) conditions, maintained on a 12-h light/dark cycle, and were given free access to standard laboratory feed and water. All animal work was approved by the Animal Ethics Committee of Shanghai Tenth People’s Hospital, in compliance with national guidelines for the care and use of animals. A protocol was prepared before the study without registration. Human umbilical vein endothelial cells (HUVECs) were obtained from the Type Culture Collection of the Chinese Academy of Sciences (Shanghai, China) and cultured in EC medium (ScienCell, USA).

Harvest and decellularization of rat kidneys

Kidneys were harvested from male SD rats weighing 300±20 g. Briefly, anesthetized rats were systemically anticoagulated with heparin, and 22 G cannulae were inserted into the renal artery and ureter and fixed with 4-0 Mersilk. Firstly, the kidney was arterially perfused in situ using phosphate buffered saline (PBS) to remove the blood. Then, the artery cannula was connected into a peristaltic pump (Masterflex, USA) to permit the flow of the perfusate, and the kidney was perfused with 1% Triton X-100/0.1% ammonium hydroxide (Sigma-Aldrich, USA) for 12 h at 1 mL/min. Finally, the kidney was perfused with PBS containing 100 U/mL penicillin/100 µg/mL streptomycin (Sigma-Aldrich, USA) and 0.0025% deoxyribonuclease 1 (DNase; Sigma-Aldrich, USA) for 24 h to clear the remaining cellular and DNA debris. Scanning electron microscope was used to verify the complete 3D microstructure of DKS.

Heparin modification of DKS

Heparin was immobilized into DKS using the method described in a previous study (10). Firstly, heparin sodium (H-4784; Sigma-aldrich, USA), with a concentration of 1 mmol/L and average molecular weight of 15 kDa, was dissolved in morpholine ethanesulfonic acid buffer with pH 6.5. Secondly, 120 mmol/L EDC and 60 mmol/L NHS were added into and activated the heparin solution for 4 h at room temperature. Then, the DKS was perfused for 4 h at 37 °C with the activated heparin solution via the perfusion system. Subsequently, the DKS was sequentially washed with Na2HPO4 for 2 h (0.1 M), NaCl 4 times in 24 h (4 M), and double distilled water 5 times in 24 h.

Characterization of heparin modification

The heparinized DKS (HEP-DKS) and the native DKS were fixed in 4% paraformaldehyde overnight at 4 °C. After washing with running water, both were embedded in paraffin, and the tissue was sliced continuously with a thickness of 5 µm. After drying the sections at 60 °C and with xylene, sections were dewaxed with xylene, dehydrated with gradient ethanol, and then dyed with a newly prepared 1% toluidine blue (TB) solution for 30 min. After washing off the dye solution, sections were dehydrated in gradient ethanol and xylene until transparent. Finally, the slides were mounted with neutral resin and images were captured under an upright microscope. Fourier-transform infrared (FTIR) spectra (Nicolet 560, USA) were used to detect the heparin sodium immobilized into the DKS as per the operating procedure.

Recellularization of DKS

HUVECs were cultured in EC medium with 5% fetal bovine serum (FBS), 1% EC growth supplement, and 1% penicillin/streptomycin solution. For re-endothelialization of the scaffolds, 2.5×10⁵/mL HUVEC suspensions were injected into native DKS and HEP-DKS through the renal artery, and the injection was repeated 2–3 times throughout the recellularization experiment. Subsequently, the cell-infused scaffolds were put in an incubator at 37 °C and 5% CO₂ for culture, the EC medium was renewed regularly, and the scaffolds were harvested for further experiments after 7–14 days.

Hematoxylin and eosin (H&E), elastic Verhöeff-Van Gieson (EVG), Sirius red, and Masson’s trichrome staining

The native rat kidney and HEP-DKS were fixed in 4% paraformaldehyde overnight at 4 °C. After rinsing with running water, they were embedded in paraffin, and the tissue was sliced continuously with a thickness of 5 µm. For H&E staining, the sections were dried at 60 °C, deparaffinized with xylene, dehydrated with gradient ethanol, and stained with eosin and hematoxylin respectively. Finally, the slides were sealed with neutral gum, and then imaged with an optical microscope. For EVG staining, the sections were dyed in Verhöeff’s solution and redyed with Van Gieson’s solution. For Sirius red staining, the sections were dyed in 0.1% Sirius red solution. For Masson’s trichrome staining, the sections were successively dyed in Mayer’s hematoxylin, acid ponceau, and aniline blue or brilliant green. In the above various dyeing methods, except for the special dyes used, the other steps were similar.

Immunohistochemistry (IHC) and immunofluorescence (IF) analysis

The tissues were prepared for IHC and IF staining according to the protocol for paraffin embedding. For IHC staining, the native rat kidney sections were incubated with primary antibodies including anti-collagen I 1:100 (ab270993, Abcam, UK), anti-collagen IV 1:100 (ab6586, Abcam, UK), and anti-fibronectin 1:100 (ab2413, Abcam, UK) at 4 °C overnight. Then, the sections were incubated with secondary biotinylated goat anti-rabbit antibodies (Solarbio, China). For IF staining, the sections of HEP-DKS and native DKS were incubated with primary antibodies including anti-CD31 (#3528, CST, USA), anti-Ki67 (#9449, CST, USA), and anti-CD206 (#24595, CST, USA) at 4 °C overnight. Then, the sections were incubated with secondary Alexa Fluor 488-conjugated goat anti-mouse/anti-rabbit antibodies 1:500 (Thermo Fisher Scientific, USA) for 1 h. Subsequently, the sections were stained with DAPI for 10 min. All the above sections were observed and imaged using an upright microscope (Leica, Germany).

In vivo implantation study

The native DKS and HEP-DKS with re-endothelialization were sectioned into 5 mm thick slices for subcutaneous implantation. Balb/c mice (n=5) were anesthetized using sodium pentobarbital solution, and one 1.5 cm incision was made in the dorsal surface where the tissue slices were implanted through suturing. The samples were harvested and analyzed using H&E staining and IF staining.

qRT-PCR analysis

Total RNA was extracted using the Trizol kit (TakaRa, Japan). In the present study, the HEP-DKS and native DKS were sliced and transplanted subcutaneously into nude mice, and were harvested after 3 weeks. Then the total RNA of harvested HEP-DKS and native DKS were respectively extracted using the Trizol kit. The qRT-PCR was performed using the RT reagent kit (TakaRa, Japan) following the protocol for the ABI Prism 7500 sequence detection system (Applied Biosystems, USA). The results were normalized using β-actin mRNA. The expression levels were analyzed using the 2^−ΔΔCt method. The primer sequences used in this study are listed in Table 1.

Statistical analysis

Graphpad Prism 8 was used for statistical analysis and graphing in this study. Student’s t-test was used to analyze normally distributed data, and the significance level was set as P<0.05.

Results

Preparation and characterization of the DKS

Isolated rat kidneys were decellularized via renal artery perfusion with 10% Triton X-100/0.1% ammonium hydroxide solution at a constant pressure of 30 mmHg (Figure 2A, time lapse images at 0, 4, 8, and 12 h). H&E staining images showed the absence of cells in the DKS compared with the native kidney (Figure 2B). The scanning electron microscopyimages indicated that the microstructure was not destroyed in the DKS (Figure 2C).

Figure 2 Arterial perfusion decellularization of rat kidneys and microstructure images. (A) Time lapse images of a freshly isolated rat kidney undergoing continuous low-flow renal arterial perfusion with 1% Triton X-100/0.1% ammonium hydroxide. (B) H&E staining showed the absence of cells and the integrity of tubular structures in the DKS compared with the native kidney (200×). (C) SEM images of the DKS exhibited no residual cells and well-preserved 3D tubular architecture compared with the native organ. SEM, scanning electron microscopy; H&E, hematoxylin and eosin.

To further determine the integrity of the remaining ECM, a series of staining analyses were carried out, including EVG, Sirius red, and Masson’s trichrome staining. The results showed that most of the collagen fiber components were preserved (Figure 3A). Moreover, the results of IHC indicated that collagen I, collagen IV, and fibronectin in the ECM were well retained (Figure 3B).

Figure 3 ECM characterization of the rat DKS. (A) EVG staining, Masson’s trichrome staining, and Sirius red staining showed most of the collagen fiber components were retained in the DKS compared with the native kidney (200×). (B) IHC of the native kidney and DKS: collagen I (left), collagen IV (middle), and fibronectin (right) (200×). ECM, extracellular matrix; DKS, decellularized kidney scaffold; EVG, Elastic Verhoeff-Van Gieson; IHC, immunohistochemistry.

Characterization of the DKS loaded with heparin

TB staining was carried out to detect the heparinization of DKS, and the results indicated that the HEP-DKS group had significant positive TB staining, while there was no obvious color change in the control group (Figure 4A). Figure 4B shows the FTIR spectra of the DKS with or without heparinization and pure heparin. The signals at approximately 1,160 and 1,747 cm⁻¹ in the spectra of the HEP-DKS showed the characteristic signals of heparin, which verified that heparin was immobilized into the ECM of DKS.

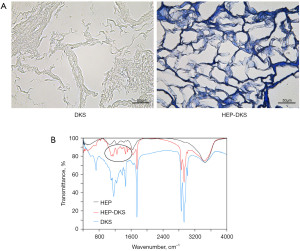

Figure 4 The characterization of the heparin immobilized DKS. (A) Histological toluidine blue staining of the native DKS and HEP-DKS. Blue staining was positive only in the HEP-DKS (400×). (B) FTIR spectra of heparin, HEP-DKS, and DKS. DKS, decellularized kidney scaffold; HEP-DKS, heparinized decellularized kidney scaffold; FTIR, Fourier-transform infrared.

Re-endothelialization of the DKS and functional characterization in vitro

After HUVECs were seeded into the native and heparin-modified DKS and cultured for 7 days, the scaffolds were harvested and further analyzed. H&E staining was performed and the results showed that HUVECs adhered to both of the scaffolds. Moreover, there were more cells covering the internal surfaces of tubular structures in the HEP-DKS group compared with the DKS group (Figure 5A). To assess the angiogenesis and proliferation capacities, IF analyses were conducted, and the results revealed that CD31 and Ki67 had a higher positive rate in HUVECs in the HEP-DKS group than in the DKS group (Figure 5B,5C).

Figure 5 Endothelial cells seeded into the native and heparin-modified DKS for 7 days. (A) H&E staining of the re-endothelialized DKS showed that more HUVECs adhered around the vascular lumen in the HEP-DKS compared with the native DKS (200×). (B,C) Immunofluorescence staining of CD31 and Ki67 was conducted to assess HUVEC proliferation after cell seeding into the DKS and HEP-DKS (400×). DKS, decellularized kidney scaffold; H&E, hematoxylin and eosin; HEP-DKS, heparinized decellularized kidney scaffold; HUVECs, human umbilical vein endothelial cells.

Angiogenesis and host inflammatory response towards scaffolds in vivo

The HEP-DKS and native DKS were sliced and transplanted subcutaneously into nude mice, and were harvested after 3 weeks. The gross appearances of implants indicated that both of the re-endothelialized scaffolds showed good histocompatibility with the subcutaneous tissue of nude mice (Figure 6A left). Both groups of scaffolds showed blood vessel formation via H&E staining, and there were more blood vessels in the HEP-DKS compared with the native DKS (Figure 6A middle and right). Angiogenesis ability was also evaluated via IF in vivo, and CD31 showed a higher positive rate in the cells of the HEP-DKS group compared with the DKS group (Figure 6B). In addition, the expression level of CD206 as the characteristic marker of M2 type macrophages was determined in both groups of scaffolds. The positive rate of CD206 in the cells of the HEP-DKS group was significantly higher than in the DKS group (Figure 6C).

Figure 6 Angiogenesis and host inflammatory response towards the DKS in vivo. (A) Left: gross appearances of implants 3 weeks post-implantation. Both of the re-endothelialized scaffolds were biocompatible. Middle: H&E staining showed more blood vessels in the HEP-DKS group on day 21. Right: blood vessel densities of the 2 groups (P <0.0001) (200×). (B) IF staining of CD31 in the nude mouse model for the native DKS and HEP-DKS on day 21. (C) IF staining of CD206 in the nude mouse model for the native DKS and HEP-DKS on day 21 after implantation (400×). DKS, decellularized kidney scaffold; H&E, hematoxylin and eosin; HEP-DKS, heparinized decellularized kidney scaffold; IF, immunofluorescence.

In order to further evaluate the inflammatory responses of the transplanted host, we extracted the total RNA from the 2 groups of nude mice with subcutaneously implanted scaffolds and performed qRT-PCR analysis. The qRT-PCR results showed that the levels of IL-1β, IL-6, and TNF-α in the HEP-DKS group were significantly lower than those in the native DKS group (Figure 7A-7C), while the expression level of IL-10 was significantly higher than that in the native DKS group (Figure 7D).

Figure 7 The expression levels of local inflammatory factors in vivo. P<0.05. DKS, decellularized kidney scaffold; HEP-DKS, heparinized decellularized kidney scaffold.

Discussion

It is estimated that chronic kidney disease (CKD) may become the fifth leading cause of death worldwide by 2040 (11). Kidney transplantation, as one of the most promising methods to reverse this projection, is limited by a shortage of donors. The ultimate goal of renal tissue engineering is to produce a transplantable substitute with equivalent renal function for clinical application. The DKS has unique advantages because of its access to the maximum retention of the ECM microstructure and the minimum residual immunogenicity (12,13). The growth factors and bioactive components contained in the ECM of DKS facilitate cell adhesion and can induce cell migration and differentiation (14). Appropriate decellularization methods can make the ECM suffer the slightest damage and retain its natural components and morphology to the greatest extent. In this study, method of 1% Triton X-100/0.1% ammonium hydroxide at 1 mL/min was used to decellularize, obtaining DKS with a transparent appearance and complete vascularity, which reduced the damage of high-strength decellularization reagents, water impact and high hydrostatic pressure to the microstructure of ECM, especially the nephron.

Unfortunately, a series of challenges have gradually emerged in in vivo experiments on acellular kidney stents, including thrombosis in the vasculature of the DKS and inflammatory responses of the transplanted host. In order to reduce the host inflammatory response, researchers have tried to optimize the decellularization scaffold from at least three aspects: first, by improving the decellularization process, to reduce the residual cells and antigen components of the scaffold. Second, by modifying certain active ingredients on the decellularized scaffold, to increase the compatibility of the decellularized scaffold and the host tissue. Third, by modifying anti-inflammatory drugs on the decellularized scaffold, to counteract the host inflammatory response. Uygun et al. (15) believed that the exposed ECM in the vasculature accounted for platelet activation and thrombosis. Based on this understanding, Wan et al. (7) cross-linked GRGDSPC peptides to acellular pancreatic scaffolds, confirming that this method can help ECs adhere to the surface of blood vessels and that ECs have antiplatelet and anticoagulant effects. In another interesting study (5), an acellular pancreatic scaffold modified with platelet-rich plasma was transplanted into rats after endothelialization. It was found that the inflammatory response of the host was significantly inhibited and induced polarization dominated by M2 macrophages, which ultimately promoted tissue angiogenesis. The authors believed that platelet-rich plasma plays an important role in this research as it contains a large number of growth factors and immunoregulatory factors. In the present study, we chose heparin sodium to modify the DKS and explored its role in anti-thrombosis and anti-inflammatory responses for DKS transplantation.

The method using EDC/NHS activation is a very efficient procedure for the immobilization of heparin to collagen (4,10,16). In our study, collagen I, collagen IV, and fibronectin were completely retained in the process of decellularization, which was strongly demonstrated by a series of characterization experiments. This is not only critical for cell adhesion and proliferation during the re-endothelialization procedure (17), but also provides sufficient attachment points for heparin modification. TB staining and FTIR spectroscopy were performed to verify the high efficiency of the EDC/NHS heparinization modification method. Heparin is a negatively charged linear polysaccharide consisting of 2 repeating disaccharide units (L-idonic acid, D-glucosamine, and type acetylglucosamine). Due to the unique structure of heparin, it can form a complex with antithrombin III to bind to activated coagulation blood factors and play a role in eliminating these clotting factors (18). The reaction speed of antithrombin III and thrombin is slow, but in the presence of heparin, the response rate can be increased thousands of times which can effectively inhibit the coagulation process, so the most well-known clinical effect of heparin is anticoagulation. Previous investigations have indicated that heparin has the potential to promote angiogenesis through modification into scaffolds (16,19,20). Wang et al. (4) initially explored the role of heparin modification in the DKS, and they verified that the presence of heparin reduces the adhesion of platelets on the scaffold via in vitro experiments, thereby resisting thrombosis and ensuring the smooth flow of regenerated blood vessels in the scaffolds. In the present study, H&E staining and Ki67 IF staining verified the adhesion and proliferation effects of heparin on HUVECs implanted in the DKS. In addition, we carried out CD31 IF staining both in vivo and in vitro, and the results strongly demonstrated the pro-angiogenesis effect of heparin on the renal scaffolds. What makes us more confident is that we visually observed the increase of regenerated blood vessels in the renal stent modified with heparin through the naked eye and H&E staining in vivo. We also believe that the anticoagulant effect of heparin plays an integral role in this process.

Although the decellularized scaffolds achieve minimal immunogenic residues, the host inflammatory response will inevitably have an effect on the re-endothelialization and vascular regeneration of the scaffolds, which has not yet been fully elucidated in previous reports (4,16,17). Macrophages are a very heterogeneous cell population that exhibit unique phenotypes and functions in the complex microenvironment of the body. Mantovani et al. (21) believe that macrophages have a series of continuous functional states, and M1 and M2 macrophages are the 2 extremes of this continuous state. M1 type macrophages participate in the positive immune response and immune surveillance by secreting pro-inflammatory cytokines or chemokines and specifically presenting antigens M2 type macrophages have only weak antigen-presenting ability, and they can down-regulate the immune response by secreting inhibitory cytokines such as IL-10 and/or TGF-β, among others, thus playing an important role in immune regulation (22). In this study, we aimed to reveal the changes in the polarity of macrophages caused by kidney scaffolds implanted subcutaneously in nude mice after a period of growth. CD206 is a relatively specific molecular marker for M2 macrophages. We detected the changes in the expression level of CD206 by IF staining, and the results confirmed that heparin modification promoted the polarization of M1 type macrophages to M2 type in the transplanted host. We further detected the changes of IL-1β, IL-6, IL-10, and TNF-α expression at the mRNA level and clarified the regulatory effect of heparin modification on the inflammatory response of the host. In addition to the anticoagulant effect of heparin, there is also evidence suggesting that it has a direct anti-inflammatory effect, which greatly expands the clinical indications of heparin, including autoimmune diseases, malignant tumors, and diffuse intravascular coagulation (23). There are many explanations for the mechanism by which heparin exerts a direct anti-inflammatory effect, but there is as yet no consensus. One explanation is that heparin binds and inhibits chemokines, as well as complement, growth, and angiogenesis factors (24), and another is that heparin can bind to adhesion mediators expressed during inflammation, including selectins, integrins, and their receptors (25). There are certain limitations in our research. We only paid attention to the influence of heparin on the host environment after the DKS was implanted into animals, which proved the anti-inflammatory effect of heparin, but the specific mechanism that initiates the immune response needs to be further verified, which is our next research plan.

Conclusions

In summary, a DKS with maximum microstructure and minimum immunogenicity was prepared by arterial infusion. With the help of the EDC/NHS activation method, heparin was efficiently modified to the collagen of the scaffolds. HUVECs could attach to the tubular structure of the scaffolds and initiate re-endothelialization. In vivo and in vitro experiments demonstrated that heparin can promote the re-endothelialization and vascular regeneration of the DKS through anticoagulation. The anti-inflammatory effect of heparin on the transplanted host was initially confirmed, and it is considered that this effect may play a non-negligible role in promoting DKS re-endothelialization and angiogenesis. The specific mechanism needs to be further clarified.

Acknowledgments

Funding: The current study was supported by the National Natural Science Foundation of China (grant No. 32070646).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/tau-21-703

Data Sharing Statement: Available at https://dx.doi.org/10.21037/tau-21-703

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/tau-21-703). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was approved by the Ethics Committee of Shanghai Tenth People’s Hospital (No. SHDSYY-2021-3647), in compliance with national guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
