Efficacy and safety of percutaneous nephrolithotomy combined with negative pressure suction in the treatment of renal calculi: a systematic review and meta-analysis

Jiao Chen1#, Xiaocong Cai2#, Gang Wang3, Xiaofang Chen4, Danni Lin3

1Department of Operating Room, The Second Affiliated Hospital of Hainan Medical University, Haikou, China; 2Department of Urology, Danzhou People’s Hospital, Danzhou, China; 3Department of Urology, Central South University Xiang Ya School of Medicine Affiliated Haikou Hospital, Haikou, China; 4Department of Anesthesiology, The Second Affiliated Hospital of Hainan Medical University, Haikou, China

Contributions: (I) Conception and design: J Chen; (II) Administrative support: X Cai; (III) Provision of study materials or patients: G Wang; (IV) Collection and assembly of data: X Cai, X Chen; (V) Data analysis and interpretation: J Chen, D Lin; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Danni Lin. Department of Urology, Central South University Xiang Ya School of Medicine Affiliated Haikou Hospital, Haikou 570208, China. Email: lindanni138@163.com.

Background: With advances in medicine, there have been more and more ways to treat renal calculi in recent years. Percutaneous nephrolithotomy (PCNL) is a safe and effective treatment. The purpose of this paper is to study the efficacy and safety of PCNL combined with negative pressure suction in the treatment of renal calculi by meta-analysis.

Methods: The PubMed, EMBASE, Cochrane Library, Chinese Journal Full-Text Database, VIP, Wanfang Science and Technology Journal Full-Text Database, and Chinese Biomedical Literature Search databases were searched for articles related to the efficacy and safety of PCNL combined with negative pressure suction in the treatment of renal calculi from the establishment of the databases to October 2021. Endnote X9 software was first used to check and eliminate the articles, and the quality of the included articles were evaluated according to the risk of bias tool of Cochrane Collaboration. Stata 15.1 software was used to record the data. A meta-analysis was performed on the stone clearance rate, operation time, postoperative complications, postoperative fever, septic shock, intrapelvic pressure, and blood loss of PCNL combined with negative pressure suction in the treatment of renal calculi. The reliability of the results was assessed by a sensitivity analysis. Egger’s linear test was used to test the publication bias of the articles.

Results: A total of 10 articles were included in the meta-analysis, and the total sample size of the study was 820. The meta-analysis showed that when PCNL combined with negative pressure suction was used to treat renal calculi, the stone clearance rate and the occurrence of septic shock of the test group did not differ significantly from that of the control group; the incidence rate of postoperative complications、the operation time, the intraoperative bleeding and the postoperative fever of the test group was significantly better than that of the control group.

Discussion: Compared to the group without negative pressure, PCNL reduces the operation time, postoperative complications, postoperative fever, septic shock, and intraoperative blood loss without increasing the risk of septic shock.

Keywords: Percutaneous nephrolithotomy (PCNL); negative pressure suction; renal calculi; meta-analysis

Submitted Nov 17, 2021. Accepted for publication Jan 04, 2022.

doi: 10.21037/tau-21-1067

Introduction

Stones can occur in multiple systems of the human body, including the urinary system and digestive system (1). The most common site for stones is the urinary system (i.e., the kidneys). Clinical manifestations of stones include hematuria, lumbar and abdominal pain, nausea and vomiting, and in severe cases, sones can lead to urinary tract obstruction, which induces urinary tract infection and can even cause renal failure, leading to death (2). With the development of endoscopic technology and the progress of lithotripsy (the primary means of treating renal calculi) equipment, percutaneous nephrolithotomy (PCNL) has become the treatment of choice for complex renal calculi represented by cast stones (3); however, intraoperative renal pelvis pressure may cause sepsis, bacteremia and postoperative fever (4). PCNL is a method of crushing and removal of stones in the pyelonephrine or upper ureteral segment by percutaneous renal channels combined with pneumatic ballistic, holmium laser, or ultrasonic lithotripsy equipment. After years of development, percutaneous nephrolithotomy continuous improvement, puncture method from X line to ultrasound guidance and CT 3D reconstruction, percutaneous kidney channel from channel to small channel to standard channel and multiple channel combination, gravel from pneumatic lithotripsy to ultrasonic lithotripsy, di laser gravel and a new generation of ultrasonic clearance lithotripsy devices with negative pressure attraction device, from tube drainage to tubeless PCNL. In recent years, with the continuous development of science and technology and the progress of ideas, many scholars have suggested the use of negative pressure suction technology in PCNL to improve the stone clearance rate, reduce the operation time, reduce surgical complications, postoperative fever, septic shock, and intraoperative blood loss. These negative pressure techniques include ultrasonic lithotripsy instruments, Li's nephroscope (5), and the negative pressure stone evacuator. At present, there have been more and more relevant reports on PCNL combined with negative pressure suction in the treatment of renal calculi, but the results differ. Thus, this paper conducted a meta-analysis of relevant studies to explore the efficacy of PCNL combined with negative pressure suction in the treatment of renal calculi and to provide clinicians with diagnosis and treatment ideas and relevant theoretical support. We present the following article in accordance with the PRISMA reporting checklist (available at https://tau.amegroups.com/article/view/10.21037/tau-21-1067/rc).

Methods

Criteria for inclusion of literature in the study

Literature type

All the included studies were randomized controlled trials (RCTs) on PCNL combined with negative pressure suction, and the languages were limited to Chinese and English.

Participants

Patients with renal calculi diagnosed by computed tomography (CT) or X-ray and confirmed by imaging studies were included in the study.

Exclusion criteria

Patients were excluded from the study if they had congenital urinary dysplasia, were aged <18 years, or had contraindications to nephroscopic lithotripsy. Studies were excluded if they were non-RCT studies (e.g., reviews, experience summaries, meta-analyses, cohort studies or case-control studies, individual or case studies), were basic studies with rats, rabbits, and other animals, or mainly examined other diseases.

Description of intervention

There were 2 groups of treatment modalities for kidney stones: (I) the experimental group, which used PCNL combined with negative pressure suction; and (II) the control group, which did not use negative pressure suction therapy.

Outcome indicators

The primary outcome indicators were the stone clearance. Different letter spacing, postoperative fever, and blood loss. The secondary outcome indicator was septic shock.

Search strategy and literature identification

The PubMed, EMBASE, Cochrane Library, Chinese Journal Full-Text Database (CNKI), VIP Journal Full-Text Database, Wanfang Science and Technology Journal Full-Text Database, and Chinese Biomedical Literature Search (CBM) databases were searched for articles on the efficacy of PCNL combined with negative pressure suction in the treatment of renal calculi from the establishment of the databases to October 2021. The English databases was searched using the keywords “Percutaneous Nephrolithotomy” and “Randomized controlled trial;” MeSH words in combination with free words were used.

Literature screening and data extraction

After the article retrieval was completed, Endnote X9 software was used for management. The automatic finding function of the software was used to find and exclude duplicate articles. Two reviewers independently screened the articles. The title abstract was read for the preliminary screening, and after any articles that did not meet the exclusion and inclusion criteria were excluded, the full text was then downloaded for further review. When the 2 reviewers’ opinions differed, disagreements were resolved by discussion or by a 3rd reviewer.

The 2 reviewers independently completed the data extraction, and the following relevant data were extracted:

  • Basic information on the article: title, author, name of publication journal, and publication time;
  • Study characteristics: the total sample size of the study, and number of groups;
  • Participant characteristics: age;
  • Intervention characteristics: the different intervention methods used for the control group and test group; and
  • Assessment of results: stone clearance rate, operation time, postoperative complications, postoperative fever, septic shock, intrapelvic pressure, and blood loss.

Bias of articles and evaluation analysis

The assessment was performed using the Cochrane Collaboration’s risk of bias tool (6). The assessment considered the generation of random sequences, allocation concealment, blindness to participants and implementers, blindness to outcome evaluators, selective reporting, and the completeness of the outcome data. The literature quality evaluation was completed independently by 2 reviewers, and if a disagreement arose, a 3rd reviewer resolved the disagreement.

Effect measurement

The binary variables (i.e., stone clearance rate, postoperative complications, postoperative fever, and septic shock) were assessed using odds ratios (ORs) and their 95% confidence intervals (CIs). The continuous variables (i.e., operation time and blood loss) were assessed using standardized mean differences (SMD) and their 95% CIs.

Methods to address data loss

If data were not provided in the article, the data were obtained by calculation if possible; if no data at all were provided, the author was contacted and the data were requested, and if the data were still not available, the article was excluded.

Statistical Analysis and heterogeneity detection

Stata15.1 was used for the analysis, and forest plots were used to represent the analysis results; I2 and Q tests were used to analyze literature heterogeneity, and I2>50% or P<0.05 was used to indicate a statistical difference in heterogeneity. If the test results showed statistical homogeneity (I2<50%), the fixed-effects model was used to combine and analyze the data. If the test results showed statistical heterogeneity (I2>50%), the heterogeneity was excluded by a subgroup analysis or sensitivity analysis according to the type of data. If heterogeneity still existed due to certain clinical homogeneity, the random-effects model was used to combine the data for analysis (7).

Publication bias analysis

The presence of publication bias was analyzed by Egger’s linear test.

Sensitivity analysis

The sensitivity analyses were performed using the Influence Analysis tool provided by stata15.1.

Results

Literature search results

A total of 4,861 articles were initially found in this search. After duplicates were removed and the remaining articles were screened, a total of 10 articles were included in the meta-analysis. Figure 1 shows the literature screening process and results.

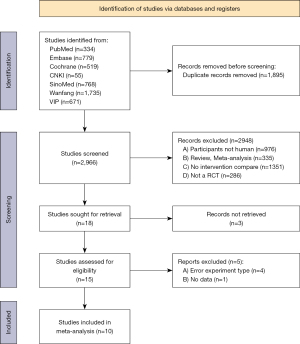

Figure 1 Literature screening flow chart.

Basic characteristics of the included articles

Ten articles (comprising a total of of 820 patients) were included in this meta-analysis. Basic information about the articles are shown in Table 1.

Table 1

Basic characteristics of the articles

Author (year) Design Age Intervention measure Sample size Stone load Outcomes index
NP Non-NP NP Non-NP NP Non-NP
Du C (8) 2010 RCT 39.3 [26–61] Negative pressure sheath 31 28 1.8–6.8 cm ⑥
El-Nahas AR (9) 2016 RCT 53.6±7.9 50.1±11.1 Ultrasound device 35 35 16,656±8,211 mm3 15,985±8,320 mm3 ②③
Gan M (10) 2016 RCT 21–72 18–14 Negative pressure sheath 52 44 2.35 cm (1.8–3.3 cm) 2.24 cm (1.6–3.1 cm) ①②⑦
Gao W (11) 2011 RCT 50.9±10.4 45.8±14.4 Ultrasound device 25 30 851±206 mm2 790±217 mm2 ①②③④⑦
Huang J (12) 2016 RCT 43.5±2.9 44.1±3.2 Negative pressure sheath 91 91 16.7±5.8 mm 15.1±6.3 mm ①②③④⑦
Wang X (13) 2014 RCT NA Negative pressure sheath 39 33 2.3 cm (1.5–4.0 cm) ①③④⑥
Wu H (14) 2021 RCT 25–57 26–57 Negative pressure sheath 34 34 3.08–5.89 cm 3.01–5.86 cm ②③⑦
Xiao C (15) 2014 RCT 45 [22–63] Negative pressure sheath 40 40 2.0×1.6 cm2–3.2×4.1 cm2 ①②③④⑤
Zhang C (16) 2013 RCT 44.9±3.2 [35–73] Ultrasound device 47 47 2.6×2.1 cm2–3.3×5.7 cm2 ①③④
Zhong D (17) 2015 RCT 19–68 Li’s kidney mirror 22 22 NA ②③④⑤

NP, negative pressure group; Non-NP, no negative pressure group; ① Stone clearance rate; ② Operation time; ③ Postoperative complications; ④ Postoperative fever; ⑤ Septic shock; ⑥ Endogenous pressure; ⑦ Amount of bleeding.

Quality assessment

According to the Cochrane Collaboration’s risk of bias tool, not all the articles adopted a good randomization method. None of the articles mentioned whether allocation concealment was performed, whether the blind method was used for subjects, whether the blind method was used for outcome evaluators, or whether selective reporting was used. The outcome indicators were complete, and none of them contained other risks of bias. Figures 2,3 show the risk of bias evaluation of the included studies.

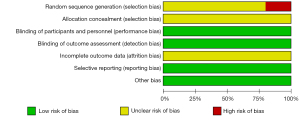

Figure 2 Risk of bias graph.

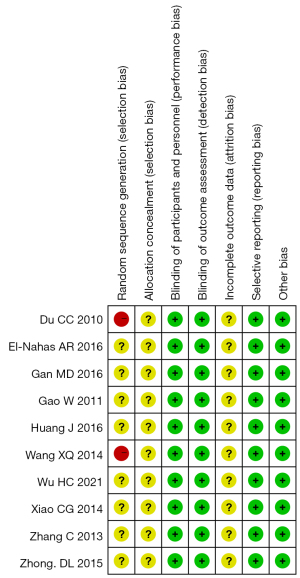

Figure 3 Risk or bias summary.

Stone clearance rate

Seven articles (8-13,15-17) mentioned the problem of the stone clearance rate of PCNL combined with negative pressure suction in the treatment of renal calculi. The meta-analysis showed that there was no significant difference in the stone clearance rate between the test group and the control group (OR =1.21, 95% CI: 0.95, 1.53; P=0.118). As I2=0.0%, the fixed-effects model was used (see Figure 4).

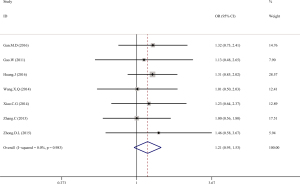

Figure 4 Pooled forest plot of the stone clearance rate results of PCNL combined with negative pressure suction in the treatment of renal calculi.

Operation time

Seven articles (9-12,14,15,17) mentioned the operation time of PCNL combined with negative pressure suction in the treatment of renal calculi. The meta-analysis showed that the operation time of the test group was significantly shorter than that of the control group (SMD =1.06, 95% CI: 0.61, 1.51; P<0.01). The results showed significant heterogeneity (I2=83.9%). After the sensitivity analysis, the articles were removed one by one, but this did not significantly reduce the heterogeneity. Thus, the random-effects model was selected (see Figures 5,6).

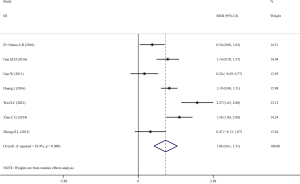

Figure 5 Pooled forest plot of the operation time results of PCNL combined with negative pressure suction in the treatment of renal calculi. PCNL, percutaneous nephrolithotomy.

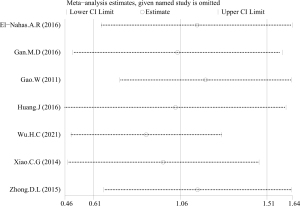

Figure 6 Sensitivity analysis.

Postoperative complications

Eight articles (9,11-17) mentioned problems related to the postoperative complications of PCNL combined with negative pressure suction in the treatment of renal calculi. The meta-analysis showed that the incidence rate of postoperative complications of the test group was significantly lower than that of the control group (OR =0.45, 95% CI: 0.30, 0.68; P<0.01). As I2=16.2%, the fixed-effects model was selected (see Figure 7).

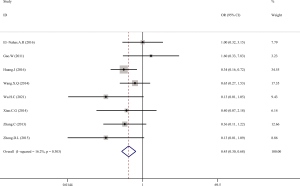

Figure 7 Forest plot of the postoperative complication results of PCNL combined with negative pressure suction in the treatment of renal calculi. PCNL, percutaneous nephrolithotomy.

Postoperative fever

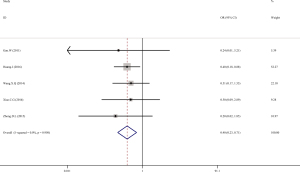

Five articles (11-13,15,17) mentioned the problem of postoperative fever of PCNL combined with negative pressure suction in the treatment of renal calculi. The meta-analysis showed that the postoperative fever of the test group was significantly better than that of the control group (OR =0.40, 95% CI: 0.23, 0.71; P=0.02). As I2=0.0%, the fixed-effects model was selected (see Figure 8).

Figure 8 Forest plot of the postoperative fever results of PCNL combined with negative pressure suction in the treatment of renal calculi. PCNL, percutaneous nephrolithotomy.

Septic shock

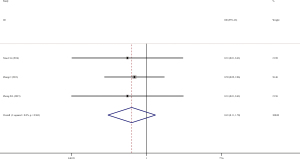

Three articles (15-17) mentioned the problem of septic shock of PCNL combined with negative pressure suction in the treatment of renal calculi. The meta-analysis showed that there was no significant difference in the occurrence of septic shock between the test group and the control group (OR =0.43, 95% CI: 0.11, 1.70; P=0.228). As I2=0.0%, the fixed-effects model was selected (see Figure 9).

Figure 9 Pooled forest plot of the septic shock results of PCNL combined with negative pressure suction in the treatment of renal calculi. PCNL, percutaneous nephrolithotomy.

Blood loss volume

Four articles (10-12,14) mentioned the problem of blood loss in PCNL combined with negative pressure suction in the treatment of renal calculi. The meta-analysis showed that the intraoperative blood loss of the test group was significantly less than that of the control group (SMD =2.42, 95% CI: 1.32, 3.52; P<0.001). As I2=93.8%, the random-effects model was selected (see Figure 10).

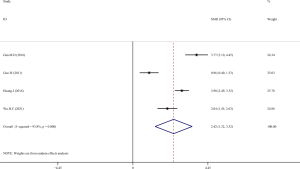

Figure 10 Pooled forest plot of the bleeding volume results of PCNL combined with negative pressure suction in the treatment of renal calculi. PCNL, percutaneous nephrolithotomy.

Test for heterogeneity

Publication bias was tested using Egger’s linear regression, and the results showed that there was no significant publication bias in any of outcome indicators except that of septic shock (see Table 2).

Table 2

Publication bias of outcome indicators

Outcomes indicators Amount Egger’s test P
Stone clearance rate 7 0.751
Operation time 7 0.910
Postoperative complications 8 0.829
Postoperative fever 5 0.491
Septic shock 3 0.006*
Amount of bleeding 4 0.926

*, P<0.05.

Discussion

The 2 indicators that best explain the difference between PCNL combined with negative pressure aspiration in the treatment of renal calculi and no negative pressure aspiration are operation time and blood loss. In the traditional treatment, it often takes a great deal of time to absorb the stone fragments, blood clots, and many floccules, which prolongs the operation time. However, a large number of reports (9-12,14,15,17) have pointed out that when PCNL is combined with negative pressure suction, the operation time can be greatly shortened and the efficiency improved. This article did not obtain a positive result in relation to the stone clearance rate. It is speculated that while an operation with a large incision is not as fast as PCNL combined with negative pressure suction, it is already a mature technique, and the removal ability of stones using this technique has reached a relatively high level; thus, there is no great difference between the two. Yu et al. (4) pointed out that negative pressure suction can remove stone fragments, floccules, and blood clots more quickly than irrigation, basket, or forceps. It has been reported in the literature (9) that without a negative pressure suction device, stones need to be flushed out more finely, which prolongs the operation time. Some scholars have pointed out that the negative pressure device can reduce the displacement of stone fragments while absorbing stones, and can also suck out the pus in the calyces at the same time (18), reducing the time required for repeated washes.

Blood loss is an indicator used to evaluate a surgical technique objectively and visually shows the blood lost during surgery. In the case of the same incision, an increase in operation time will lead to an increase in blood loss (19). The same operation time, a small incision, and a small trauma not only contribute to the reduction of blood loss in patients, but are also more conducive to the postoperative recovery of patients. Thus, regardless of controlling for any variable, the progress of technology is evident when the amount of bleeding is reduced.

The occurrence of postoperative complications is also an important indicator for evaluating a technique. Some scholars (20) point out that when the intrapelvic pressure is too high, it will damage the integrity of the epithelial layer of the renal pelvis wall, exposing the veins and lymphatic system, resulting in renal parenchyma. However, the combination of negative pressure suction during surgery can significantly reduce intrapelvic pressure (8). After continuous practice and exploration, domestic and foreign guidelines have recommended percutaneous nephrolithotomy as the first-line treatment of kidney stones greater than 2 cm (21,22). Its increasing stone clearance rate, the decreasing trauma to patients, and the decreasing incidence rate of complications, have become an irreplaceable role in the urological urinary tract stone surgery method today. Due to the insufficient number of articles included in this study, this could not be proven at present. It is hoped that more RCTs will be conducted to provide relevant theoretical support for this conjecture in the future.

Conclusions

In summary, PCNL combined with negative pressure suction in the treatment of renal calculi significantly shortens the operation time and reduces surgical complications. There was high heterogeneity in some outcome indicators in this study. It may be related to different operator techniques and the different lithotripsy equipment used. It is hoped that more high-quality, large-sample size, multicenter RCTs will be conducted in the future to confirm the correctness of the relevant conclusions.
