Diagnostic performance of MRI and US in suspicion of penile fracture

Introduction

Penile fracture (PF) is a rare urologic emergency that is characterized by a rupture of the tunica albuginea enclosing the corpora cavernosa due to blunt trauma (1,2). Fracture is typically the result of an injury during intercourse or manipulation (3), causing, in most cases, a unilateral tear of the tunica albuginea (1,4). Common clinical symptoms are hematoma, detumescence, fracture sound, and pain (4). Onomatopoetically, the sound is described as cracking or snapping (1,4).

Additionally, PF can be complicated by urethral laceration, noted clinically by urethral bleeding and urinary retention; however, absence of these symptoms does not rule out this important complication (1). Koifman et al. reported a mean intraoperative lesion size in the tunica albuginea of 1.5 cm and concomitant urethral trauma in 16% of cases (2).

The role of imaging in patients with suspected PF is controversial with some authors assuming that PF is mainly a clinical diagnosis and should be treated surgically without delay (2-4). Others report good diagnostic accuracies for magnetic resonance imaging (MRI) and ultrasound (US) (5,6). Next to the detection of clinically false positive cases, presurgical imaging can reduce the surgical trauma: since most PFs are located in the proximal part of the penis, many cases are accessible via a minimal penoscrotal surgical approach, which is much less traumatic than complete degloving–if the lesion is diagnosed and characterized presurgically by imaging (7). Another important role of imaging in suspected PF is to rule out an injury of the dorsal vein, which can present with similar symptoms as PF but does not require emergency surgery (2).

In a systematic review, Falcone et al. conclude that US plays an important role in confirming the diagnosis and better defining the lesion site (1). While MRI showed higher accuracy than US, it was found to be hampered by low availability in emergency situations (1).

Therefore, the aim of this study is to directly compare the diagnostic accuracy of MRI and US when PF is suspected and to report typical imaging findings in a single-center setting.

We present the following article in accordance with the STARD reporting checklist (available at https://tau.amegroups.com/article/view/10.21037/tau-21-957/rc).

Methods

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics committee of Charité-Universitätsmedizin Berlin (No. EA2/307/20) and individual consent for this retrospective analysis was waived.

Study population

A systematic retrospective review of MRI and US examinations conducted for suspected PF was performed. Inclusion criteria were: (I) patient age ≥18 years, (II) examination between 2000 and 2021, (III) information available on patient’s history and clinical presentation, and (IV) confirmed final diagnosis retrieved from surgeon’s report or discharge letter based on the International Classification of Diseases (ICD). The exclusion criterion was penile imaging requested for workup when another condition such as induratio penis plastica (IPP) was suspected.

Clinical records of the consecutive study patients were screened to extract information on the underlying mechanism of penile injury as well as symptoms and clinical findings including noticed sound, pain, hematoma, swelling, or penile deviation.

Imaging analysis

All patients underwent imaging in our hospital using standardized protocols. MRI protocols comprised T2-weighted (w) standard 2D sequences and T1-w unenhanced 2D sequences in transverse and—based on positioning of the penis—sagittal or coronal plane. Contrast medium was administered as needed. In the patients assessed by US, a focused penile US with a high-frequency linear transducer and adequate presets available at the time of examination was performed.

All written diagnostic reports and stored images (if reports were inconclusive) were retrospectively analyzed by an experienced uroradiologist (MHL) blinded to the final diagnosis. For both MRI and US, the following findings were extracted from the detailed reports: penile hematoma, tear of the tunica albuginea enclosing the corpus cavernosum with localization (side and shaft segment), and involvement of the urethra or corpus spongiosum. A representative case of a PF depicted on MRI with visible hematoma on US (but no tunica tear) is shown in Figure 1. If no dedicated US examination was performed, urologic point-of-care US (POCUS) was used for comparative analysis of diagnostic accuracy.

Figure 1 Confirmed diagnosis of penile fracture. (A,B) Nonenhanced MR T1w (A) and T2w (B) images in sagittal orientation reveal a focal tear (arrow) in the tunica albuginea of the right corpus cavernosum; (C) the tunica albuginea rupture is also visible in transverse orientation (white circle) in T2w image with surrounding local hematoma (H); (D) US demonstrates the local hematoma (H), while no clear tunica rupture was identified by the investigator. US, ultrasound.

The reported imaging-based diagnosis was recorded and compared with the intraoperative findings as gold standard for analysis of diagnostic accuracy. In patients not operated on, the final clinical diagnosis was used instead.

Additionally, a sub-analysis of the diagnostic accuracies including only the patients who received surgery was performed.

Statistical analysis

Continuous variables are reported as median and interquartile range (IQR). The reports of imaging findings and corresponding surgical and clinical reports of each patient were analyzed retrospectively for diagnostic accuracy by testing sensitivity, specificity, positive predictive value (PPV), and negative predictive value (NPV). The chi² test was used to test cross tables of visible penile hematoma against final PF diagnosis.

All statistical analyses were performed using the SPSS software package (IBM Corp. Released 2019. IBM SPSS Statistics for Windows, Version 26.0. Armonk, NY, USA: IBM Corp.).

Results

Study population

Overall, 88 patients were included in the study. Sixty-nine patients (78.4%) were examined by MRI, and 25 patients (36.2%) had a contrast-enhanced MRI examination. A dedicated penile US examination was performed in 31 (35.2%) patients. Twelve study patients (13.6%) underwent both MRI and US. In the subgroup without dedicated penile US, 17 patients underwent a urological POCUS examination, which was used for diagnostic accuracy analysis.

In 46 of the patients presenting with suspected PF (52.3%), the diagnosis was confirmed as outlined above. Overall, 32 (36.4%) patients were treated surgically. In two of them (6.3%), no tear of the tunica albuginea of the corpora cavernosa was diagnosed intraoperatively. The most frequent clinical symptom was penile hematoma in 65 patients (73.9%), followed by penile swelling (53 patients, 60.2%). The baseline characteristics of the study population are compiled in Table 1.

A total of 46 patients did not meet the inclusion criteria and were excluded–23 because clinical documentation was not available, 17 because they had other penile conditions, three because they were aged <18 years, two due to an inconclusive final clinical diagnosis, and one patient because he appeared to have recurrent PF and was already included with his first PF. The patient flow is illustrated in Figure 2.

Figure 2 Flow of patients. The diagram illustrates the flow of patients who have been screened for study participation. MRI, magnetic resonance imaging; PF, penile fracture; US, ultrasound.

Imaging analysis

Results for imaging findings are compiled in Table 2. As described in the methods section, we focused on penile hematoma, tear of the tunica albuginea of the corpora cavernosa and involvement of the corpus spongiosum. Overall, both modalities detected penile hematoma disproportionately often compared with the frequency of PFs.

Only one case of PF detected by MRI was bilateral. Right side unilateral PF was more common both in MRI and US, with 73.0% and 80.0% respectively. Urethral injury was detected by US in 3 cases (9.7%) and by MRI in 11 cases (15.9%), respectively (Table 2).

No hematoma was found in 1/14 (7.1%) finally positive cases (PF) in US and 2/37 (5.4%) finally positive cases in MRI. Conversely, in the negative subgroup (no PF), penile hematoma was demonstrated in 12/17 (70.6%) patients who underwent US and 13/32 (40.6%) patients who underwent MRI. Therefore, chi² tests of cross tables contrasting visibility of penile hematoma in imaging and final diagnosis revealed penile hematoma not to be a statistically significant indirect feature of PF in US (P=0.118) but in MRI (P<0.001).

Diagnostic accuracy

As described above, the present study defines PF as rupture of the tunica albuginea of the corpus cavernosum. Based on the imaging reports, PF was diagnosed in 37 patients by MRI and 10 patients by US. Matched with the diagnostic gold standard, MRI missed 3/37 (8.1%) cases of confirmed PF and US missed 4/14 (28.6%) cases, corresponding to an overall sensitivity of 91.9% (95% CI: 78.7–97.2 %) for MRI and 71.4% (95% CI: 45.4–88.3%) for US.

In the non-PF subgroup, MRI misclassified 3/32 (9.4%) cases, whereas there was no false-positive case in the smaller US subgroup. The resulting specificities were 90.6% (95% CI: 75.8–96.8%) for MRI and 100.0% (95% CI: 81.6–100.0%) for US.

Moreover, urological POCUS, though performed in by far the smallest subgroup, also had high specificity of 100% (95% CI: 67.6–100.0%) but missed 7/9 PFs, resulting in a very low sensitivity of 22.2% (95% CI: 6.3–54.7%).

Diagnostic accuracies are compiled in Table 3. Subgroup analysis of the diagnostic performance of MRI with 44 cases vs. contrast-enhanced MRI (ceMRI) with 25 cases revealed no benefit of contrast medium administration. Sensitivities and specificities were 92.0% vs. 91.7% and 94.7% vs. 84.6% for MRI vs. ceMRI, respectively.

Including operated patients (n=32) only, MRI (n=23) reached sensitivity of 95.5% (21 of 22 patients) and misdiagnosed one negative case. US (n=11) reached sensitivity of 70.0% (7 of 10 patients) and correctly diagnosed one negative case.

Comparing the final diagnosis of US and MRI in patients (n=12) who underwent both imaging modalities, MRI and US showed congruence in 7 of 7 cases which were negatively reported in MRI, whereas in 2 of 5 patients who were reported to have PF in MRI, US described no present PF (accordance of 60.0%).

An example of a proven PF with accurate imaging-based localization of the tear is presented in Figure 3.

Figure 3 Confirmed penile fracture correctly identified by US and nonenhanced MRI. (A) High-resolution US with an 18-MHz linear transducer shows discontinuity of the hyperechogenic tunica albuginea of the right corpus cavernosum (white circle) with local hematoma (H); (B) in different scan plane (transverse view), US reveals large surrounding hematoma (H) and blurred corpus spongiosum (S); (C) nonenhanced MRI (high-resolution T2w image in coronal orientation) reveals clear tunica rupture (white arrow) and hypointense spot in the right corpus cavernosum and involvement of the corpus spongiosum (green arrow), which was confirmed during surgical repair. US, ultrasound; MRI, magnetic resonance imaging.

Discussion

The major results of the present study can be summarized as follows: MRI has the highest sensitivity for diagnosing a PF and detecting the focal tear without much improvement in diagnostic accuracy after contrast agent administration. US has high specificity for ruling out a PF.

In an MRI study of 38 patients published in 2017, Saglam et al. found 100% sensitivity and 87.5% specificity—therefore showing a higher sensitivity than in our patients (6). The prospective study of Zare Mehrjardi et al. reported a detection rate of 100% of the surgically proven tears of the tunica albugina in 25 patients and thus confirmed the high diagnostic accuracy published by Saglam et al. (5,6). Another investigation evaluating MRI of 28 patients with presumed PF also showed a high sensitivity of 100% and a moderate specificity of 77.8% (8). Therefore, external validity can be as assumed to be sufficient, although we found lower sensitivity than in previous studies.

Fewer data are available on the diagnostic accuracy of US. Zare Mehrjardi et al. reported a detection rate of 88% for US, which was lower than that of MRI (5). At the same time, the authors reported a lower confidence of preoperative lesion mapping (5). In a small group of 12 patients, Martí de Gracia et al. found 83% sensitivity and 100% specificity for US using intraoperative findings as the gold standard (9). Both studies show basically the same magnitude of diagnostic accuracy as in our study.

Generally, many authors emphasize the importance of prompt surgery for PF (2-4,10). In a meta-analysis, Amer et al. found that surgery significantly improved outcome compared with conservative therapy (10). Furthermore, noted that the majority of authors of the included primary studies did not use any imaging at all, underlining the importance of the clinical examination (10).

If clinicians decide that imaging is needed before treatment, US should be preferred to MRI because it shortens the delay to subsequent surgery. With its high specificity, US is a reasonable option in patients with a low likelihood of PF. Also, US can be performed at the bedside and in emergency units, making it suitable for less mobile patients. Finally, US is much more widely available than MRI, especially in smaller hospitals or when patients present at night.

Imaging is helpful if the diagnosis is unclear, as also discussed by Phillips et al. (11). Another benefit of imaging is that it may reduce the surgical trauma by exactly locating the lesion and thus allowing less extensive surgical exploration and additionally, degloving regularly includes circumcision (7). This approach was for instance discussed in a case report of Rosi et al. (12). However, penile degloving remains the standard surgical procedure—as supported by evidence from a study of eight patients with PFs reported by Kamdar et al. (13). The authors emphasize the superior intraoperative overview of all spongy bodies with the option of intraoperative injection of coloring agent for the detection of initially overlooked lesions (13).

If imaging is performed, contrast medium should be used cautiously. Our findings suggest that there is no benefit of a contrast-enhanced series compared with nonenhanced imaging. Moreover, Zare Mehrjardi et al. accomplished precise mapping of the tear using standardized nonenhanced MRI (5). Furthermore, additional contrast-enhanced series account for a large proportion of the total costs of such an MRI examination, as for example reported in a recently published study investigating the imaging of renal cysts (14).

Contrast-enhanced US (CEUS) is mainly used in abdominal imaging–and only one case report of CEUS in PF exists so far (15). The authors emphasize advantages like more precise surgical planning and less extensive incision (15). Another case report describes a “microbubble-enhanced retrograde ultrasound urethrogram” that confirmed injury of the urethra avoiding radiation exposure of retrograde urethrography which is a standard procedure in inconclusive cases (16). Finally, both the intravenous or urethral application of ultrasound contrast agent (UCA) has not got achieved evidence so far.

The patients in our study were examined and reported by board-certified radiologists without subspecialization in urogenital radiology, which might have contributed to a lower diagnostic accuracy (especially on US), but, on the other hand, reflects the real-life situation when a patient with suspected PF seeks medical attention. Additionally, it must be taken into account that US technology has made dramatic advances, especially in terms of spatial resolution, since the first patients included in our retrospective analysis were examined. Therefore, state-of-the-art high-end US systems may achieve higher diagnostic accuracy than found in our study. Further improvement might be achieved by using multiparametric US (17). Possible benefits of techniques like US elastography in patients with suspected PF remain to be investigated.

Overall, US technologies used in clinical routine during the period under investigation here already turned out to be highly specific (Table 3) and are therefore suitable for ruling out PF. Of note, demonstration of hematoma by US did not turn out to be a statistically significant feature of PF. Therefore, a feature that could be helpful in selecting patients who should have an MRI for confirmation and surgery planning remains to be identified. Alternatively, future research might show that, with the image quality achieved using high-end US equipment, indirect imaging signs of PF are redundant.

A drawback of US is that a massive hematoma can mask the tunica albuginea tear, which may thus be overlooked (11). In such cases, a larger penetration depth must be chosen–vitiating the highest possible spatial resolution. This might alter the appearance of the tunica albuginea border as illustrated in Figure 1. Such appearances must be differentiated from scrotal hematoma, which can be massive, as illustrated in Figure 4. If there is good visualization of critical structures by US, many decisive diagnoses of course can be made. For instance, intracavernous hematoma has a typical US appearance, as outlined by Cozzi et al. Initially, these hematomas are hyperechoic and reshape as cystic formations over time (18). Hematoma can be treated conservatively as long as no rupture of the tunica albuginea is present (18).

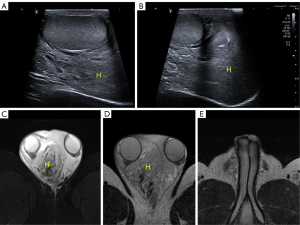

Figure 4 Patient with suspected penile fracture and large scrotal hematoma. (A,B) US reveals no tunica albuginea rupture (not shown) but large scrotal hematoma (H); (C-E) clear identification of an acute scrotal hematoma (H) on T1w (C) and T2w images (D) without a rupture of the tunica albuginea (E, representative image). US, ultrasound.

Limitations

A major limitation of our study is its retrospective design, although this is a rational approach when investigating a rare pathology such as PF. Explained by retrospective character of the investigation, missing clinical data caused more patient exclusions—nevertheless, we prefer more restrictive inclusion criteria to produce more valuable data.

Conclusions

Our findings show MRI to be clearly more sensitive than US in diagnosing PF and detecting the focal tear. Nevertheless, US rules out PF with high specificity.
