An experimental model of the epithelial to mesenchymal transition and pro-fibrogenesis in urothelial cells related to bladder pain syndrome/interstitial cystitis

Introduction

Bladder pain syndrome/interstitial cystitis (BPS/IC) is a non-infective disease with clinical presentations of chronic pelvic pain, urinary frequency, and nocturia, and which mainly occurs in women (1,2). As the typical symptoms of BPS/IC cause intense physical and mental suffering and lead to restricted social and daily life, efforts made to understand and treat BPS/IC have largely focused on pain and urinary dysfunction (3,4). The treatments are varied and target the symptoms patients find most bothersome, but none are universally effective (3).

Bladder fibrosis is common in BPS/IC and is induced by chronic inflammation (5). The severity of bladder fibrosis is one of the important reasons about the increased urinary frequency and decreased bladder capacity (6), and therefore treatment of bladder tissue fibrosis may be a promising therapeutic target for BPS/IC (7). The epithelial to mesenchymal transition (EMT) and pro-fibrogenesis phenotype in bladder urothelial cells of BPS/IC plays an important role in the bladder fibrosis of this disease (8). However, studies of urothelial EMT and bladder fibrosis of BPS/IC are limited. Lack of a urothelial cell model is one reason.

Suitable in vitro models are needed to investigate the urothelial EMT and pro-fibrogenesis phenotype in BPS/IC. In this study, we explored the EMT and pro-fibrogenesis phenotype in bladder tissue of BPS/IC patients, and attempted to establish an EMT and pro-fibrogenesis phenotype model by chronic inflammatory stimulation of bladder urothelial cells. We present the following article in accordance with the MDAR reporting checklist (available at https://dx.doi.org/10.21037/tau-21-392).

Methods

Ethics approval and consent to participate

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This research was approved by the Ethics Committee of Ruijin Hospital, Shanghai Jiao Tong University School of Medicine (No. 202134). Informed consent was obtained from all individual participants included in the study.

Bladder tissue acquisition

BPS/IC patients were diagnosed according to the updated American Urological Association criteria (9). For patients (four females were retrospective collected, aged 37–62 years; three non-Hunner ICs and one Hunner IC; bladder capacities between 200–380 mL; all patients did not previously receive IC-related treatment) who had undergone cystoscopy and bladder biopsies in the past 2 years, the bladder tissue samples were fixed in 10% buffered formalin and embedded in paraffin. Histological examination had previously diagnosed BPS/IC and the remaining tissue was used in this study. Normal bladder tissue was obtained from patients who underwent transurethral resection of prostate or benign bladder tumors.

Histopathologic staining

The embedded bladder tissues were cut into 5 µm thick sections and stained with hematoxylin and eosin (HE) or Masson’s trichrome. Immunohistochemistry (IHC) was performed to assess protein expression as described previously (10) with the following primary antibodies: anti-E-cadherin (Cell Signaling Technology, #14472, USA; 1:200), anti-vimentin (Cell Signaling Technology, #5741; 1:200); anti-TNF-α (Proteintech, #60291-1-lg, USA; 1:500); anti-TNF receptor 1 (Proteintech, #60192-1-lg, USA; 1:200), and anti-collagen I (Abcam, #ab138492, USA; 1:500). Positive staining was revealed with Vector DAB Substrate Kit (Vector Laboratories, #SK-4100, USA) and nuclei were counterstained with hematoxylin.

Cell culture and stimulation

The SV-HUC-1 cell line was purchased from Fuheng Biology Company (Shanghai, China). Cell line authentication by STR profiling showed complete matching to SV-HUC-1 in ATCC (No. CRL-9520). The culturing conditions included F12K medium (Gibco, #21127022, USA) containing 10% fetal bovine serum (Gibco, #10099, Australia).

SV-HUC-1 cells were cultured with serum-free F12K medium containing 2, 10, or 50 ng/mL of tumor necrosis factor (TNF)-α (Invitrogen, #RTNFAI, USA). SV-HUC-1 cells cultured with only serum-free F12K served as a control. The medium was refreshed every 24 h. Cells were harvested after 24, 48, and 72 h of culture.

Invasion assay

A 24-well Boyden chamber with an 8-µm pore size polycarbonate membrane (Millipore, USA) was used for the invasion assay. A total of 1×10⁵ pretreated cells were resuspended in 100 µL serum-free F12K medium and added to the upper compartment of the chamber. The lower compartment was filled with 600 µL of F12K medium supplemented with 10% FBS. After incubation for 48 h at 37 °C, the SV-HUC-1 cells remaining inside the upper chamber were wiped off with a cotton-tipped swab. Cells that adhered to lower membranes were stained with 0.1% crystal violet after fixation with methanol and imaged under a light microscope (Eclipse E600, Nikon, Japan).

Migration array

When cells in different groups were grown to near 100% confluence in six-well plates, a micropipette tip was used to make a wound. Then, cells were incubated with serum-free F12K medium containing 0, 2, 10, or 50 ng/mL TNF-α. Wound healing was observed after 72 h. A phase-contrast microscope (Olympus, Japan) was used to take photographs. The Fiji version of ImageJ software (https://fiji.sc/wiki/index.php/Fiji) was used to analyze wound closure.

Western blotting

Different groups of SV-HUC-1 cells were harvested, washed with ice-cold phosphate-buffered saline (PBS), and lysed in radioimmunoprecipitation buffer (TNT Bio, #AKR-190, China). A bicinchoninic acid protein assay (Pierce, #23252, Rockford, USA) was used to assess the concentrations of the precipitated proteins in the cell lysates. Then, each sample was diluted to equal concentrations, boiled for 5 min, and separated by 8% SDS-PAGE. Afterwards, the proteins were transferred to PVDF membrane and 5% milk was used to block the membrane at room temperature for 1 h. The membranes were incubated overnight at 4 °C with the following primary antibodies (1:1,000): vimentin (Cell Signaling Technology, #5741), E-cadherin (Cell Signaling Technology, #14472), collagen I (Abcam, #ab138492; 1:500), Slug (Cell Signaling Technology, #9585), Smad2 (Proteintech, #12570-1-AP, USA), phospho-Smad2 (Cell Signaling Technology, #18338, USA); TGF-β (Cell Signaling Technology, #3709, USA); and β-actin (Medical & Biological Laboratories, #M177-3, Japan). Following three washes with PBS + Tween-20, membranes were incubated with the corresponding secondary antibodies for 1 h at room temperature followed by washing and staining. Protein bands were detected using the Immobilon western chemiluminescence HRP substrate kit (Takara, #T7101, China). β-actin served as the loading control.

Enzyme-linked immunosorbent assay (ELISA)

Supernatants were collected from the four groups after the third 24 h of culture. The levels of interleukin (IL)-1β, IL-6, IL-8, and GF-β in the supernatant were determined using ELISA kits (R&D Systems, #DLB50, #D6050, #D8000C, #DB100B, UK) according to the manufacturer’s instructions. Each sample was measured in triplicate with a microplate reader (Bio-Rad, USA).

Statistical analysis

All experiments were performed in triplicate and results are presented as the mean ± standard error of the mean. Analysis of variance (ANOVA) with post-hoc Tukey’s test for multiple comparisons was performed using IBM SPSS Statistics 23 (IBM Corp., Armonk, NY, USA). Graphs were generated using GraphPad Prism 6 (GraphPad Software, California, USA). P<0.05 was considered statistically significant.

Results

Bladder tissue of BPS/IC showed obvious urothelial EMT changes and pro-fibrotic phenotype

Previous studies have shown that fibrosis and urothelial EMT changes occur in the bladder tissue of BPS/IC (5,8); our histopathologic results confirmed these phenomena. As shown in Figure 1, HE staining showed obvious mucosal edema, perivascular leukocyte infiltration, and petechial hemorrhage in bladder tissue of BPS/IC compared with normal bladder tissue. Normal bladder tissue showed hypodense thin collagen fibers in the submucosa by Masson staining. High density crude collagen fibers were found in the mucosa and submucosa of BPS/IC bladder tissue. High-expression of TNF-α and TNF receptor were also found in the bladder of BPS/IC compared to that in normal bladder. E-cadherin and vimentin were used as epithelial and mesenchymal markers, respectively (11). Normal bladder exhibited high expression of E-cadherin and micro-expression of vimentin in urothelial cells. By contrast, BPS/IC bladder showed reduced expression of E-cadherin but high expression of vimentin in urothelial cells. Extracellular matrix (ECM) deposition is common in fibrotic diseases, and excessive collagen I formation is regarded as the classic pro-fibrogenesis phenotype (12-14). IHC staining showed excessive formation of collagen I in urothelial cells of BPS/IC compared with those in the normal bladder. These results demonstrated that TNF-α played an important role in the bladder of BPS/IC, and that BPS/IC urothelial cells presented typical EMT changes and a pro-fibrogenesis phenotype.

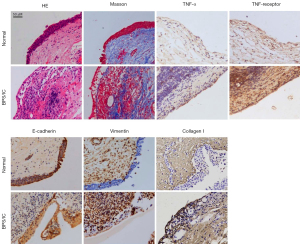

Figure 1 Histopathologic results of bladder tissues in BPS/IC and normal patients including HE, Masson, vimentin, E-cadherin, TNF-α, and collagen I. Compared with normal bladder tissue, that of BPS/IC patients showed obvious mucosal edema and perivascular leukocyte infiltration (HE), overexpression of collagen fibers (Masson), high-expression of E-cadherin and TNF-α receptor, micro-expression of vimentin, and collagen I deposition. BPS/IC, bladder pain syndrome/interstitial cystitis; TNF-α, tumor necrosis factor α; HE, hematoxylin and eosin.

Chronic inflammation induced the EMT in SV-HUC-1 cells

TNF-α at 10 ng/mL is widely used as an inflammatory stimulator in experimental cell models (15-17). To explore the effects of different concentrations of TNF-α, 2, 10, and 50 ng/mL TNF-α were tested in our study, which presented in Figure 2. As Figure 2A, SV-HUC-1 cells treated with 10 or 50 ng/mL TNF-α for 72 h showed significant morphological changes, from a round epithelial shaped to a spindle-like mesenchymal form, while cells treated with 2 ng/mL TNF-α showed slight changes in morphology compared with the control. In Figure 2A,2C, Transwell assays displayed cell invasive ability was greatest following treatment with 10 ng/mL TNF-α (10 vs. 50 ng/mL, P=0.023; 10 vs. 2 ng/mL, P<0.001; 10 vs. 0 ng/mL, P<0.001) while invasion was gradually reduced following treatment with 50, 2, and 0 ng/mL TNF-α (50 vs. 2 ng/mL, P<0.001; 50 vs. 0 ng/mL, P<0.001; 2 vs. 0 ng/mL, P=0.557). In Figure 2B,2D, SV-HUC-1 migratory ability was significantly enhanced in the 10 and 50 ng/mL TNF-α groups compared to that in the control (10 vs. 0 ng/mL, P=0.014; 50 vs. 0 ng/mL, P=0.044). SV-HUC-1 cells treated with 2 ng/mL TNF-α showed no difference in migratory ability compared to the control group (P=0.654).

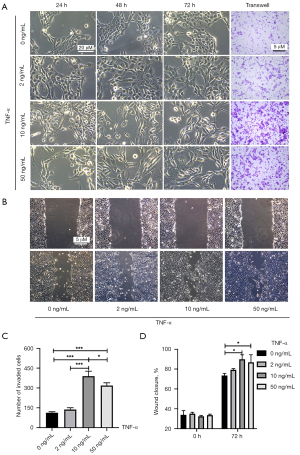

Figure 2 Morphological and behavioral changes of SV-HUC-1 cells treated with different concentrations of TNF-α. (A) Morphological changes of SV-HUC-1 cells with 0, 2, 10, or 50 ng/mL TNF-α treatment after 24, 48, and 72 h of culture. Transwell assay showed the invasion capacity changes of SV-HUC-1 cells treated with 0, 2, 10, or 50 ng/mL TNF-α after 48 h of culture. (B) Migratory capacity changes of SV-HUC-1 cells treated with 0, 2, 10, or 50 ng/mL TNF-α after 72 h of culture. (C) Statistical analysis of Transwell assay. (D) Statistical analysis of migration array. ***, P<0.001; *, P<0.05 (analyzed using Tukey’s multiple comparisons test, n=3 per group). TNF-α, tumor necrosis factor α.

As shown in Figure 3, SV-HUC-1 cells treated with 2 ng/mL TNF-α showed a moderate increase in vimentin expression compared with the control group with increasing time, but the differences were not significant. SV-HUC-1 cells treated with 10 and 50 ng/mL TNF-α showed increased expression of vimentin compared with control cells after the second 24 h of culture (10 vs. 0 ng/mL, P=0.020; 50 vs. 0 ng/mL, P=0.044) and the third 24 h of culture (10 vs. 0 ng/mL, P=0.009; 50 vs. 0 ng/mL, P=0.006), and there was no difference between themselves. SV-HUC-1 cells treated with 2 ng/mL TNF-α showed similar E-cadherin expression as the control cells, whereas SV-HUC-1 cells treated with 10 or 50 ng/mL TNF-α showed less E-cadherin expression after the second 24 h of culture (10 vs. 0 ng/mL, P=0.002; 10 vs. 2 ng/mL, P=0.016; 50 vs. 0 ng/mL, P=0.002; 50 vs. 2 ng/mL, P=0.023) and the third 24 h of culture (10 vs. 0 ng/mL, P=0.011; 10 vs. 2 ng/mL, P=0.015; 50 vs. 0 ng/mL, P=0.025; 50 vs. 2 ng/mL, P=0.036), but no difference between themselves. These data suggested that sustained TNF-α stimulation could induce the EMT in SV-HUC-1 cells.

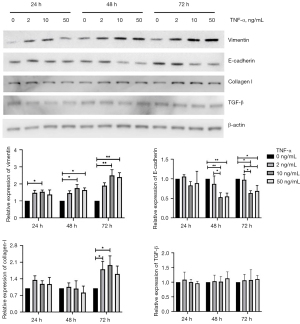

Figure 3 Changes in vimentin, E-cadherin, collagen I, and TGF-β expression in SV-HUC-1 cells treated with different concentrations of TNF-α. SV-HUC-1 cells were treated with 0, 2, 10, or 50 ng/mL TNF-α. After 24, 48, and 72 h of culture, western blotting was used to assess the levels of vimentin, E-cadherin, collagen I, TGF-β, and β-actin. Semiquantitative analysis is also presented. **, P<0.01; *, P<0.05 (analyzed using Tukey’s multiple comparisons test, n=3 per group). TNF-α, tumor necrosis factor α.

Chronic inflammation induced a pro-fibrogenesis phenotype in SV-HUC-1 cells

The pro-fibrogenesis phenotype was assessed by excessive collagen formation and pro-fibrotic cytokine production. As presented in Figure 3, all groups treated with TNF-α showed increased production of collagen I with increasing time, and groups treated with 2 or 10 ng/mL TNF-α showed significantly increased collagen I production compared with the other two groups at the third 24 h of culture (2 vs. 0 ng/mL, P=0.045; 10 vs. 0 ng/mL, P=0.019). Interestingly, SV-HUC-1 cells treated with 50 ng/mL TNF-α showed no statistical difference compared to control cells, suggesting that only the lower concentration of TNF-α could increase collagen I production. TGF-β is a major inducer of the EMT in epithelial cells and of tissue fibrosis (18). However, as presented in Figure 3, all groups treated with TNF-α showed decreased production of TGF-β with increasing time with no difference among them. IL-1β, IL-6, and IL-8 are considered pro-fibrotic cytokines (19-22); we thus investigated the concentration of each cytokine at the end of the third 24 h of culture. As presented in Figure 4, no IL-1β and low TGF-β production were observed in SV-HUC-1 cells before and after TNF-α treatment. However, SV-HUC-1 cells treated with 10 or 50 ng/mL TNF-α exhibited high levels of IL-6 compared with control cells (10 vs. 0 ng/mL, P<0.001; 50 vs. 0 ng/mL, P<0.001) and with the group treated with 2 ng/mL TNF-α (10 vs. 2 ng/mL, P<0.001; 50 vs. 2 ng/mL, P=0.003). SV-HUC-1 cells treated with 10 or 50 ng/mL TNF-α also showed high levels of IL-8 compared control cells (10 vs. 0 ng/mL, P<0.001; 50 vs. 0 ng/mL, P<0.001) and with the group treated with 2 ng/mL TNF-α (10 vs. 2 ng/mL, P=0.002; 50 vs. 2 ng/mL, P=0.004). These results indicated that TNF-α treatment could induce the pro-fibrogenesis phenotype including increased ECM deposition, as well as high levels of IL-6 and IL-8 in urothelial cells.

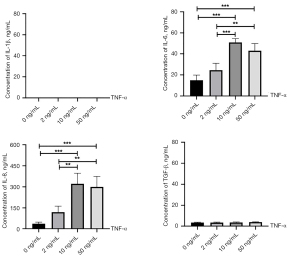

Figure 4 Changes in IL-1β, IL-6, IL-8, and TGF-β secretion in urothelial cells treated with different concentrations of TNF-α. SV-HUC-1 cells were treated with 0, 2, 10, or 50 ng/mL TNF-α. After the third 24 h of culture, ELISA was used to detect the concentrations of IL-1β, IL-6, IL-8, and TGF-β in the supernatant. ***, P<0.001; **, P<0.01 (analyzed using Tukey’s multiple comparisons test, n=3 per group). TNF-α, tumor necrosis factor α.

The Slug and Smad pathways are involved in the EMT and pro-fibrogenesis phenotype in SV-HUC-1 cells

Slug and Smad are two classic pathways associated with the EMT and fibrosis (23,24). As shown in Figure 5, expression of Slug was significantly increased in cells treated with 10 or 50 ng/mL compared with control cells or the group treated with 2 ng/mL after the second 24 h of culture (10 vs. 0 ng/mL, P=0.037; 50 vs. 0 ng/mL, P=0.003; 50 vs. 2 ng/mL, P=0.019) and third 24 h of culture (10 vs. 0 ng/mL, P=0.016; 10 vs. 2 ng/mL, P=0.048; 50 vs. 0 ng/mL, P=0.004; 50 vs. 2 ng/mL, P=0.010), but there was no statistical difference between these two groups. Cells treated with 2 ng/mL TNF-α did not show any change in the Slug pathway. These results suggest TNF-α induction of the Slug pathway is linearly correlated with the concentration of TNF-α from 0 to 50 ng/mL. Smad2 is a key protein in the classic Smad pathway, where phospho-Smad2 is the active form. Expression of Smad2 in cells treated with 2 and 10 ng/mL was higher than in the control after the second 24 h of culture (2 vs. 0 ng/mL, P=0.047; 10 vs. 0 ng/mL, P<0.001) and the third 24 h of culture (2 vs. 0 ng/mL, P<0.001; 10 vs. 0 ng/mL, P<0.001). Expression of Smad2 in cells treated with 10 ng/mL was the highest of the three TNF-α-treated groups after the second 24 h of culture (10 vs. 2 ng/mL, P=0.046; 10 vs. 50 ng/mL, P=0.042) and third 24 h of culture (10 vs. 2 ng/mL, P=0.041; 10 vs. 50 ng/mL, P=0.024). Expression of phospho-Smad2 in cells treated with 2 and 10 ng/mL was higher than in control cells after the second 24 h (2 vs. 0 ng/mL, P=0.018; 2 vs. 10 ng/mL, P=0.025; 10 vs. 0 ng/mL, P<0.001) and third 24 h of culture (2 vs. 0 ng/mL, P=0.021; 10 vs. 0 ng/mL, P<0.001). Expression of phospho-Smad2 in cells treated with 10 ng/mL was the highest of the three TNF-α-treated groups after the second 24 h of culture (10 vs. 2 ng/mL, P=0.025; 10 vs. 50 ng/mL, P=0.341) and third 24 h of culture (10 vs. 2 ng/mL, P=0.002; 10 vs. 50 ng/mL, P=0.049). These results suggest the Slug and Smad pathways are involved in TNF-α-induced EMT and pro-fibrogenesis phenotype in urothelial cells. A lower concentration of TNF-α was more likely to activate the Smad pathway, and a higher concentration of TNF-α activated the Slug pathway.

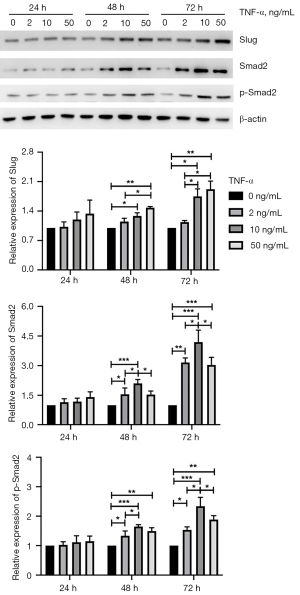

Figure 5 Changes in Slug and Smad2 expression in SV-HUC-1 cells treated with different concentrations of TNF-α. SV-HUC-1 cells were treated with 0, 2, 10, or 50 ng/mL TNF-α. After 24, 48, and 72 h of culture, western blotting was used to assess the levels of Slug, Smad2, phospho-Smad2, and β-actin. Semiquantitative analysis is also presented. ***, P<0.001; **, P<0.01; *, P<0.05 (analyzed using Tukey’s multiple comparisons test, n=3 per group). TNF-α, tumor necrosis factor α.

Discussion

This study suggests that increased TNF-α production and TNF receptor expression, EMT, and a pro-fibrogenesis phenotype occur in bladder urothelial cells of BPS/IC; this phenomenon could be reproduced by sustained TNF-α stimulation of SV-HUC-1 cells, which could be useful as an experimental EMT and pro-fibrogenesis model in urothelial cells resembling BPS/IC. A concentration of 10 ng/mL TNF-α was necessary to induce EMT changes and the pro-fibrogenesis phenotype simultaneously. We also found that different concentrations of TNF-α could induce different phenotypes; this supported the notion that minor inflammatory stimulation induced the pro-fibrogenesis phenotype and severe inflammatory stimulation was more likely to produce significant EMT changes. This could explain the different clinical characteristics in non-Hunner and Hunner type BPS/IC; different levels of activation of the Slug and Smad pathways may underlie this phenomenon.

The precise etiology of BPS/IC is not clearly understood (3). Bladder epithelium barrier defects and local inflammation are two widely accepted classic mechanisms of BPS/IC (25,26). Bladder fibrosis is also common in BPS/IC (5-7). However, there is no clear theory to connect these aspects. Numerous studies have shown an association between inflammation and the EMT (11), the EMT and fibrosis (27), and inflammation and fibrosis (28). Based on our study and previous reports, we propose a comprehensive hypothesis of the inflammation, EMT, and fibrosis in BPS/IC in Figure 6. Long-term and chronic inflammatory stimulation induced EMT changes in urothelial cells. As morphology of urothelial cells changed and migratory capacity increased, the bladder epithelium barrier was damaged. This could increase permeability of the bladder to urinary cations, resulting in diffusion of potassium into bladder tissue and the induction of symptoms at a relatively early stage. EMT urothelial cells may invade into the submucosa and muscular layer of the bladder. In this process, EMT urothelial cells continue to produce ECM. Moreover, pro-fibrosis cytokines such as IL-6 and IL-8 are highly secreted by urothelial cells, which have also been shown to be present in increased concentrations in the serum of BPS/IC patients (29). These cytokines induced ECM deposition in mesenchymal cells and fibroblasts, and promoted the production of pro-fibrosis cytokines such TGF-β by immune cells. These results support the hypothesis that chronic inflammation can induce the urothelial EMT and a pro-fibrogenesis phenotype in BPS/IC.

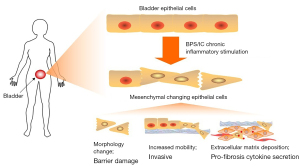

Figure 6 Hypothesis of the mechanism of inflammation, EMT, and fibrosis in the BPS/IC bladder. EMT, epithelial to mesenchymal transition; BPS/IC, bladder pain syndrome/interstitial cystitis.

As researchers developed a more profound understanding of BPS/IC, two different classifications, non-Hunner or Hunner type BPS/IC, were proposed according to clinical characteristics (6,26). Non-Hunner type BPS/IC exhibits more obvious fibrosis, whereas Hunner-type BPS/IC shows severe inflammation and urothelial denudation (6,7). It was impressive that our study showed that 2 or 10 ng/mL TNF-α could induce urothelial cells to produce excessive collagen I, but no statistical difference was found between the 0 and 50 ng/mL TNF-α groups. Moreover, 2 ng/mL TNF-α had no effect on the EMT, suggesting that, in urothelial cells, lower inflammatory stimulation induced the pro-fibrogenesis phenotype, moderate inflammatory stimulation induced both the pro-fibrogenesis phenotype and the EMT, and higher inflammatory stimulation induced significant EMT changes. Some Hunner-type BPS/IC patients show inflammation as well as fibrosis in the bladder, indicating there is no international consensus on the clinical phenotypes of non-Hunner and Hunner type BPS/IC (30). However, this could be explained by the results of our study as moderate inflammatory stimulation (e.g., 10 ng/mL TNF-α) could induce EMT changes and ECM deposition in SV-HUC-1 cells. In Hunner type BPS/IC, when the bladder undergoes severe inflammation, it is subjected to different degrees of inflammation for a long period of time. Hunner type BPS/IC displays various histological phenomena. While our TNF-α induced urothelial EMT and pro-fibrogenesis phenotype model is consistent with the clinical characteristics of BPS/IC, the cause of this phenomenon remains unclear, although it may be related to different activation of the Slug and Smad pathways.

Slug is a member of the Snail family of transcriptional factors, and is known to play an important role in the EMT and fibrogenesis (23,31). The Smad pathway is associated with the EMT and fibrogenesis, and is mostly induced by TGF-β (14,32). In this study, TNF-α activated Slug and Smad2 in urothelial cells and induced the EMT and pro-fibrogenesis phenotype. It was interesting that, after 72 h of culture with different concentrations of TNF-α, Slug was activated most obviously with 50 ng/mL TNF-α, while Smad2 and phospho-Smad2 were activated most obviously at 10 ng/mL. However, 2 ng/mL TNF-α was the only concentration to induce activation of the Smad2 pathway with statistical significance, suggesting that although TNF-α could stimulate Slug and Smad signaling, the concentration of TNF-α influenced the level of activity. Although the Slug and Smad pathways are both linked to the EMT and pro-fibrogenic phenotype, the Smad pathway may have a greater pro-fibrogenesis effect while the Slug pathway was more likely to induce the EMT in urothelial cells. Further research is warranted to confirm this hypothesis.

TGF-β is the most famous cytokine in tissue fibrosis formation (18). However, in the present study, there was no obvious change in TGF-β production. However, we cannot conclude that TGF-β has no effect on the EMT and fibrogenesis in the TNF-α-induced BPS/IC cell model. Co-activation exists between TNF-α and TGF-β as TNF-α activates Smad signaling through TGF-β receptor clustering (33). Smad2 plays an important role in TGF-β-induced Smad signaling (18). Our study showed Smad2 was activated in the TNF-α-induced BPS/IC cell model, which could be due to co-activation between TNF-α and TGF-β as Smad2 was increased until the second 24 h of TNF-α culture. Evidence of co-activation of TNF-α and TGF-β in BPS/IC is rare; more studies are needed to reveal the association of TNF-α and TGF-β in the urothelium.

There were some limitations of our study. We assessed the effects of three concentrations of TNF-α in urothelial cells and determined 10 ng/mL to be an effective concentration. However, its underlying mechanism is still unclear. Vimentin and E-cadherin were assessed to evaluate EMT changes, and the production of three pro-fibrogenesis cytokines and collagen I was used to represent ECM deposition. Activation of Slug and Smad signaling, two classic EMT and fibrosis pathways, was used to assess the BPS/IC cell model. However, more comprehensive indexes should be considered in the future to investigate this model and to determine the underlying mechanism of fibrosis in BPS/IC.

Acknowledgments

Funding: This research was supported by the General Programs of the National Natural Science Foundation of China (No. 81970658), the General Programs of the Shanghai Science and Technology Commission (19ZR1432300) and the Youth Program of Shanghai Ruijin Hospital North (2020ZY06).

Footnote

Reporting Checklist: The authors have completed the MDAR reporting checklist. Available at https://dx.doi.org/10.21037/tau-21-392

Data Sharing Statement: Available at https://dx.doi.org/10.21037/tau-21-392

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/tau-21-392). The authors have no conflicts of interest to declare except the funding, of which the funders had no role in this study.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This research was approved by the Ethics Committee of Ruijin Hospital, Shanghai Jiao Tong University School of Medicine (No. 202134). Informed consent was obtained from all individual participants included in the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. van de Merwe JP, Nordling J, Bouchelouche P, et al. Diagnostic criteria, classification, and nomenclature for painful bladder syndrome/interstitial cystitis: an ESSIC proposal. Eur Urol 2008;53:60-7. [Crossref] [PubMed]
2. Colaco M, Evans R. Current guidelines in the management of interstitial cystitis. Transl Androl Urol 2015;4:677-83. [PubMed]
3. Colemeadow J, Sahai A, Malde S. Clinical Management of Bladder Pain Syndrome/Interstitial Cystitis: A Review on Current Recommendations and Emerging Treatment Options. Res Rep Urol 2020;12:331-43. [Crossref] [PubMed]
4. Pape J, Falconi G, De Mattos Lourenco TR, et al. Variations in bladder pain syndrome/interstitial cystitis (IC) definitions, pathogenesis, diagnostics and treatment: a systematic review and evaluation of national and international guidelines. Int Urogynecol J 2019;30:1795-805. [Crossref] [PubMed]
5. Grover S, Srivastava A, Lee R, et al. Role of inflammation in bladder function and interstitial cystitis. Ther Adv Urol 2011;3:19-33. [Crossref] [PubMed]
6. Kim A, Han JY, Ryu CM, et al. Histopathological characteristics of interstitial cystitis/bladder pain syndrome without Hunner lesion. Histopathology 2017;71:415-24. [Crossref] [PubMed]
7. Choi D, Han JY, Shin JH, et al. Downregulation of WNT11 is associated with bladder tissue fibrosis in patients with interstitial cystitis/bladder pain syndrome without Hunner lesion. Sci Rep 2018;8:9782. [Crossref] [PubMed]
8. Lv JW, Wen W, Jiang C, et al. Inhibition of microRNA-214 promotes epithelial-mesenchymal transition process and induces interstitial cystitis in postmenopausal women by upregulating Mfn2. Exp Mol Med 2017;49:e357 [Crossref] [PubMed]
9. Hanno PM, Erickson D, Moldwin R, et al. Diagnosis and treatment of interstitial cystitis/bladder pain syndrome: AUA guideline amendment. J Urol 2015;193:1545-53. [Crossref] [PubMed]
10. Jin XW, Liu BK, Zhang X, et al. Establishment of a Novel Autoimmune Experimental Model of Bladder Pain Syndrome/Interstitial Cystitis in C57BL/6 Mice. Inflammation 2017;40:861-70. [Crossref] [PubMed]
11. Suarez-Carmona M, Lesage J, Cataldo D, et al. EMT and inflammation: inseparable actors of cancer progression. Mol Oncol 2017;11:805-23. [Crossref] [PubMed]
12. Rosenbloom J, Macarak E, Piera-Velazquez S, et al. Human Fibrotic Diseases: Current Challenges in Fibrosis Research. Methods Mol Biol 2017;1627:1-23. [Crossref] [PubMed]
13. Fry CH, Kitney DG, Paniker J, et al. Fibrosis and the bladder, implications for function ICI-RS 2017. Neurourol Urodyn 2018;37:S7-S12. [Crossref] [PubMed]
14. Zhang Q, Chang X, Wang H, et al. TGF-β1 mediated Smad signaling pathway and EMT in hepatic fibrosis induced by Nano NiO in vivo and in vitro. Environ Toxicol 2020;35:419-29. [Crossref] [PubMed]
15. Gulluoglu S, Tuysuz EC, Sahin M, et al. The role of TNF-α in chordoma progression and inflammatory pathways. Cell Oncol (Dordr) 2019;42:663-77. [Crossref] [PubMed]
16. Wu ST, Sun GH, Hsu CY, et al. Tumor necrosis factor-α induces epithelial-mesenchymal transition of renal cell carcinoma cells via a nuclear factor kappa B-independent mechanism. Exp Biol Med (Maywood) 2011;236:1022-9. [Crossref] [PubMed]
17. Chuang MJ, Sun KH, Tang SJ, et al. Tumor-derived tumor necrosis factor-alpha promotes progression and epithelial-mesenchymal transition in renal cell carcinoma cells. Cancer Sci 2008;99:905-13. [Crossref] [PubMed]
18. Meng XM, Nikolic-Paterson DJ, Lan HY. TGF-β: the master regulator of fibrosis. Nat Rev Nephrol 2016;12:325-38. [Crossref] [PubMed]
19. Chen W, Yuan H, Cao W, et al. Blocking interleukin-6 trans-signaling protects against renal fibrosis by suppressing STAT3 activation. Theranostics 2019;9:3980-91. [Crossref] [PubMed]
20. Fielding CA, Jones GW, McLoughlin RM, et al. Interleukin-6 signaling drives fibrosis in unresolved inflammation. Immunity 2014;40:40-50. [Crossref] [PubMed]
21. Meier RPH, Meyer J, Montanari E, et al. Interleukin-1 Receptor Antagonist Modulates Liver Inflammation and Fibrosis in Mice in a Model-Dependent Manner. Int J Mol Sci 2019;20:1295. [Crossref] [PubMed]
22. Oh SY, Kim YH, Kang MK, et al. Aesculetin Attenuates Alveolar Injury and Fibrosis Induced by Close Contact of Alveolar Epithelial Cells with Blood-Derived Macrophages via IL-8 Signaling. Int J Mol Sci 2020;21:5518. [Crossref] [PubMed]
23. Fang CY, Hsia SM, Hsieh PL, et al. Slug mediates myofibroblastic differentiation to promote fibrogenesis in buccal mucosa. J Cell Physiol 2019;234:6721-30. [Crossref] [PubMed]
24. Liu JC, Wang F, Xie ML, et al. Osthole inhibits the expressions of collagen I and III through Smad signaling pathway after treatment with TGF-β1 in mouse cardiac fibroblasts. Int J Cardiol 2017;228:388-93. [Crossref] [PubMed]
25. Parsons CL. The role of the urinary epithelium in the pathogenesis of interstitial cystitis/prostatitis/urethritis. Urology 2007;69:9-16. [Crossref] [PubMed]
26. Homma Y, Ueda T, Tomoe H, et al. Clinical guidelines for interstitial cystitis and hypersensitive bladder updated in 2015. Int J Urol 2016;23:542-9. [Crossref] [PubMed]
27. Feng YL, Chen DQ, Vaziri ND, et al. Small molecule inhibitors of epithelial-mesenchymal transition for the treatment of cancer and fibrosis. Med Res Rev 2020;40:54-78. [Crossref] [PubMed]
28. Mack M. Inflammation and fibrosis. Matrix Biol 2018;68-69:106-21. [Crossref] [PubMed]
29. Jiang YH, Peng CH, Liu HT, et al. Increased pro-inflammatory cytokines, C-reactive protein and nerve growth factor expressions in serum of patients with interstitial cystitis/bladder pain syndrome. PLoS One 2013;8:e76779 [Crossref] [PubMed]
30. Whitmore KE, Fall M, Sengiku A, et al. Hunner lesion versus non-Hunner lesion interstitial cystitis/bladder pain syndrome. Int J Urol 2019;26:26-34. [Crossref] [PubMed]
31. Ye X, Tam WL, Shibue T, et al. Distinct EMT programs control normal mammary stem cells and tumour-initiating cells. Nature 2015;525:256-60. [Crossref] [PubMed]
32. Derynck R, Zhang YE. Smad-dependent and Smad-independent pathways in TGF-beta family signalling. Nature 2003;425:577-84. [Crossref] [PubMed]
33. Takahashi E, Nagano O, Ishimoto T, et al. Tumor necrosis factor-alpha regulates transforming growth factor-beta-dependent epithelial-mesenchymal transition by promoting hyaluronan-CD44-moesin interaction. J Biol Chem 2010;285:4060-73. [Crossref] [PubMed]
